Hybrid Control System
INSPECTION1. INSPECT IGCT RELAY

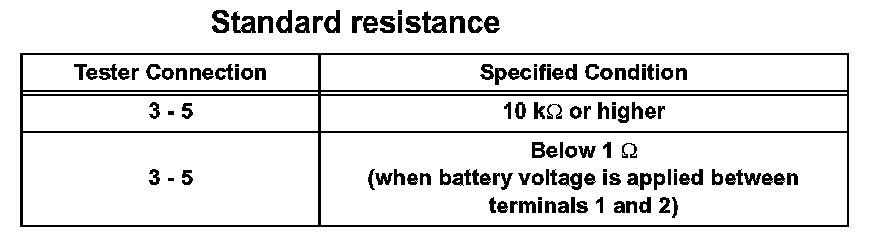

a. Check the resistance.

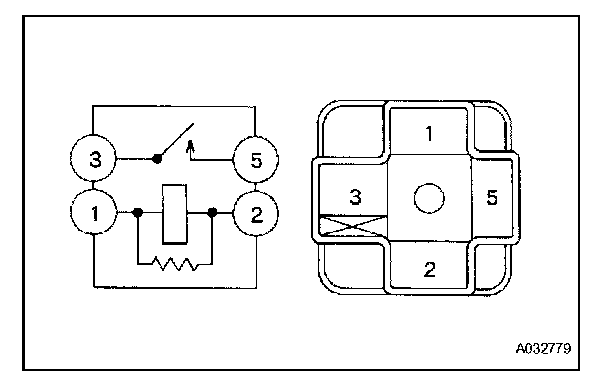

1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the relay.
1. INSPECT IGCT RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the relay.
