EFI Relay

INSPECTION

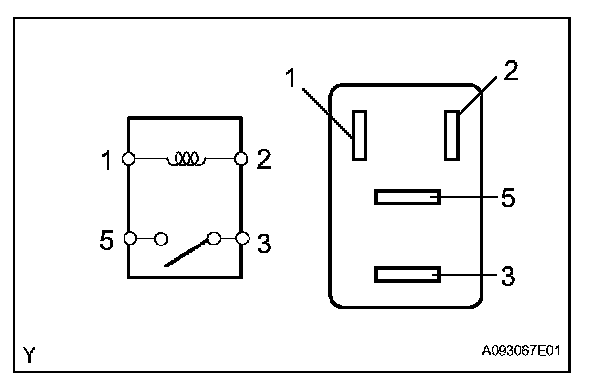

INSPECT RELAY (Marking: EFI, A/F)




a. Remove the EFI relay from the engine room J/B.
b. Remove the A/F relay from the engine room R/B No. 2.

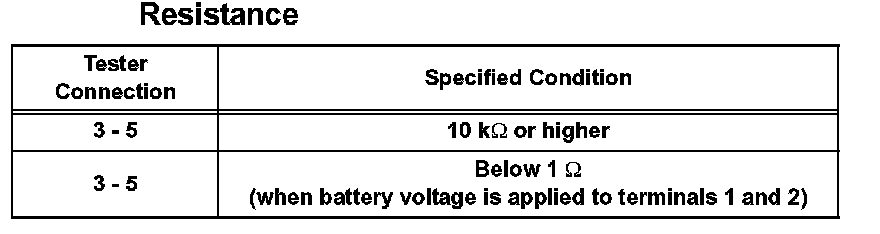

c. Measure the resistance of the relay.

If the result is not as specified, replace the relay.
