Suspension Control Module

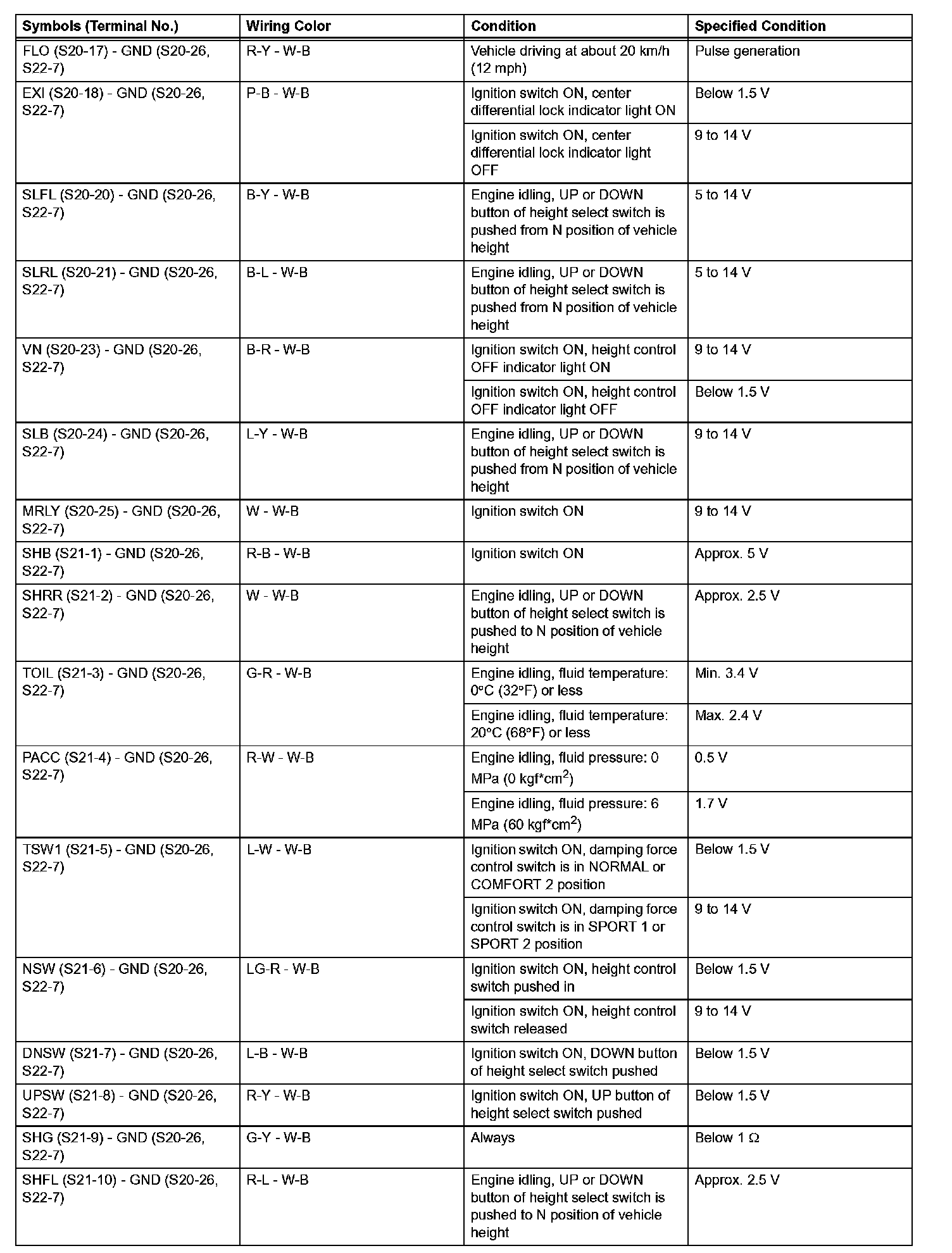

Check Suspension Control ECU:

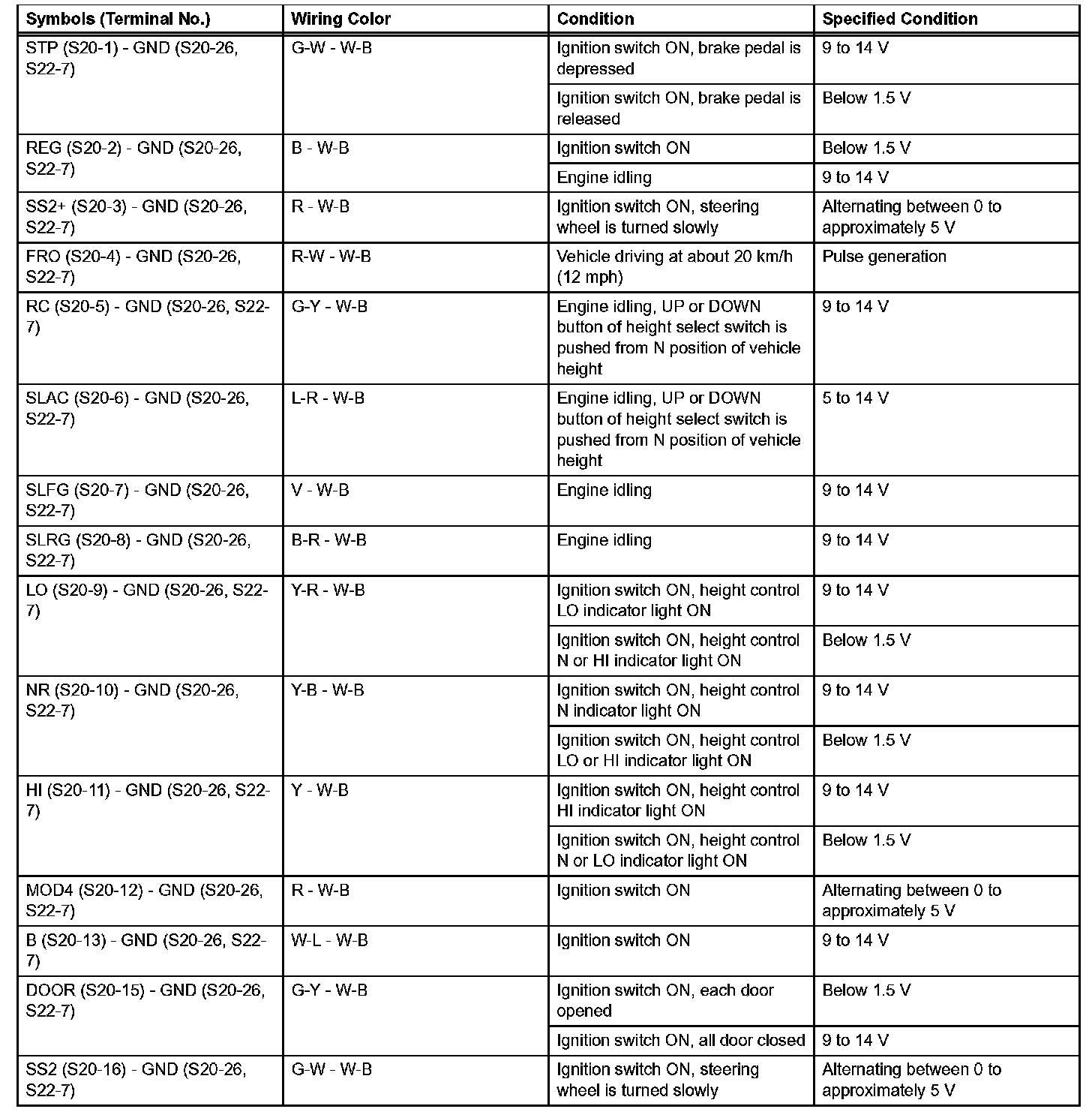

Check Suspension Control ECU:

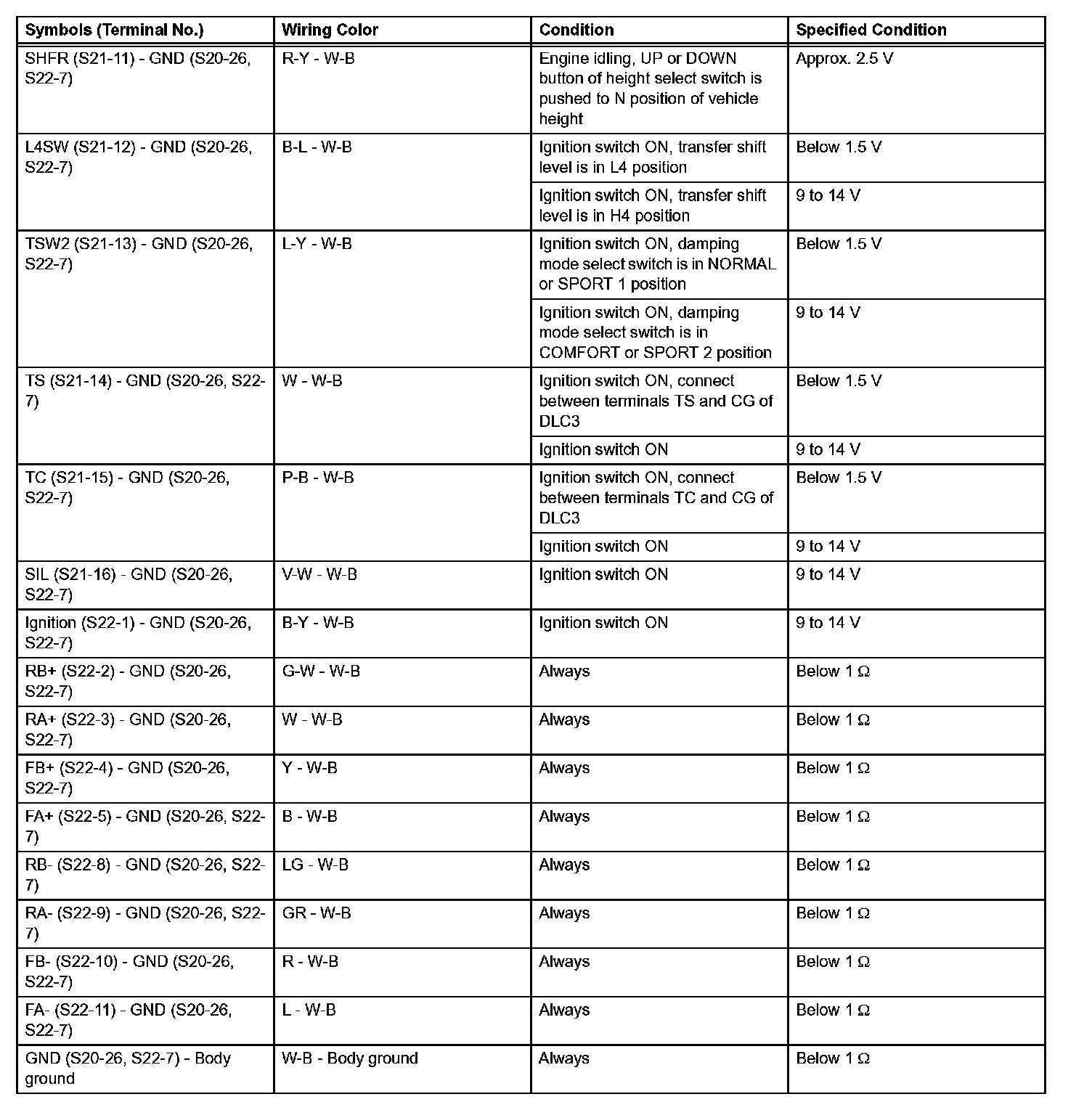

Check Suspension Control ECU:




Check Suspension Control ECU:





TERMINALS OF ECU
