Locations
>>
Connector Locations
Connector Locations

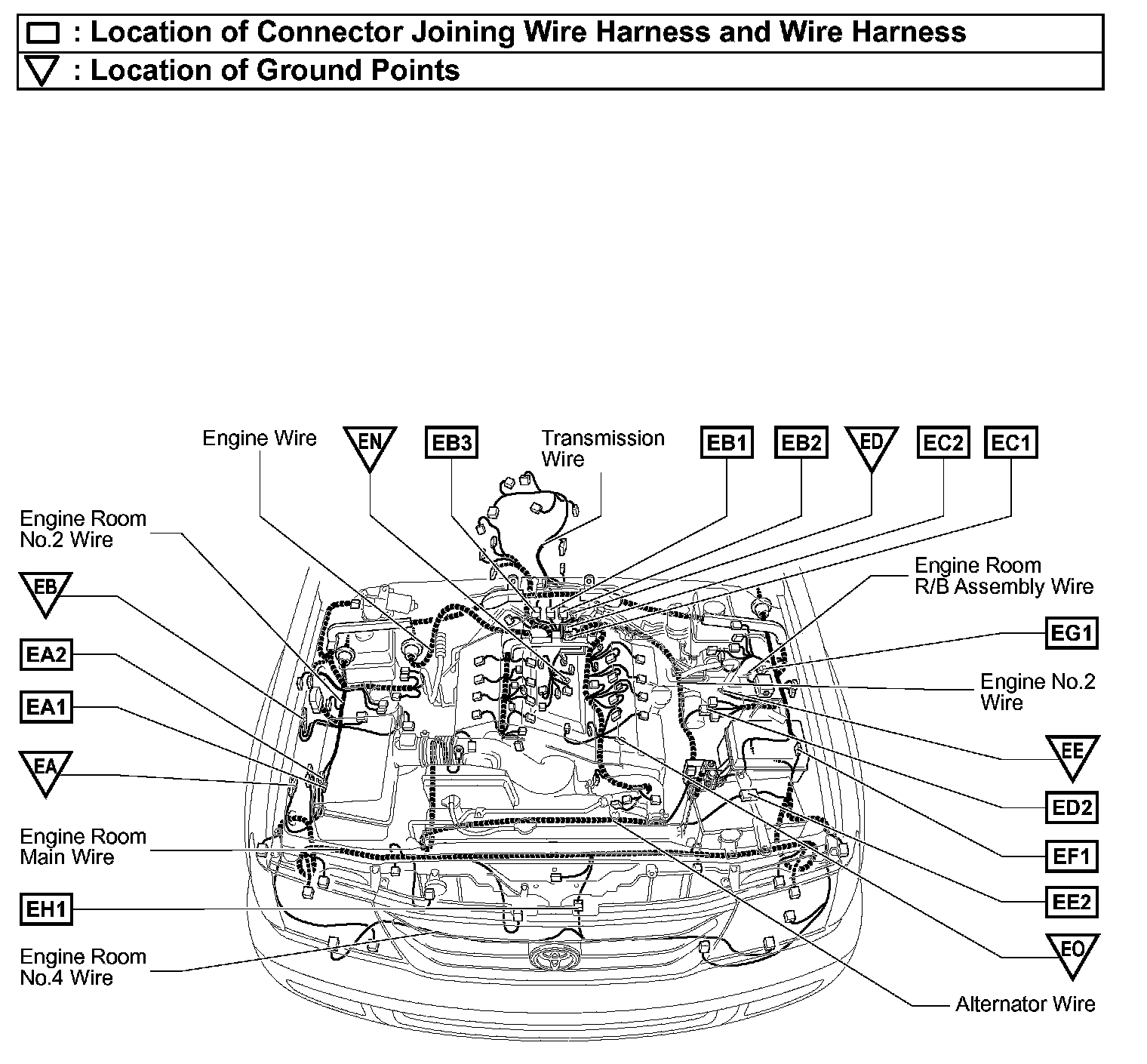

EA1 - EH1, EA - EO:

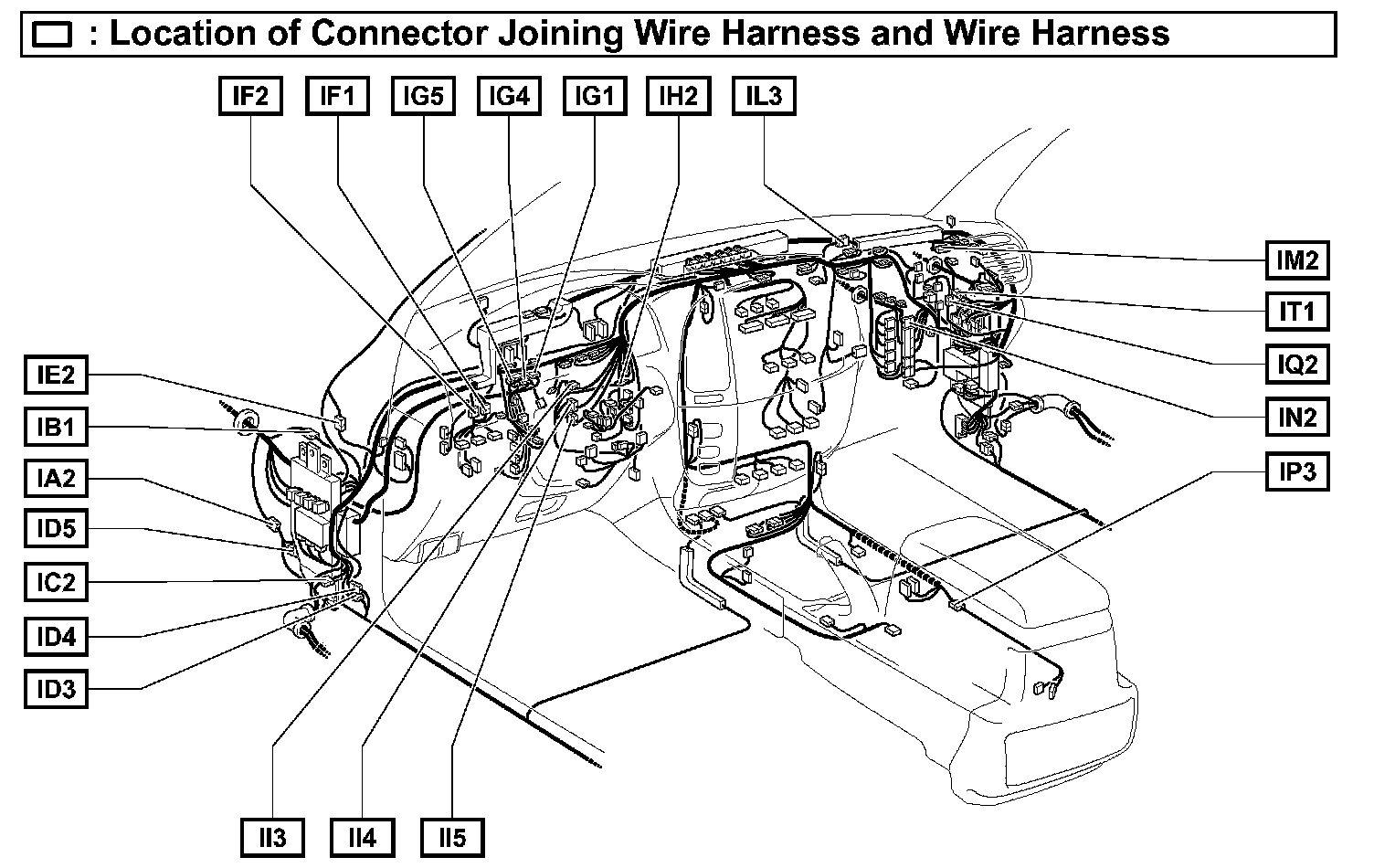

IA2 - IT1:

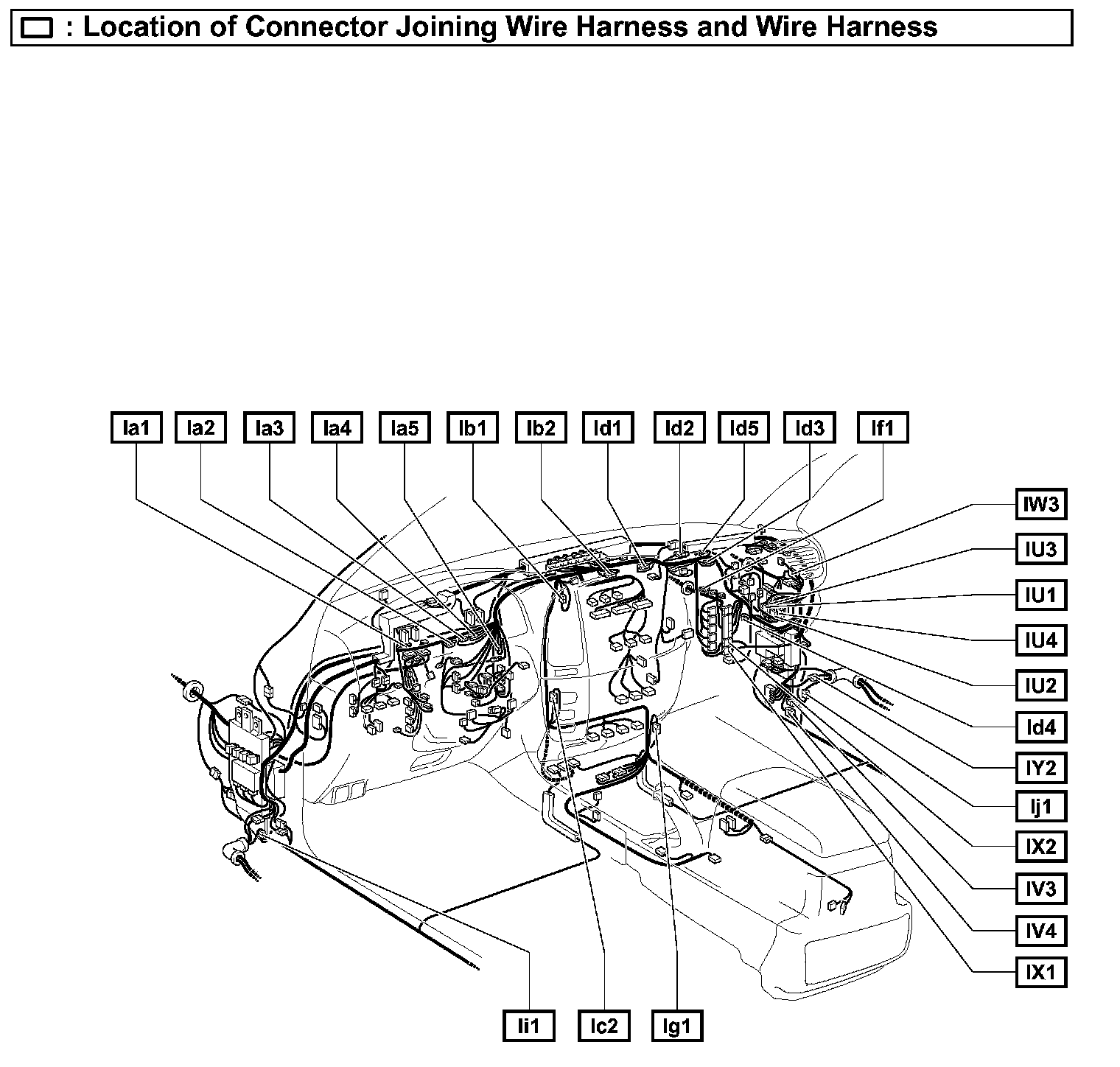

IU1 - Ij1:

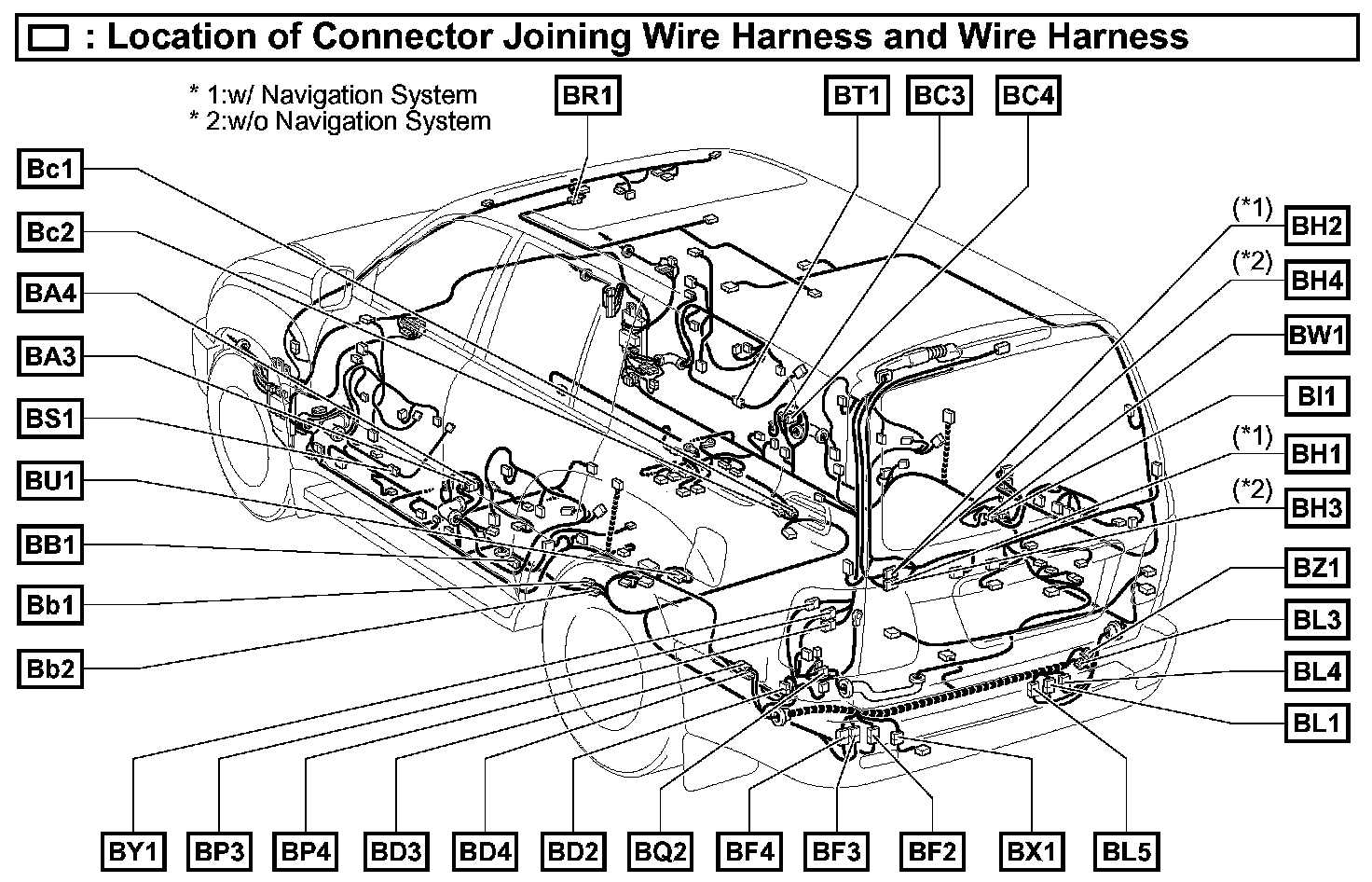

BA3 - Bc2:

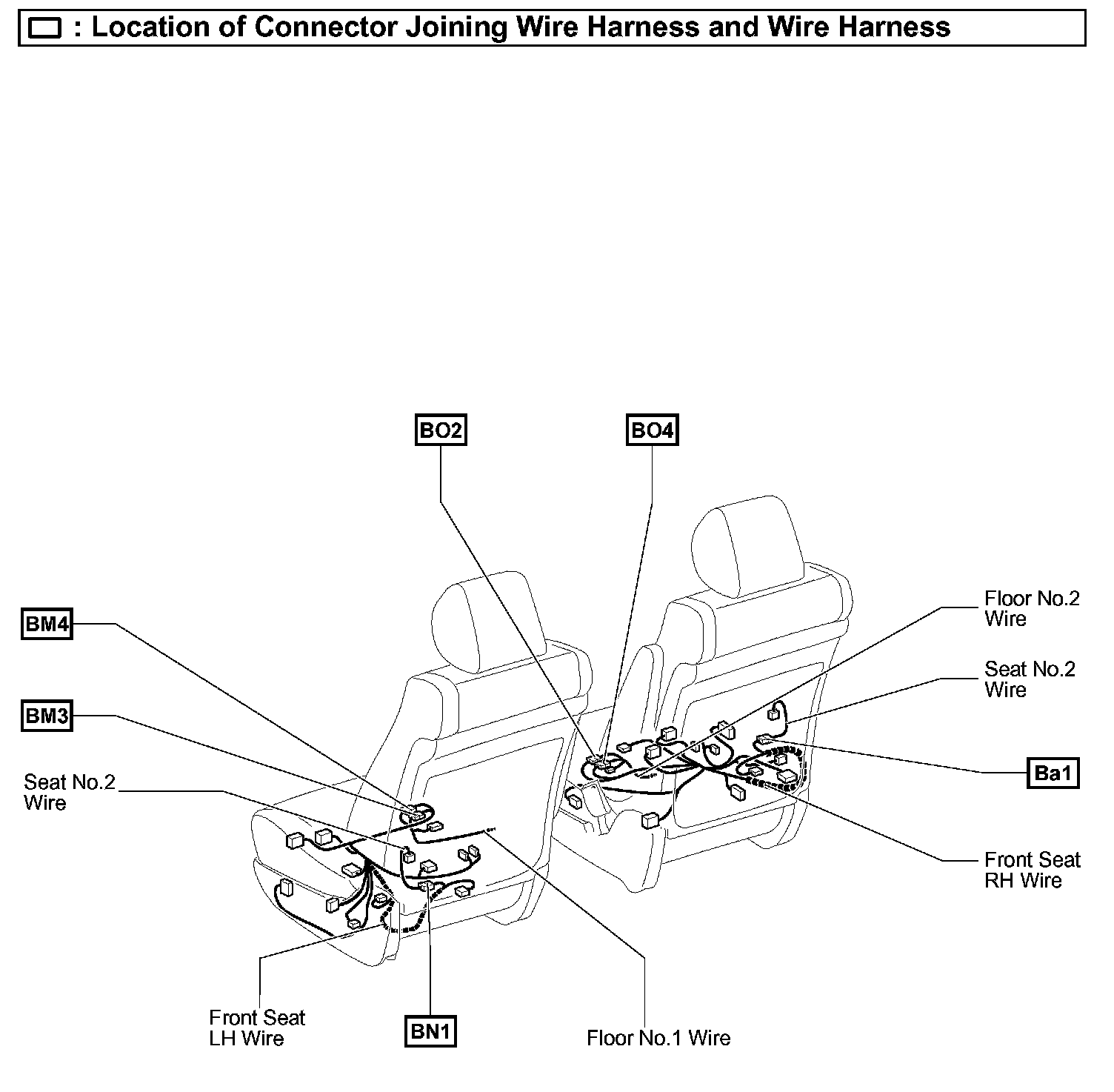

BM3 - Ba1:
