Open in CAN Main Bus Line

Open in CAN Main Bus Line




DESCRIPTION
There may be an open circuit in the CAN main bus line and/or the DLC3 sub bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 67 or higher.

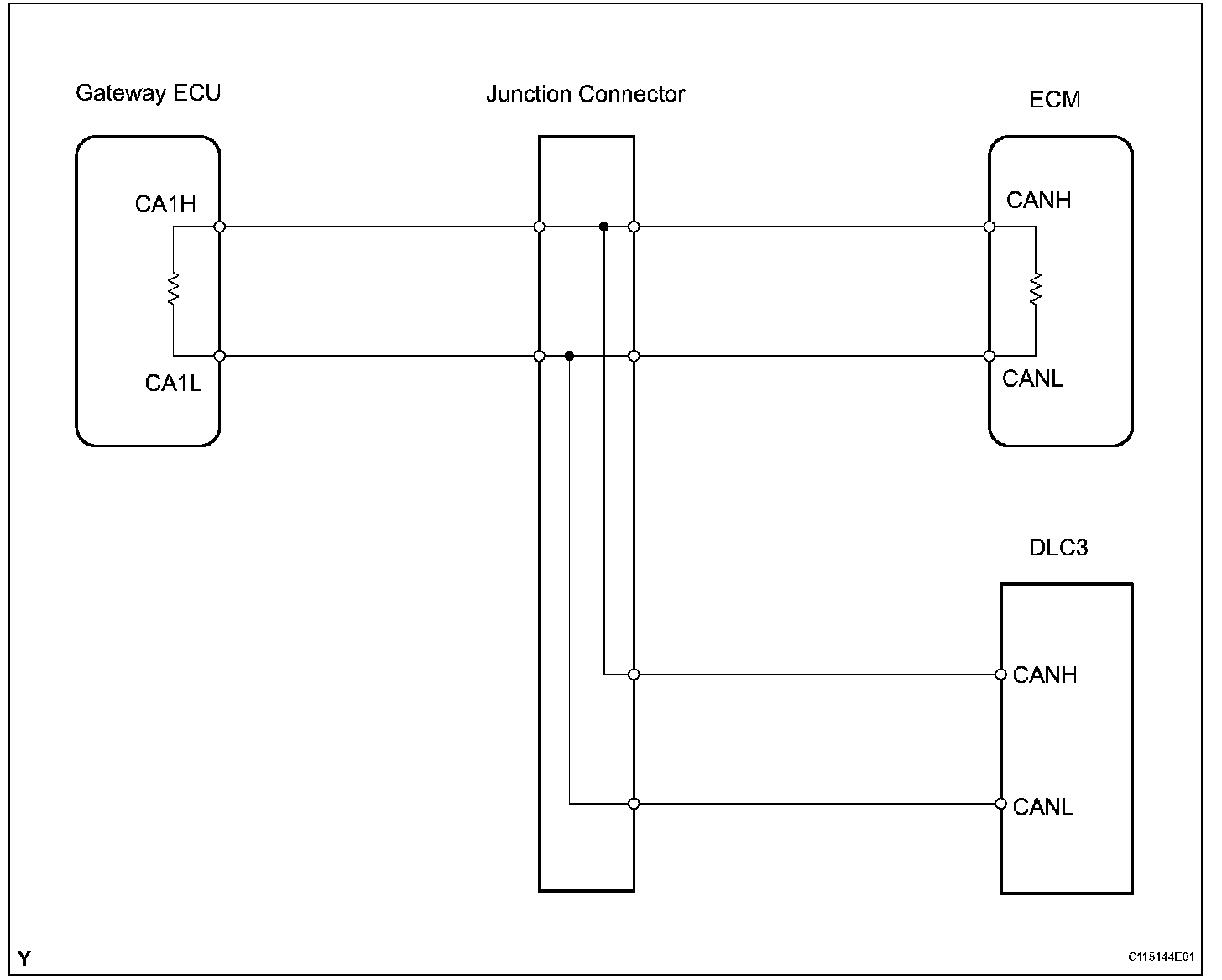

Wiring Diagram:

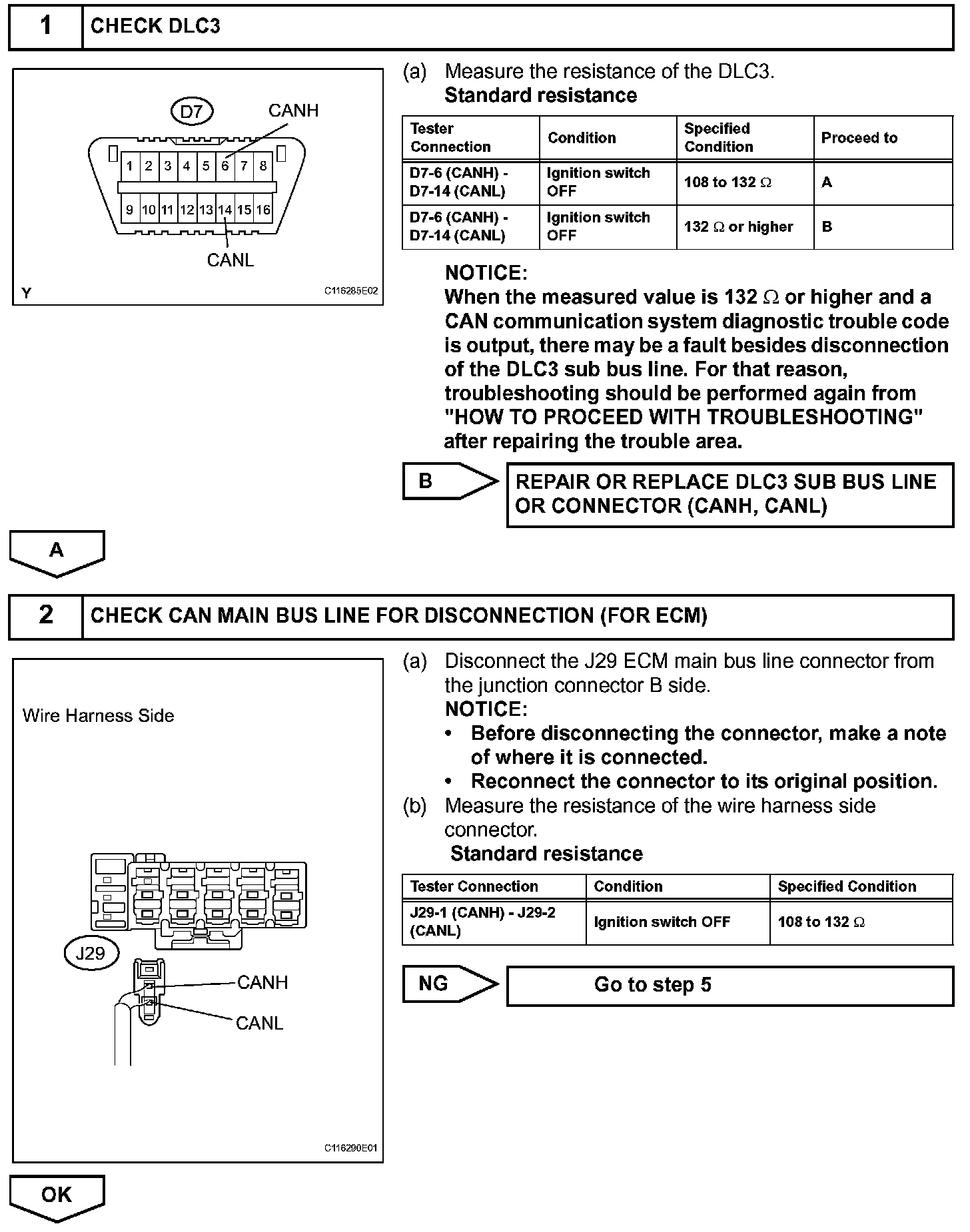

Step 1-2:

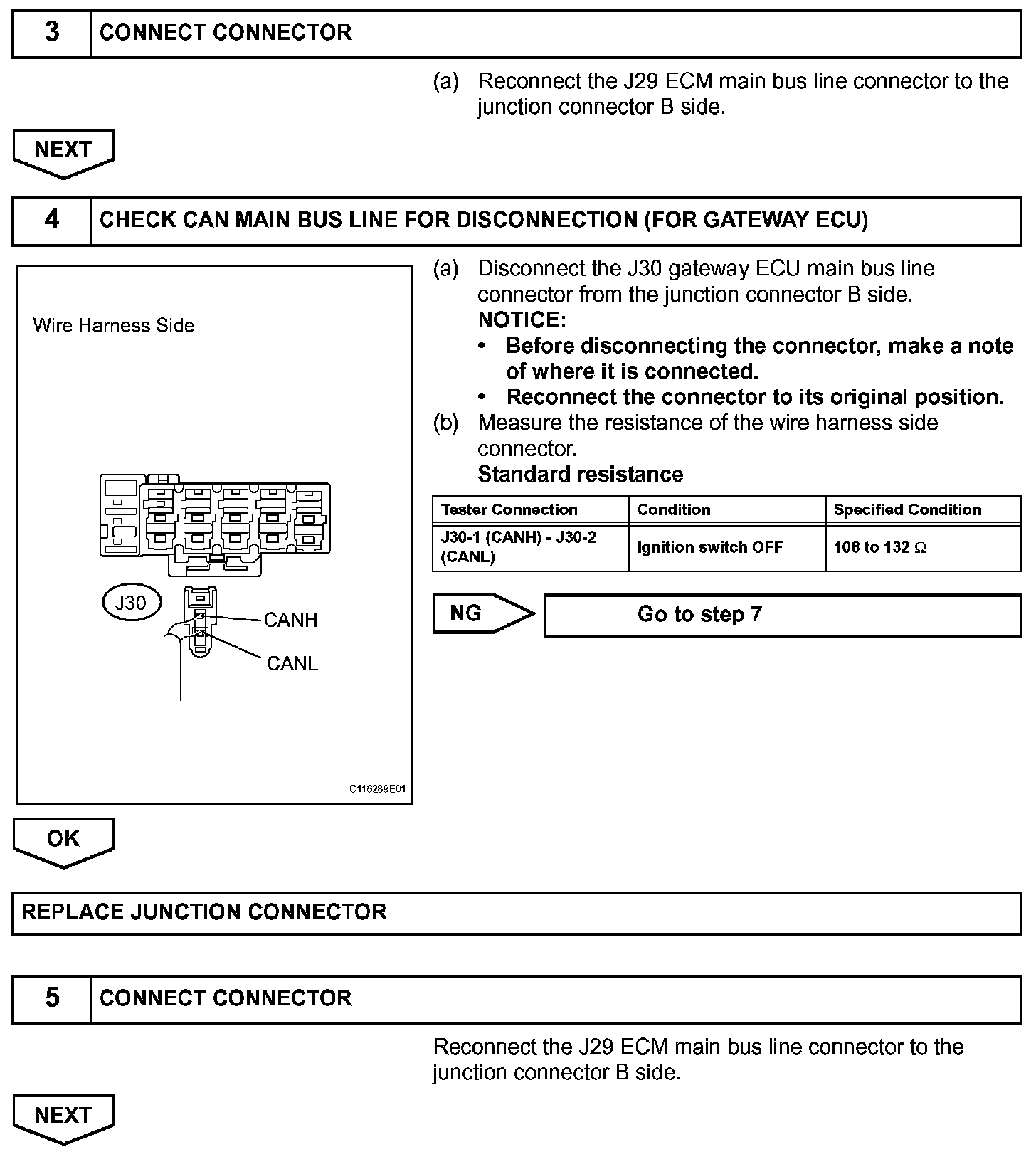

Step 3-5:

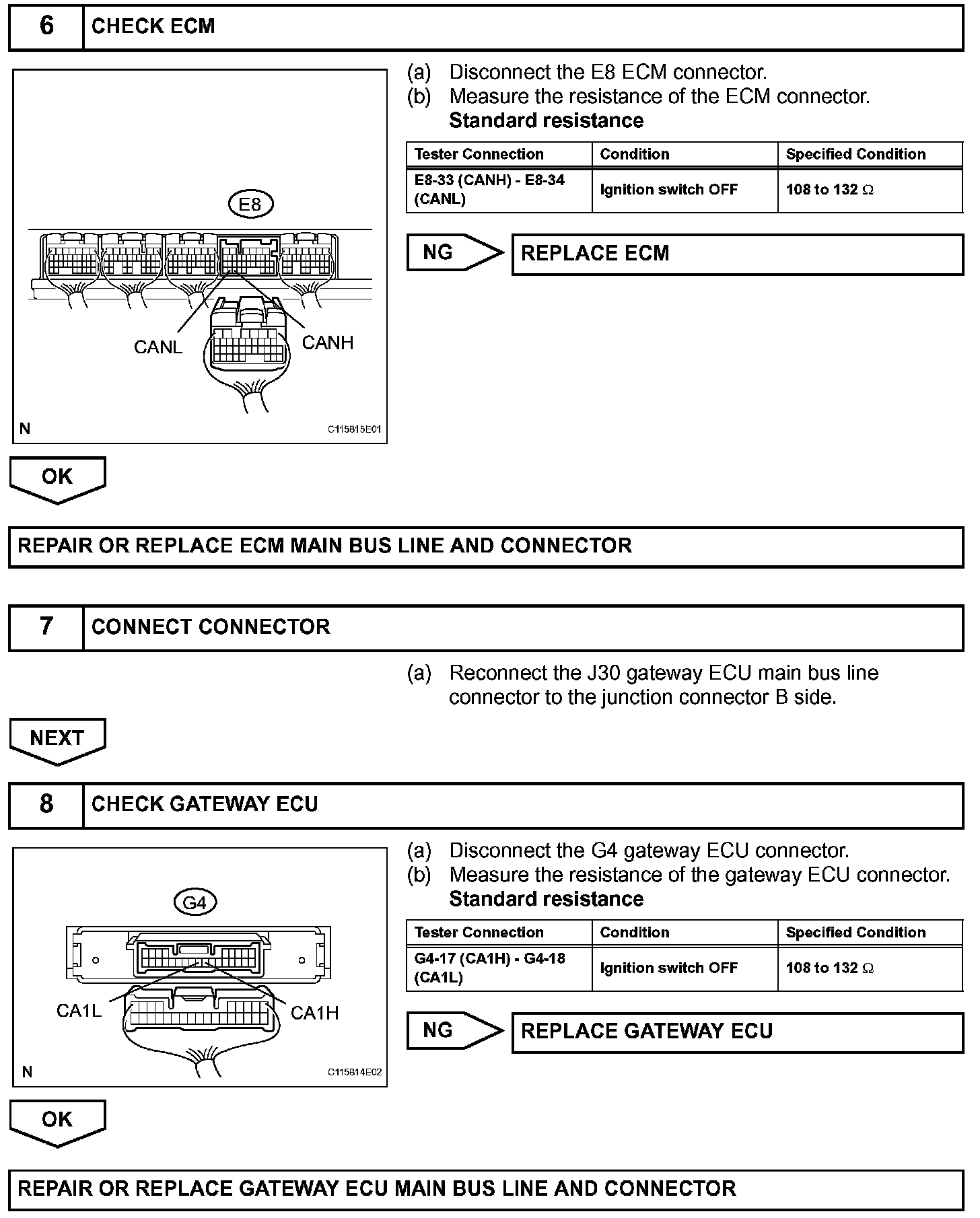

Step 6-8:

INSPECTION PROCEDURE
