Initial Inspection

BASIC INSPECTION (INSPECT BODY ECU)

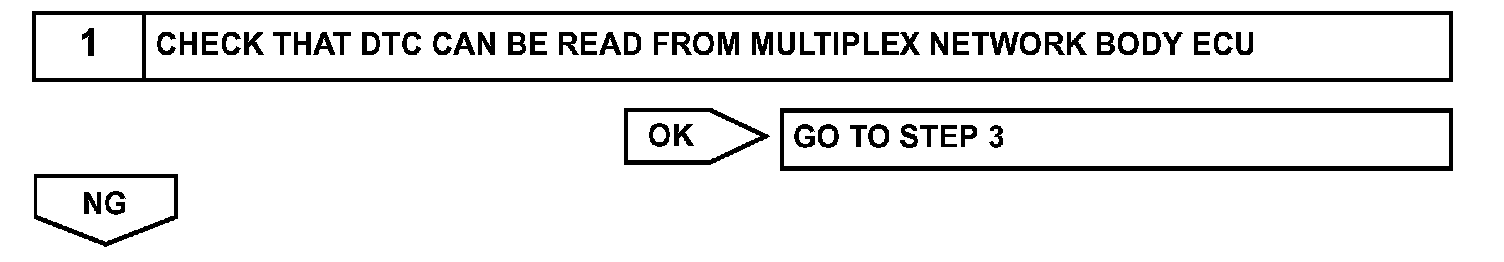

Step 1:

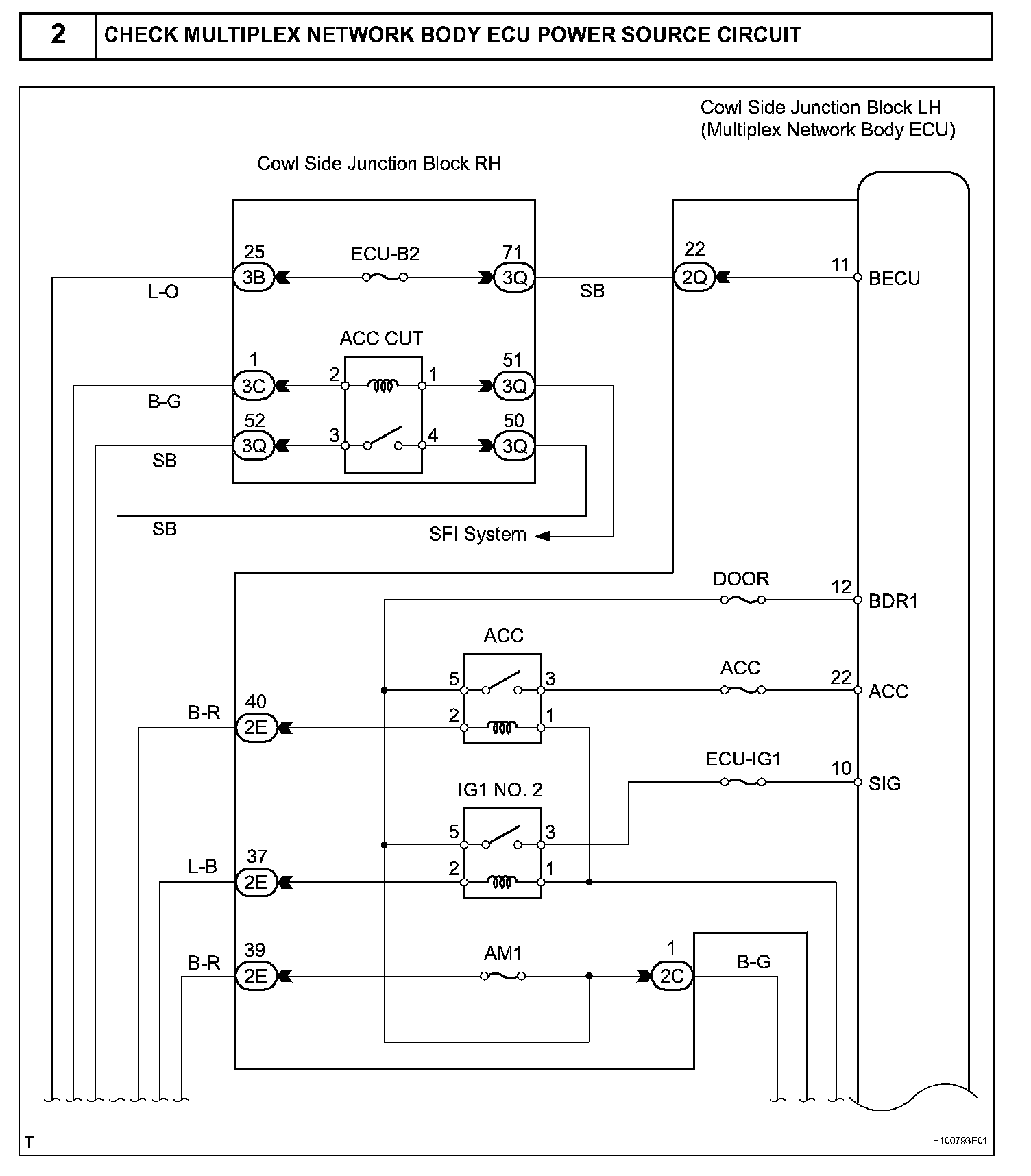

Step 2:

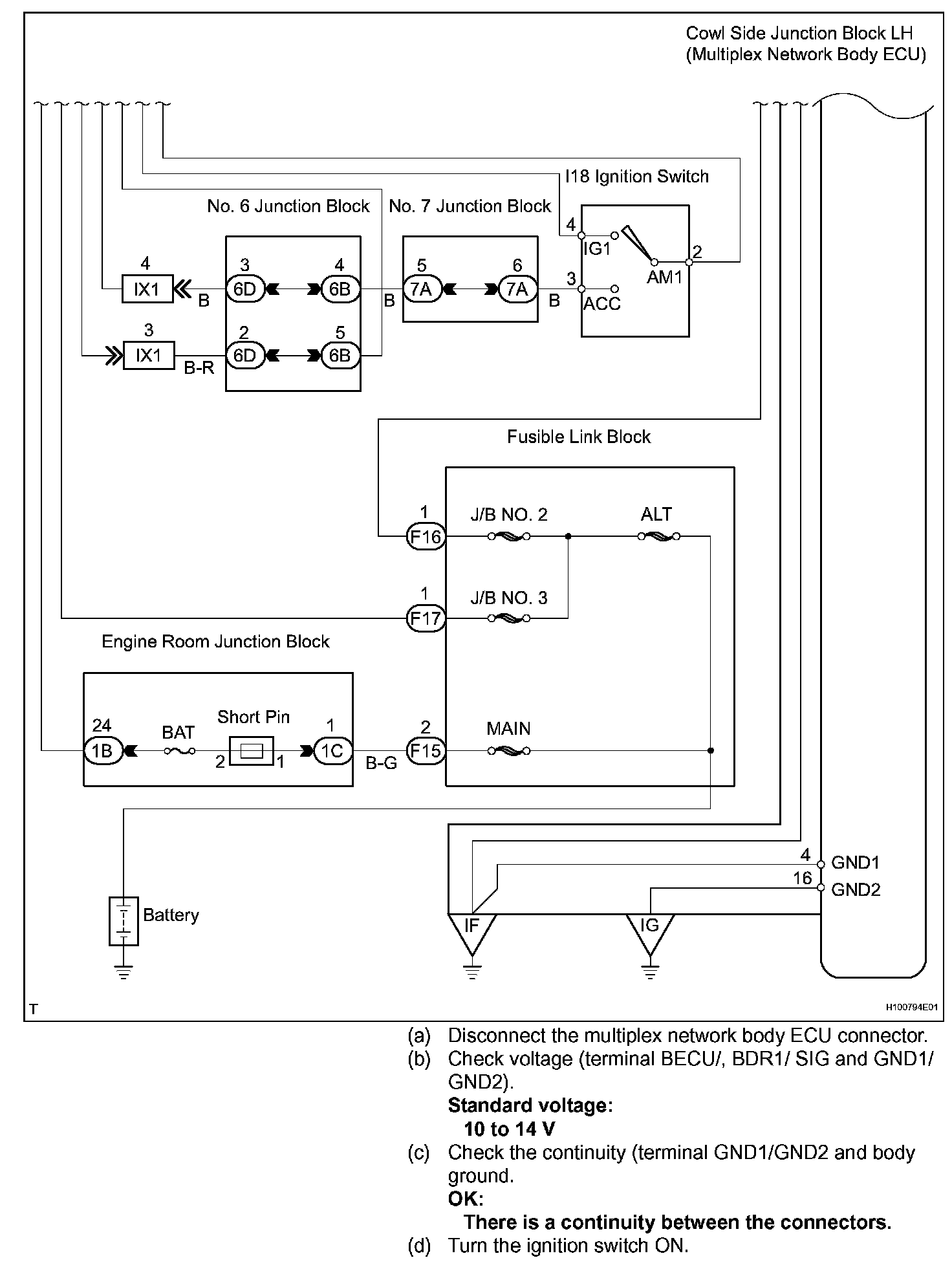

Step 2(Continued):




Step 2(Continued)-3:




INSPECTION PROCEDURE
