System Specifications
CYLINDER HEADCylinder block side:
Maximum warpage 0.10 mm (0.0039 in.)
Intake manifold side:
Maximum warpage 0.10 mm (0.0039 in.)
Exhaust manifold side:
Maximum warpage 0.10 mm (0.0039 in.)
CYLINDER HEAD LH

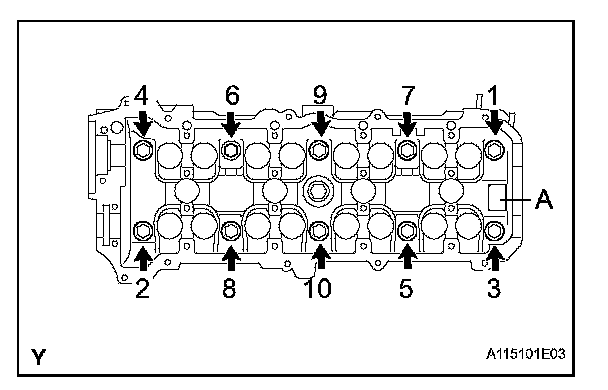

Install and uniformly tighten the 10 cylinder head bolts and plate washers in the sequence shown in the illustration.
Torque 40 N*m (408 kgf*cm, 30 ft.*lbf)

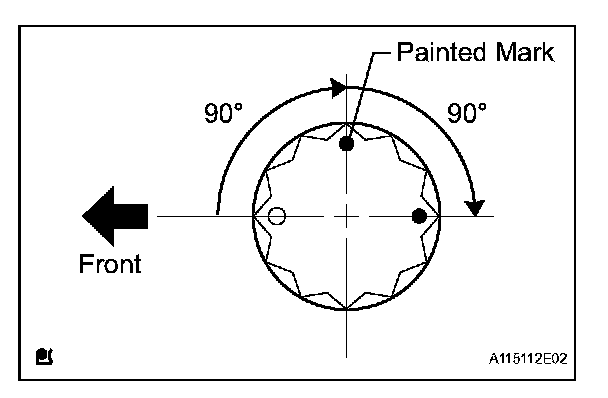

Mark the front of the cylinder head bolt's head with paint.
Retighten the cylinder head bolts by 90° in the numerical order shown above.
Retighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now at a 180° angle to the front.
CYLINDER HEAD RH

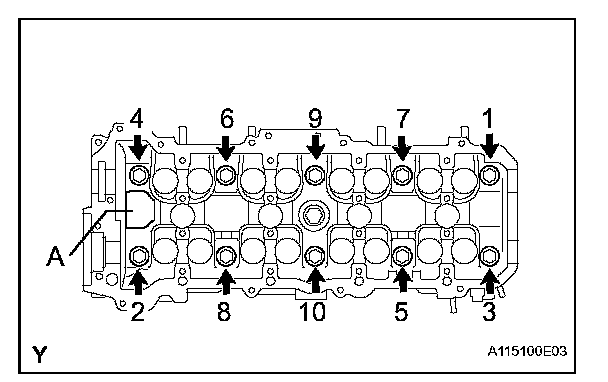

Install and uniformly tighten the 10 cylinder head bolts, and plate washers in the sequence shown in the illustration.
Torque 40 N*m (408 kgf*cm, 30 ft.*lbf)

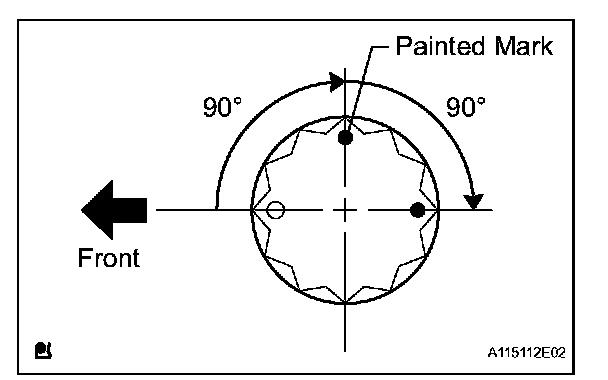

Mark the front of the cylinder head bolt's head with paint.
Retighten the cylinder head bolts by 90° in the numerical order shown above.
Retighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now at a 180° angle to the front.
CAMSHAFT BEARING CAP

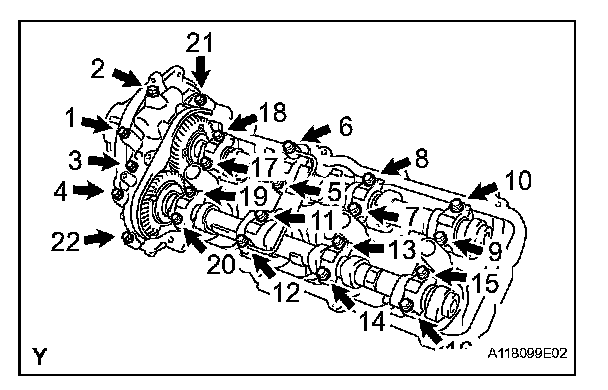

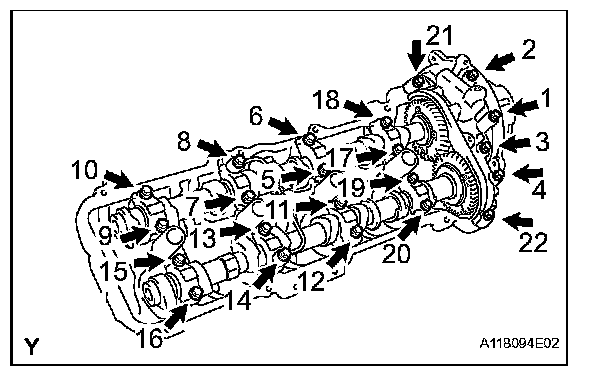

Uniformly tighten the 22 bearing cap bolts in several passes in the sequence shown in the illustration.
Bolts 21 and 22 Torque: 7.5 N*m (76 kgf*cm, 66 ft.*lbf)
Other bolts Torque 16 N*m (163 kgf*cm, 12 ft.*lbf)
EXHAUST MANIFOLD LH

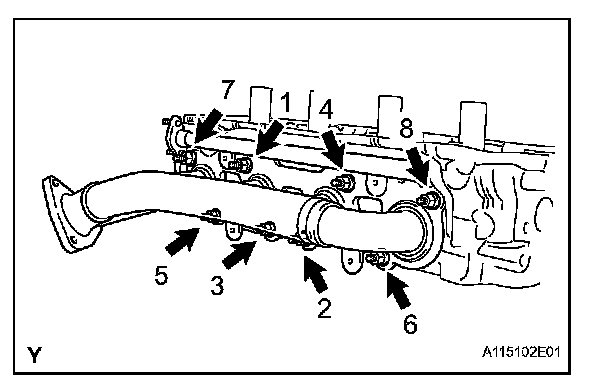

Install the exhaust manifold to the cylinder head with 8 new nuts in the order shown in the illustration.
Torque 44 N*m (449 kgf*cm, 32 ft.*lbf)
EXHAUST MANIFOLD RH
Install the exhaust manifold with 8 new nuts in the order shown in the illustration.
Torque 44 N*m (449 kgf*cm, 32 ft.*lbf)
CAMSHAFT TIMING PULLEY LH / RH
Temporarily install the 4 bolts of the camshaft timing pulley.
Hold the camshaft timing pulley with SST, and tighten the pulley bolt.
SST 09960-10010 (09962-01000, 09963-01000)
Torque 8.1 N*m (83 kgf*cm, 72 in.*lbf)
