Oil Pump, Engine

OIL PUMP





Install the oil pump with the 8 bolts. Uniformly tighten the bolts in several passes.
Bolt A, B, C and E 15.5 N*m (158 kgf*cm, 11 ft.*lbf)
Bolt D 30.5 N*m (311 kgf*cm, 22 ft.*lbf)

HINT:
^ Use a 6 mm hexagon wrench for the hexagon head bolt.

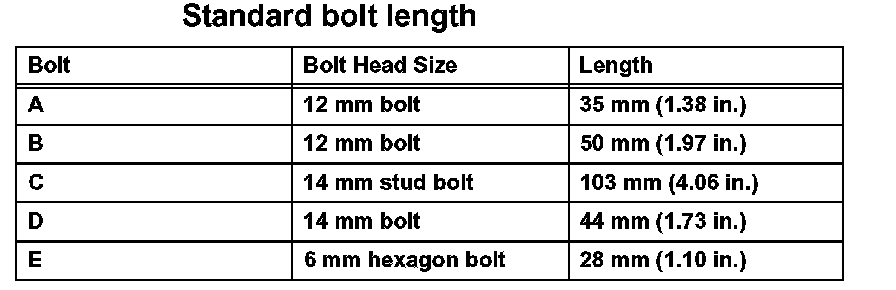

^ Each bolt length is as shown in the table.

Standard bolt length:
