Wireless Door Lock Control System (W/ Smart Key System)

CUSTOMIZE PARAMETERS

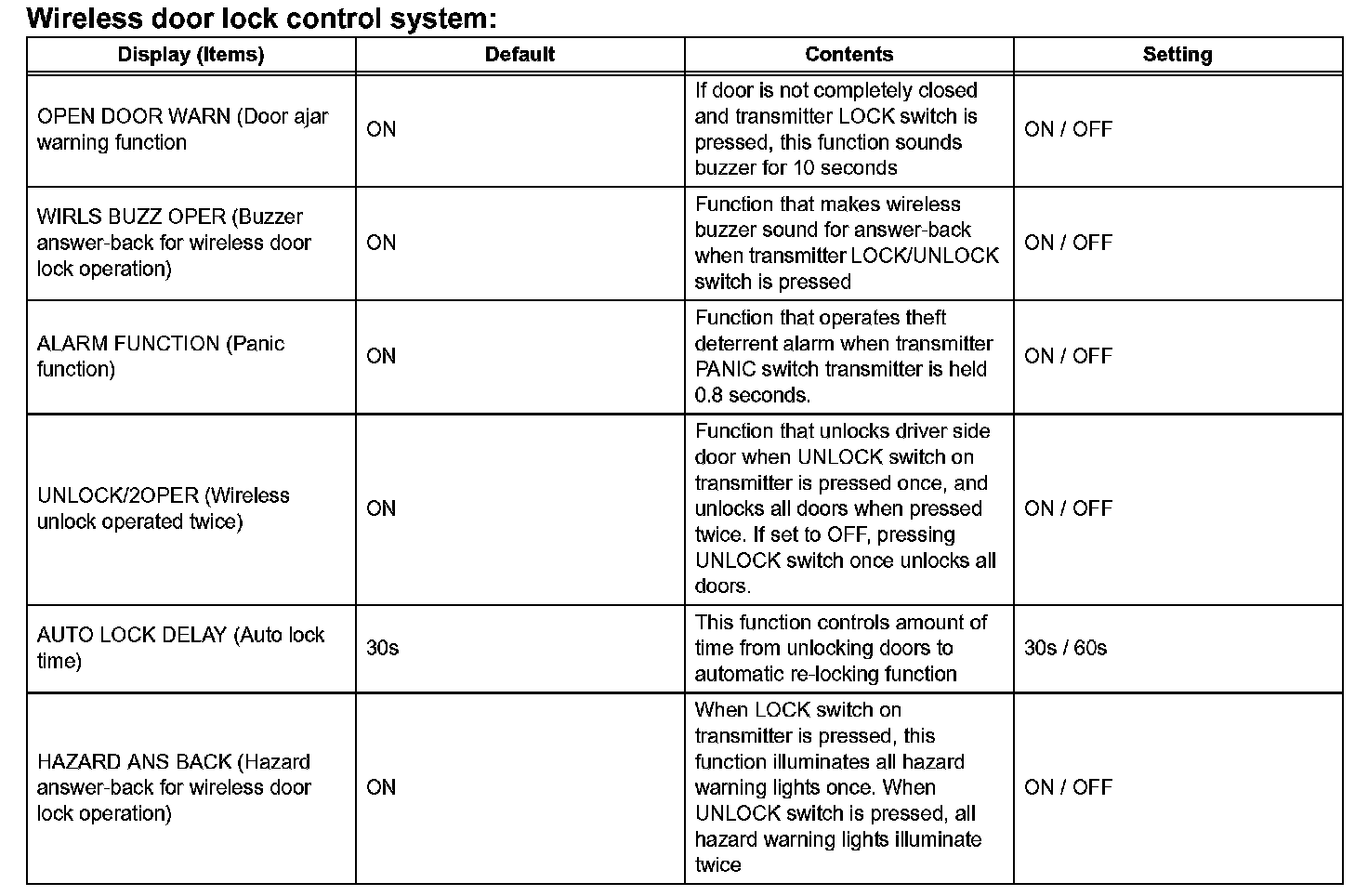

1. CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER (REFERENCE)

HINT: The given items can be customized.






NOTE:
- When the customer requests a change in a function, first make sure that the functions can be customized.
- Be sure to record the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.
