Only Wireless Door Lock Control Function Does Not Operate

Only Wireless Door Lock Control Function does not Operate

DESCRIPTION
The door control receiver receives signals from the transmitter and sends these signals to the main body ECU through the certification ECU. The main body ECU then controls all doors by sending LOCK/ UNLOCK signals to each door lock.

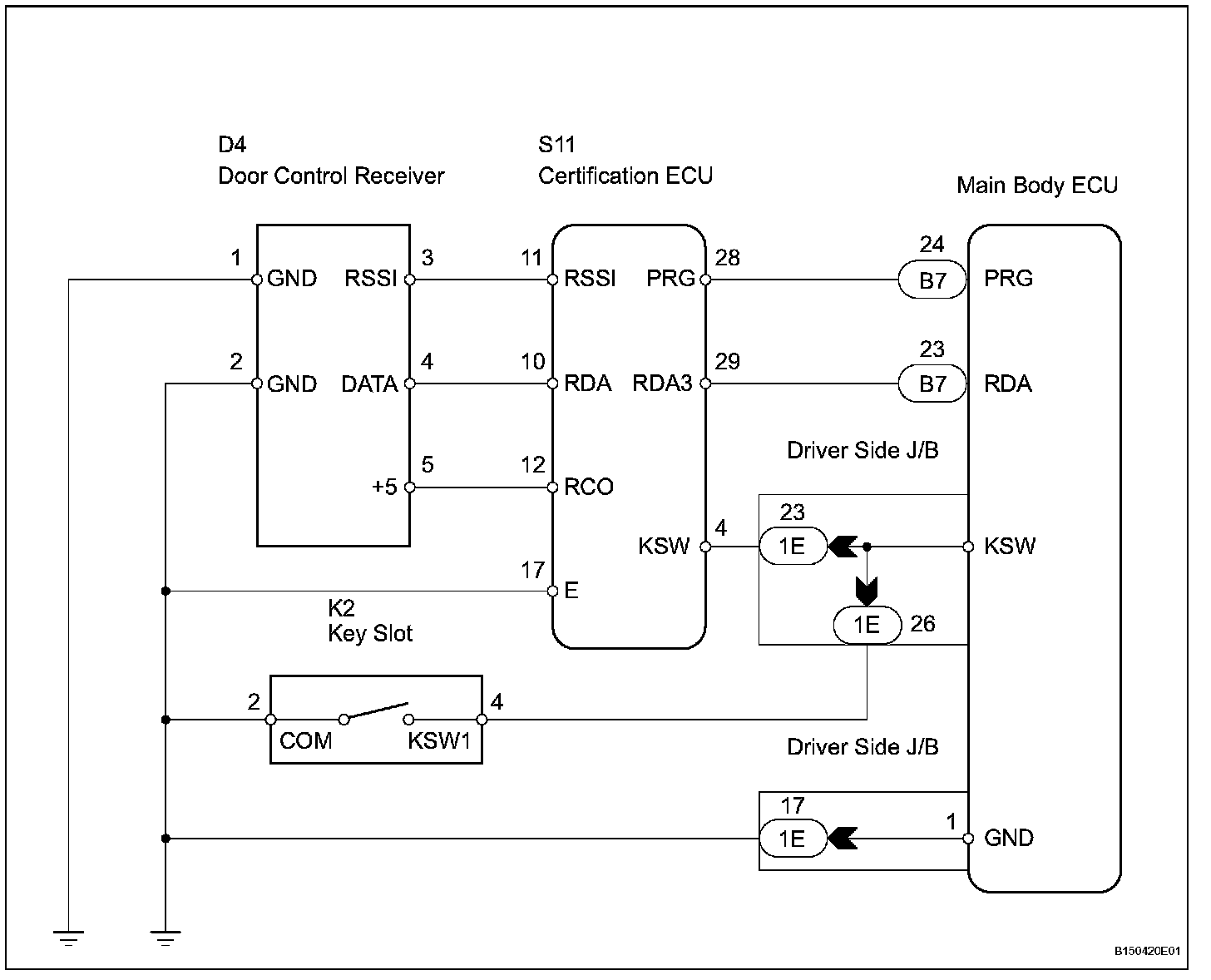

Wiring Diagram:

Step 1:

Step 2-4:

Step 5-6:

Step 6 (Continued):

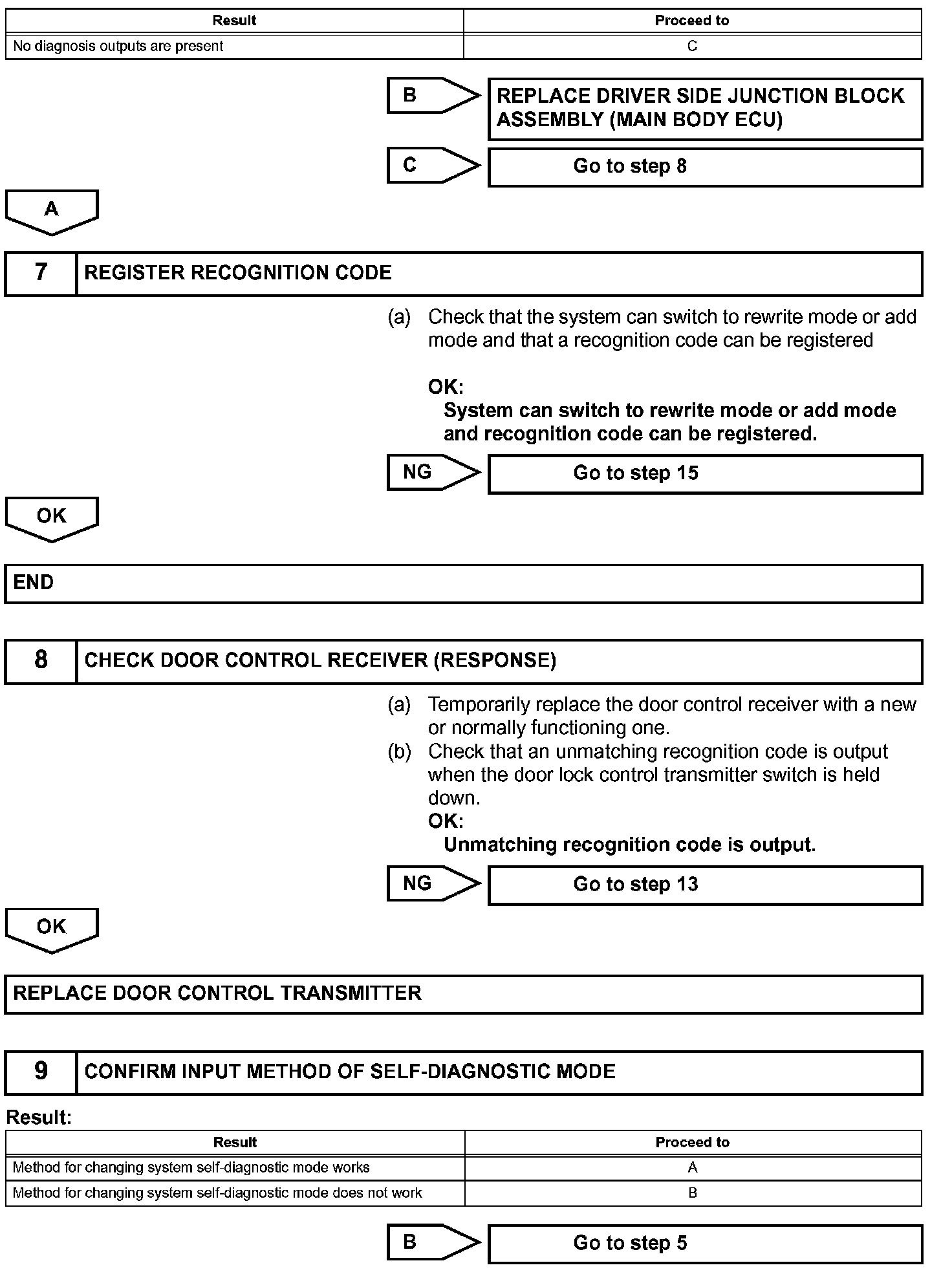

Step 6 (Continued)-9:

Step 9 (Continued)-11:

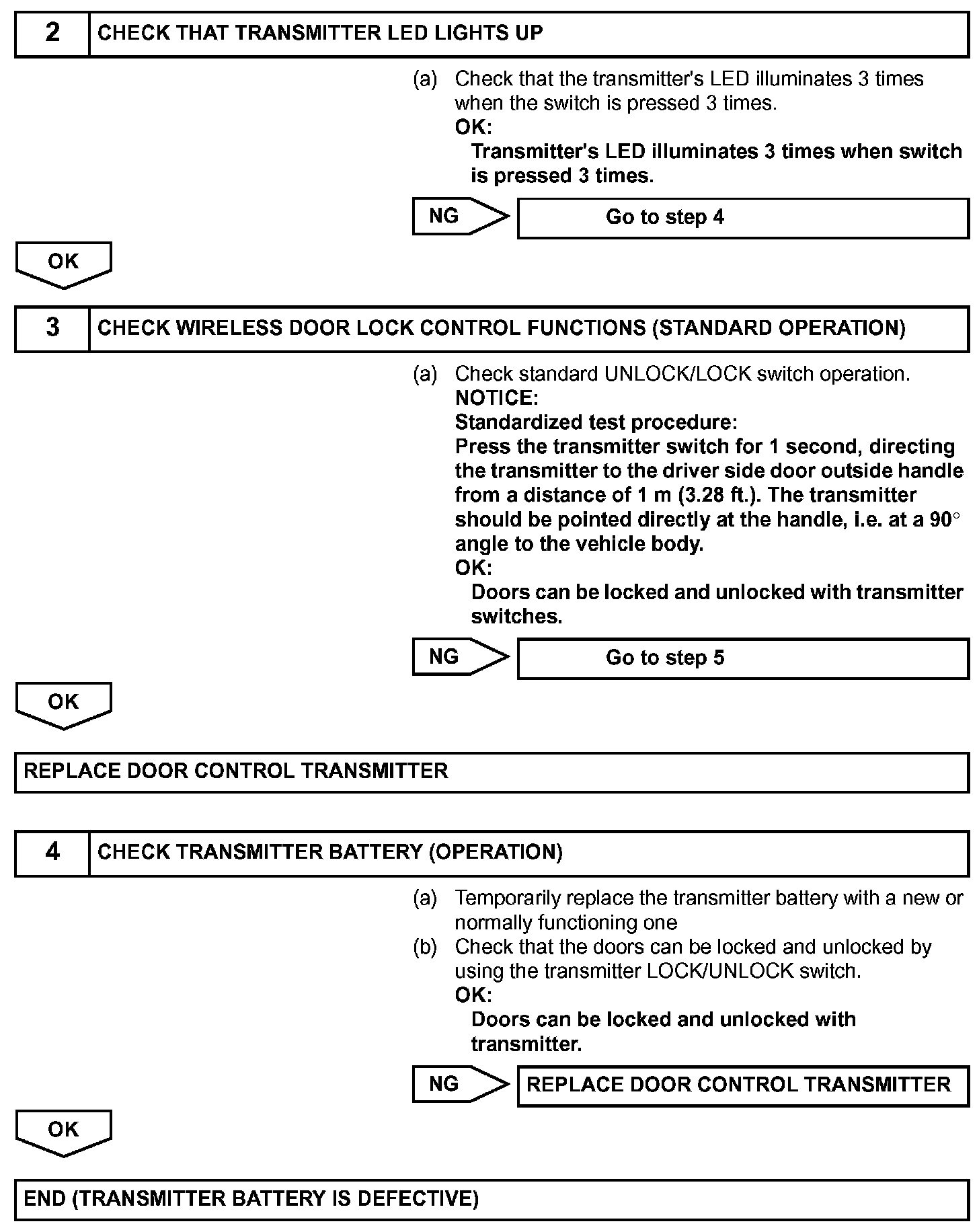

Step 12-13:

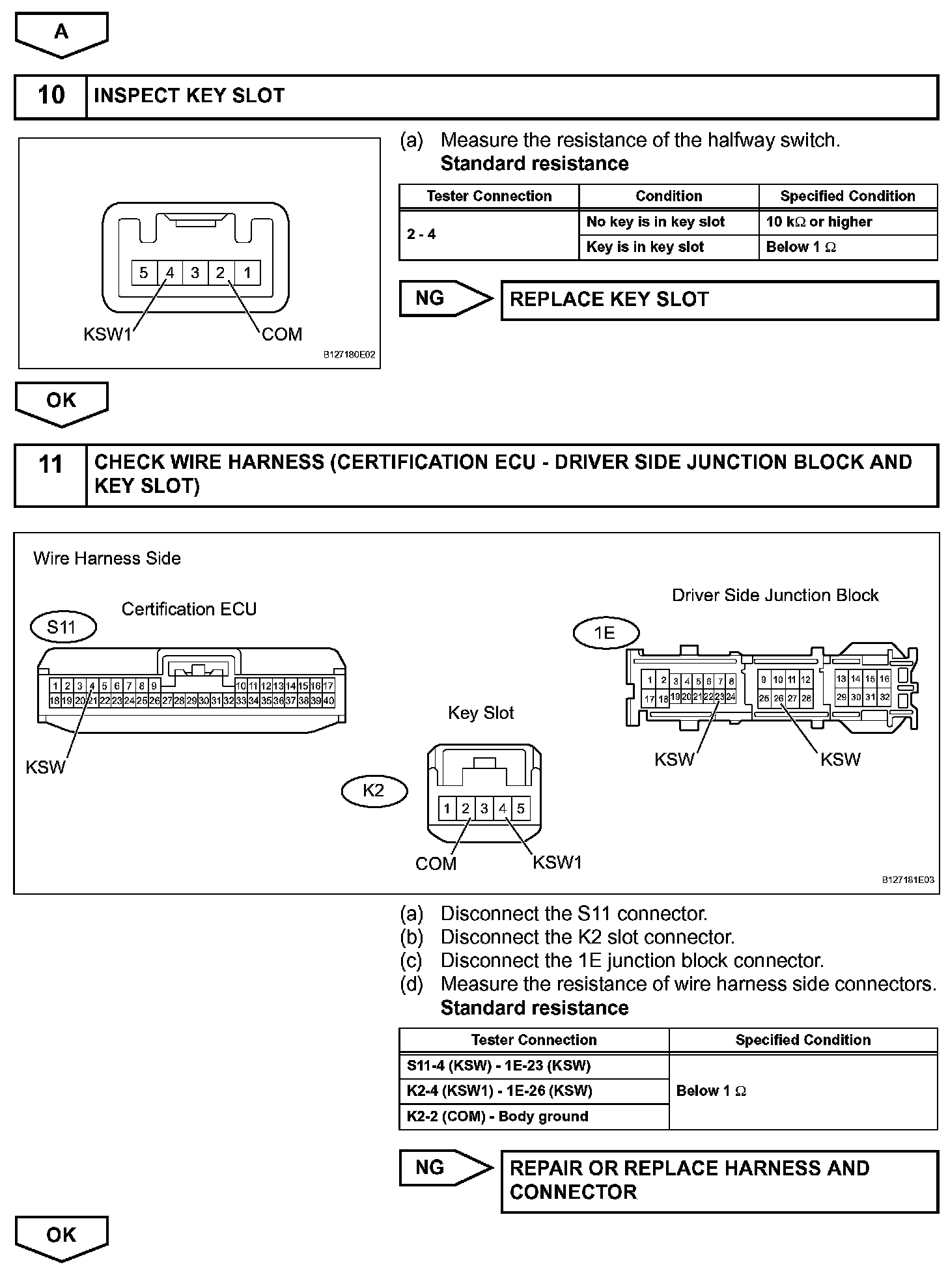

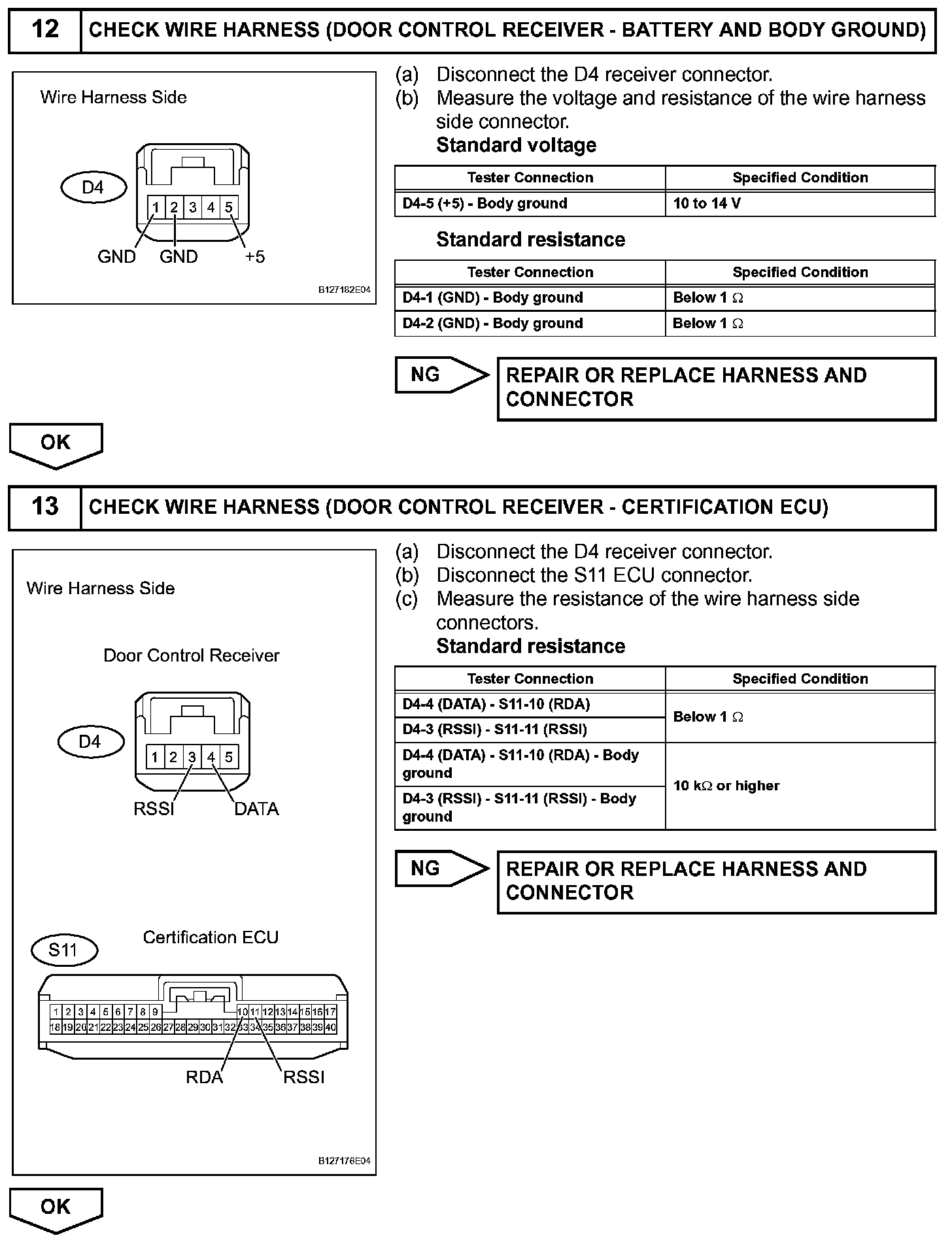

Step 14-16:

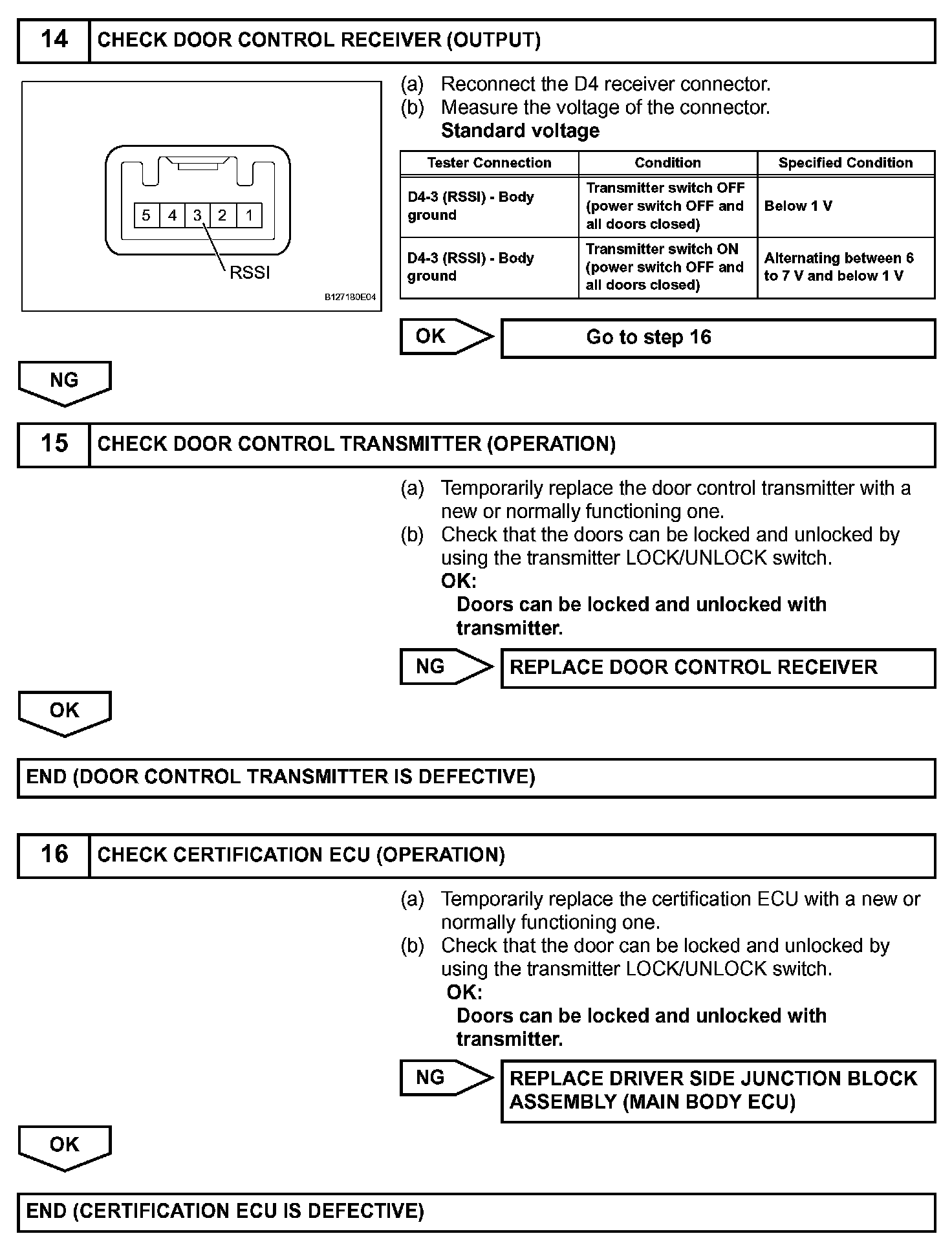

INSPECTION PROCEDURE
