Home >> Toyota >> 2007 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Keyless Entry Module >> Locations

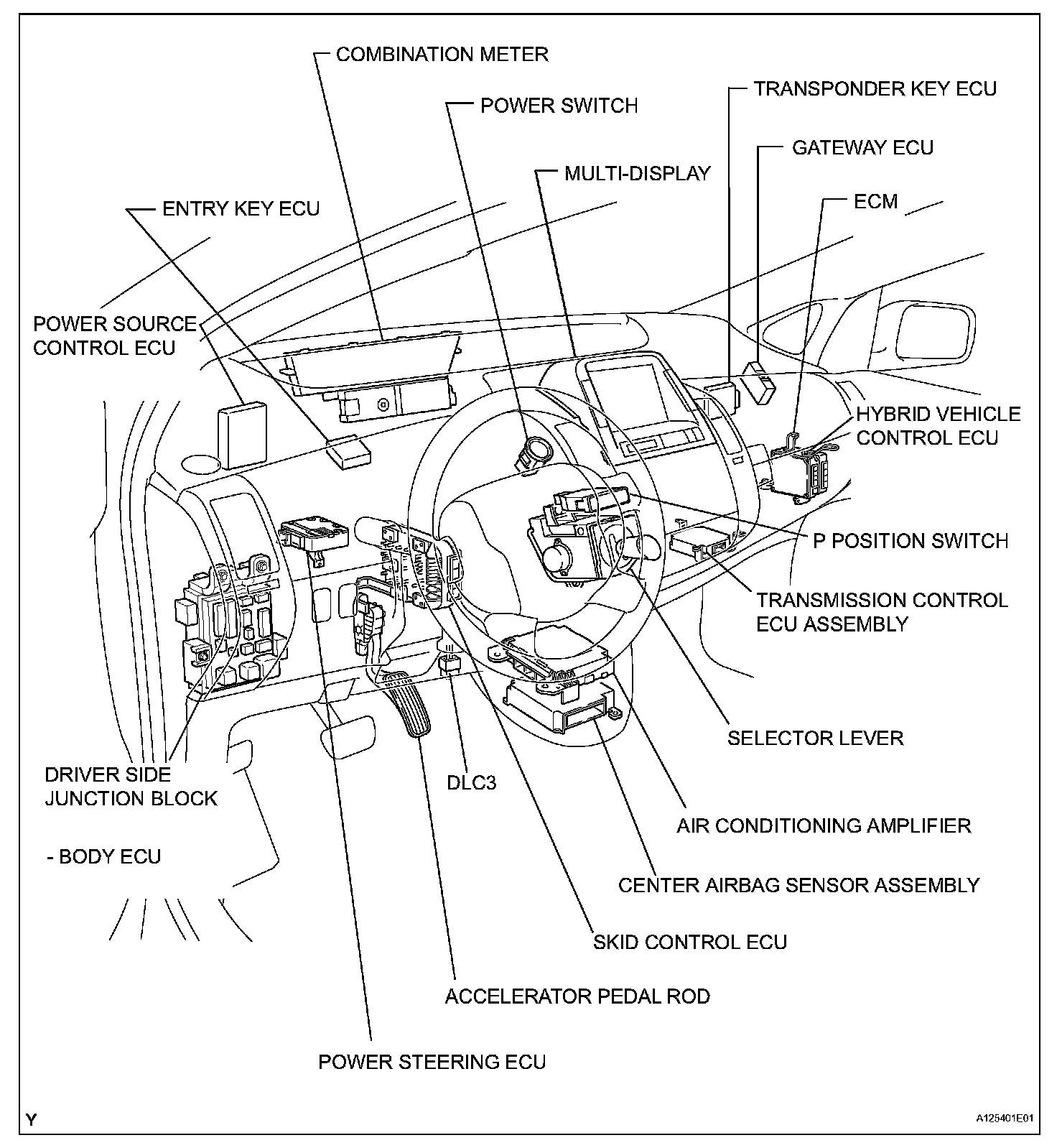

Keyless Entry Module: Locations

Hybrid Control System:
