Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

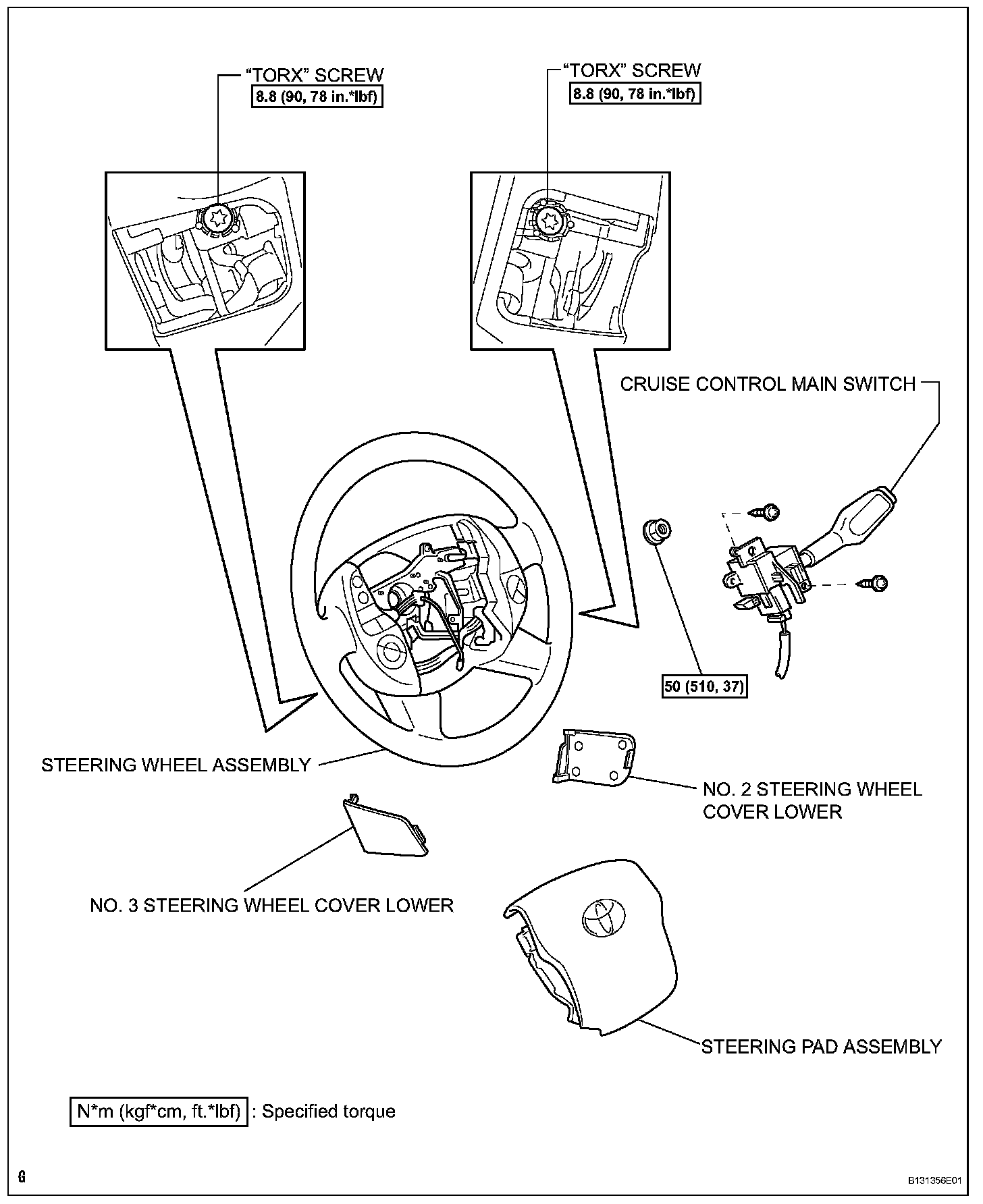

CRUISE CONTROL MAIN SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 2 STEERING WHEEL COVER LOWER
3. REMOVE NO. 3 STEERING WHEEL COVER LOWER
4. REMOVE STEERING PAD ASSEMBLY
5. REMOVE STEERING WHEEL ASSEMBLY

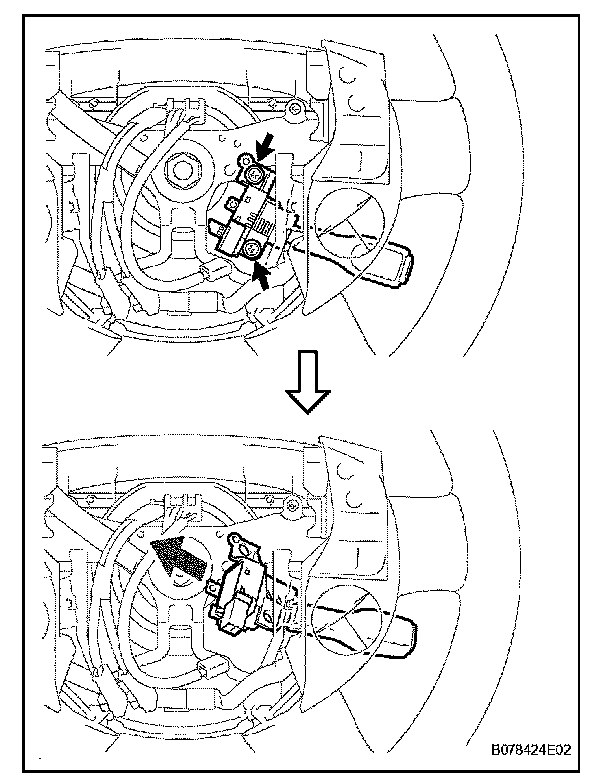

6. REMOVE CRUISE CONTROL MAIN SWITCH




a. Disconnect the connector.
b. Remove the 2 screws and switch.

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH
a. Install the switch with the 2 screws.
b. Connect the connector.

2. INSTALL STEERING WHEEL ASSEMBLY
3. INSTALL STEERING PAD ASSEMBLY
4. INSTALL NO. 2 STEERING WHEEL COVER LOWER
5. INSTALL NO. 3 STEERING WHEEL COVER LOWER
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
