Rear Wheel Alignment

NOTICE: For Zero Point Calibration information, please refer to: TSB T-SB-0020-8 (3/25/08).

REAR WHEEL ALIGNMENT
INSPECTION
1. INSPECT TIRE
a. Inspect the tires.
2. MEASURE VEHICLE HEIGHT
a. Measure the vehicle height.

Standard Toe-In:

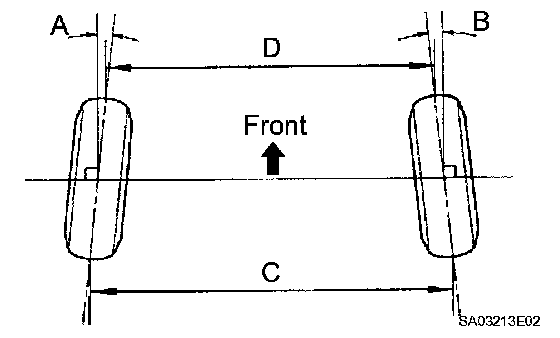

3. INSPECT TOE-IN

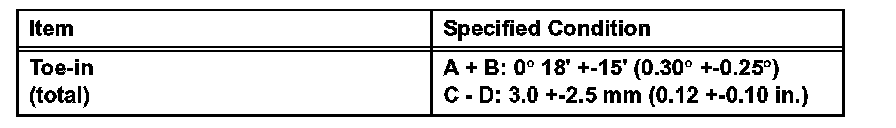

Standard Toe-In:

HINT:
- Measure "C - D" only when "A + B" cannot be measured.
- If the toe-in is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.

4. INSPECT CAMBER
a. Install the camber-caster-kingpin gauge or set the vehicle on a wheel alignment tester.
b. Inspect the camber.

Standard Camber:

HINT: Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
