Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

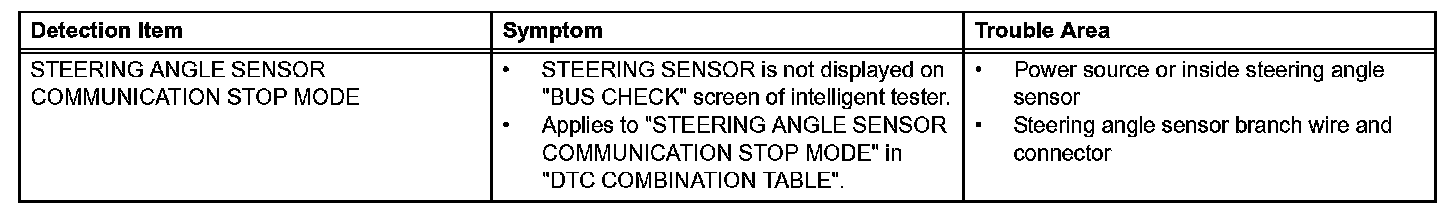

DESCRIPTION


NOTE: This detection item is not applicable to a vehicle without enhanced VSC.

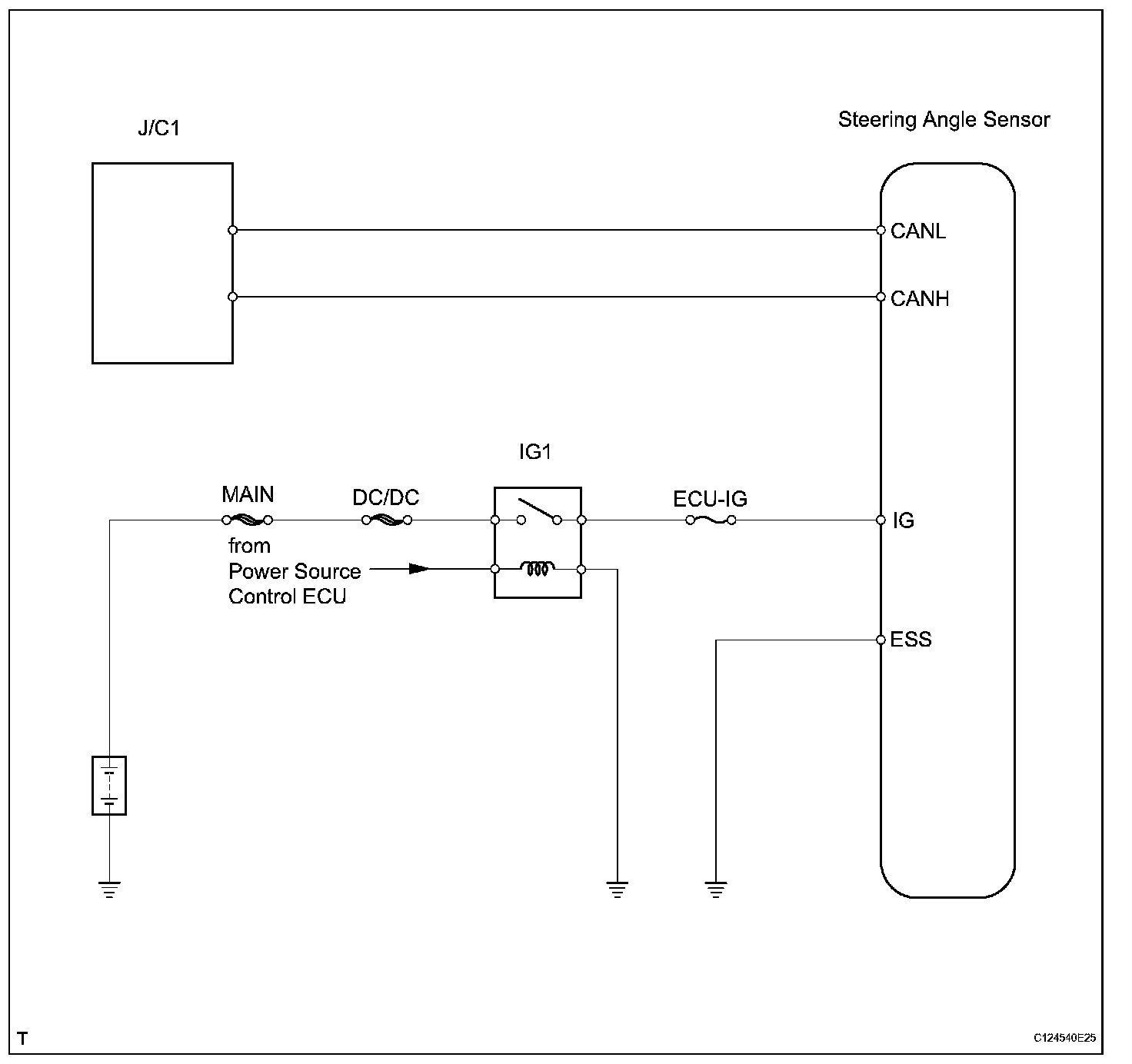

Wiring Diagram:

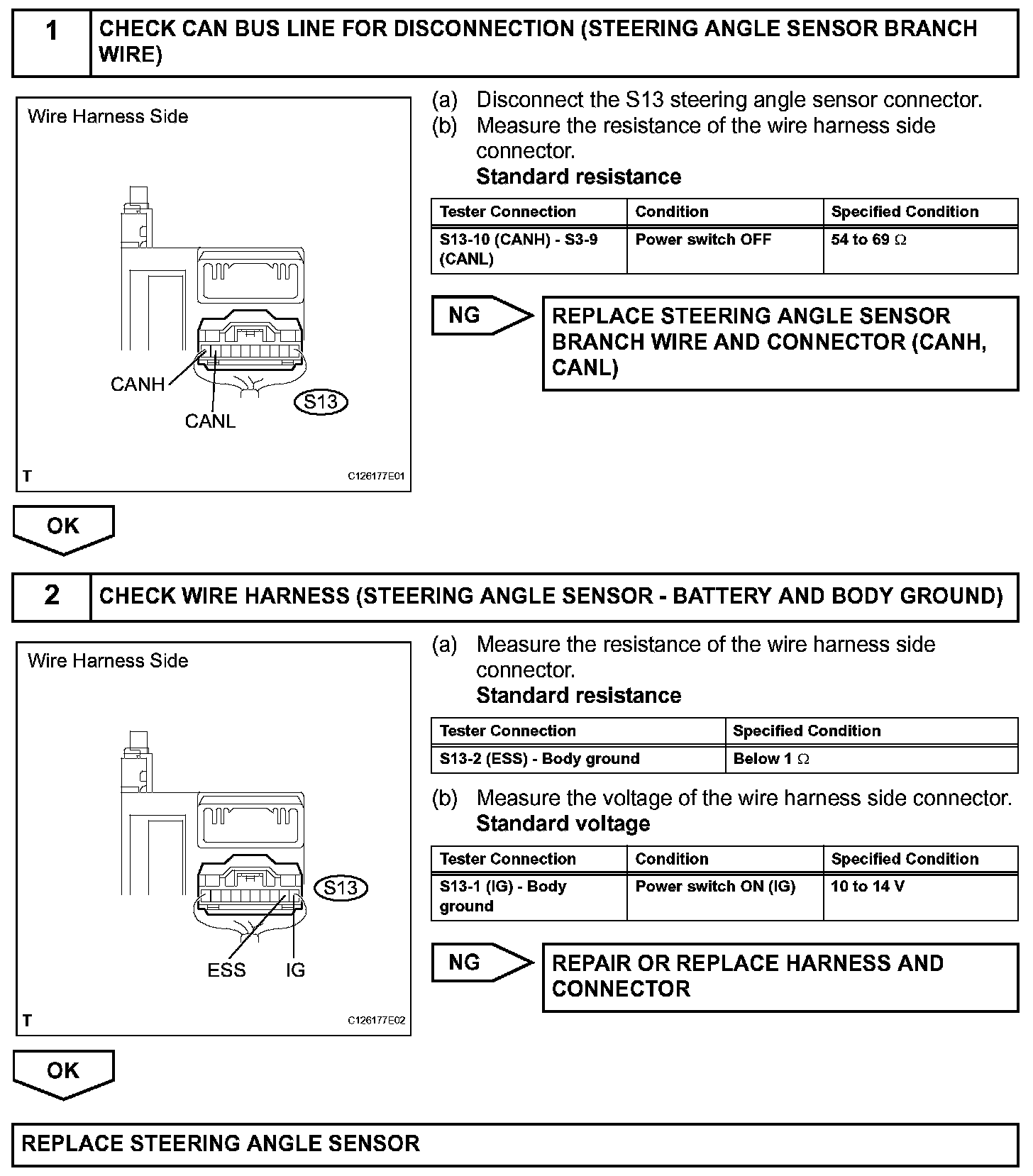

Step 1-2:

INSPECTION PROCEDURE
