Freeze Frame Data

FREEZE FRAME DATA

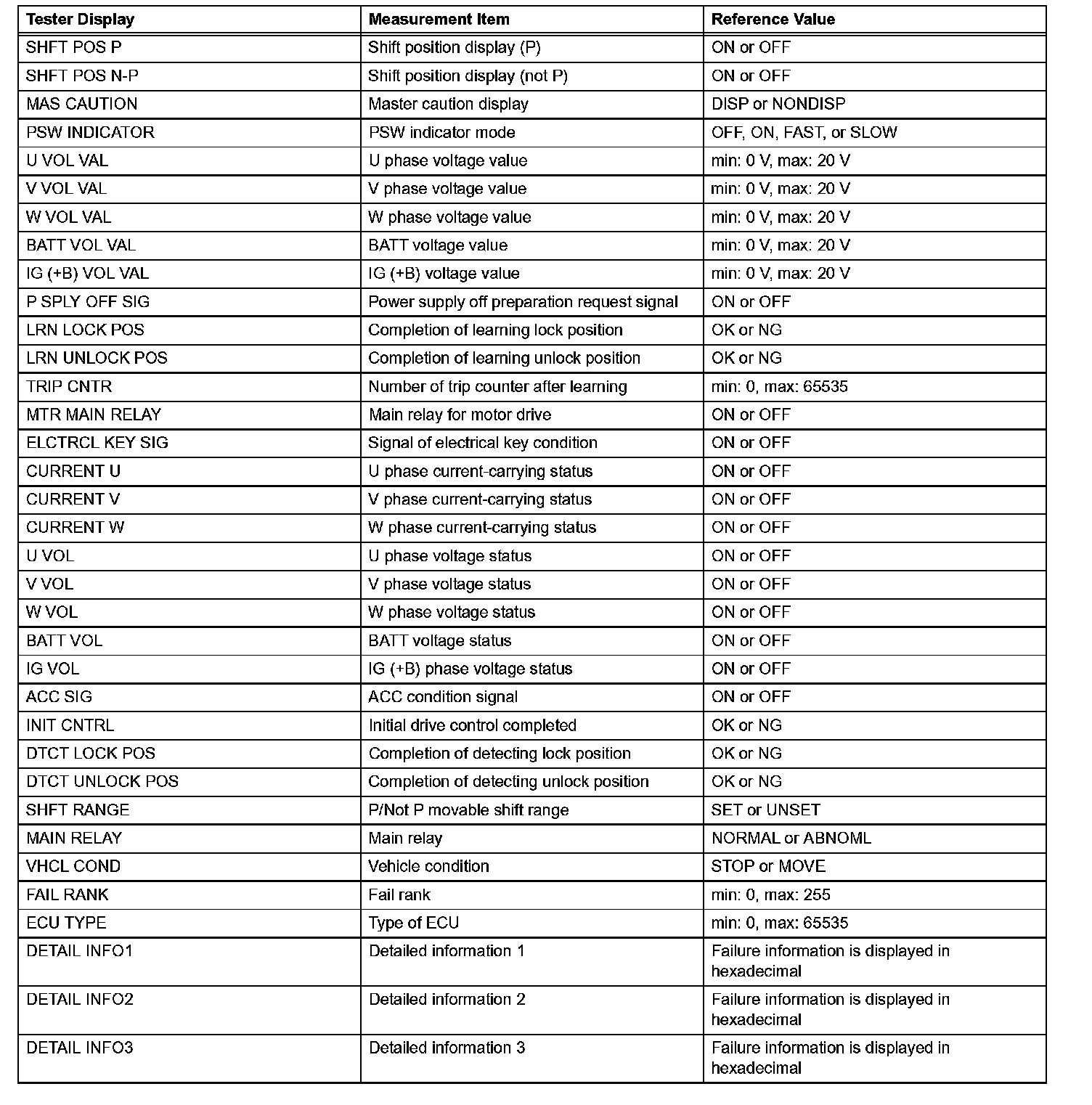

1. CHECK FREEZE FRAME DATA
a. The vehicle status, stored during system operation or at the time of an error code detection, can be displayed by the intelligent tester.
b. Only one record of freeze frame data is stored and the freeze frame data generated during system operation are updated whenever the vehicle status is changed. After storing the DTC, the freeze frame data is not updated.
