Headlamp Alignment Control Module: Locations

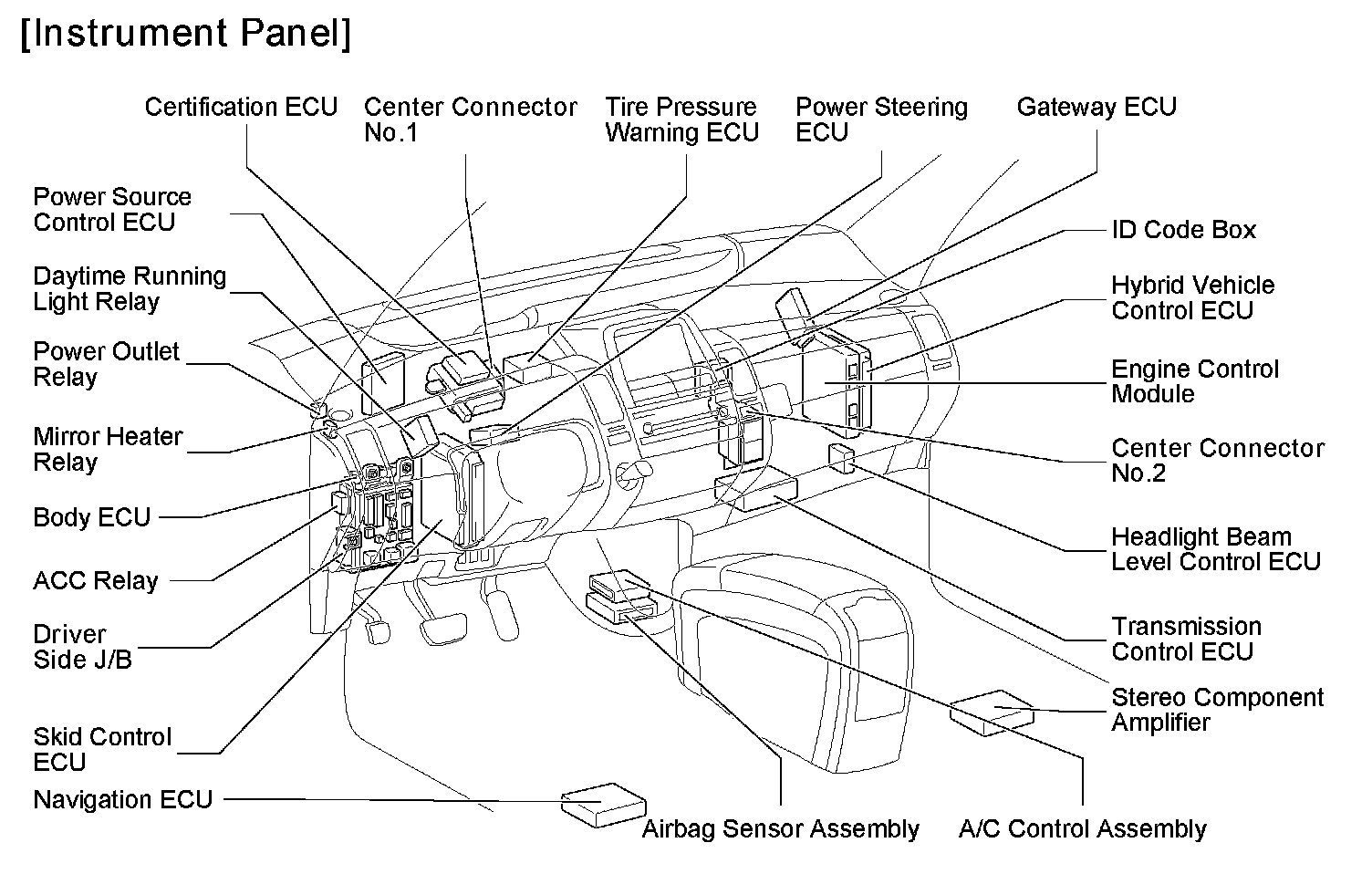

Instrument Panel:



Hybrid Control System:

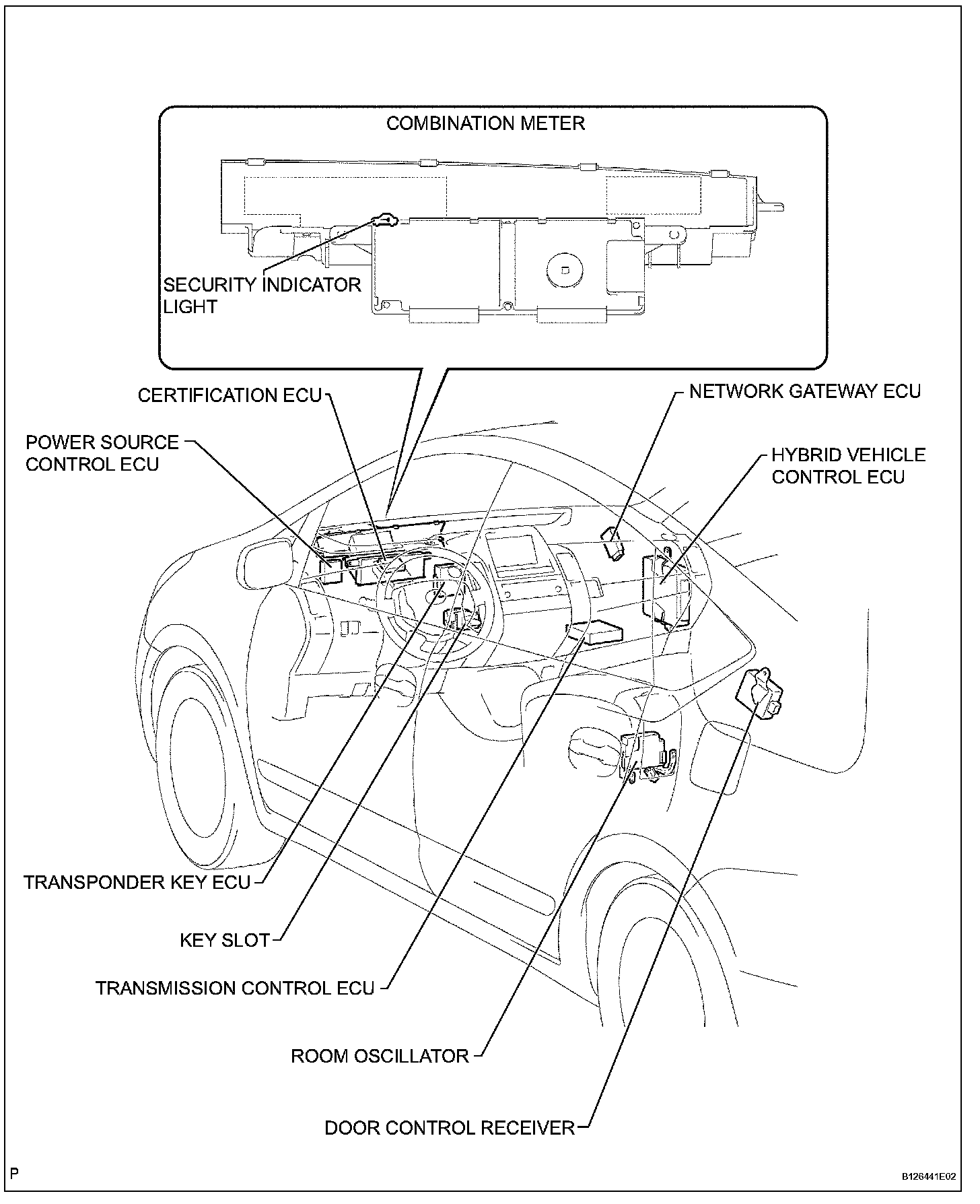

Engine Immobiliser System (w/ Smart Key System):
