System Specifications

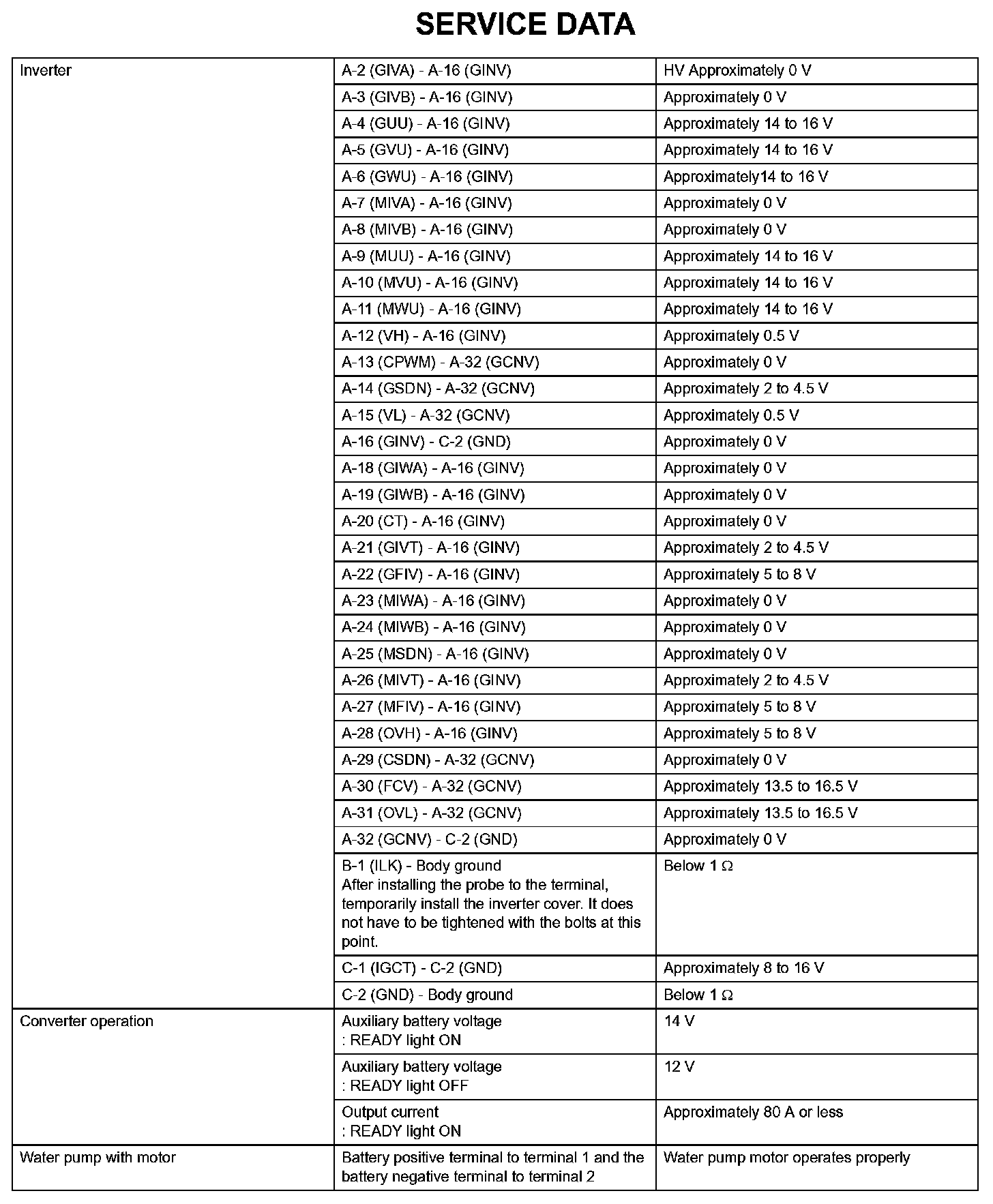

Hybrid Vehicle Control - Service Data (Part 1):

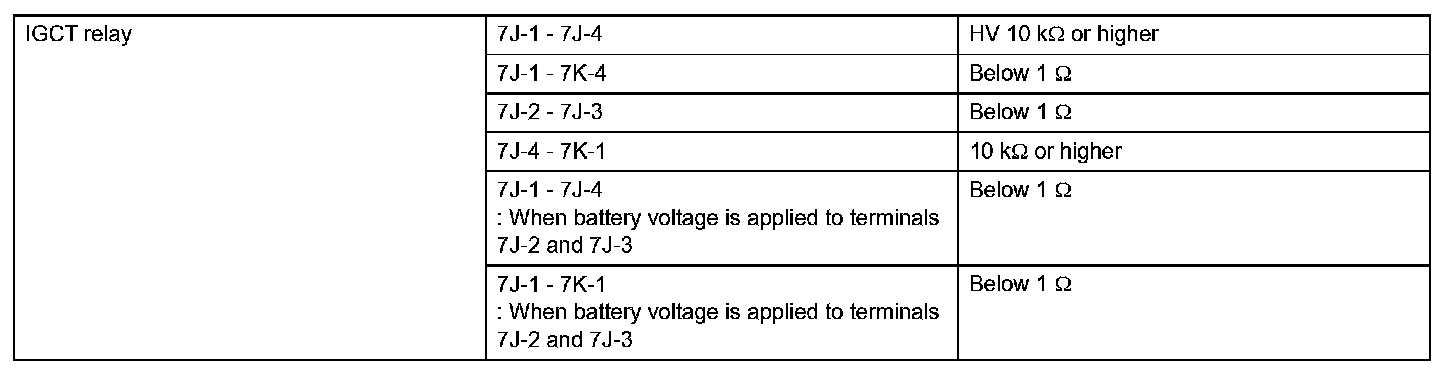

Hybrid Vehicle Control - Service Data (Part 2):
