Canada - Body - Initialization Of Power Window

Bulletin
2618

Issue Date
August 28, 2006

Market
Canada

Title:
INITIALIZATION OF POWER WINDOW DURING PDS

Component
GENERAL INFORMATION

Models
'07 Prius

INTRODUCTION:
If the battery terminal has been disconnected, the "one touch open and close" and "jam protection" functions of the driver's door power window will be inoperative due to loss of the driver's door power window position memory stored in the microcomputer.

Therefore, initialization of the driver's door power window will be necessary after the battery is reconnected.

APPLICABLE VEHICLES:
- 2007 model year Prius vehicles.

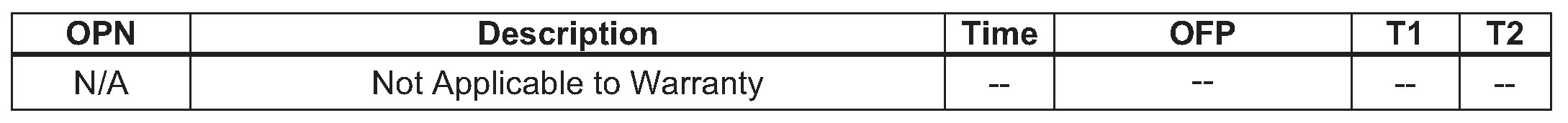

WARRANTY INFORMATION:

INITIALIZATION PROCEDURE:

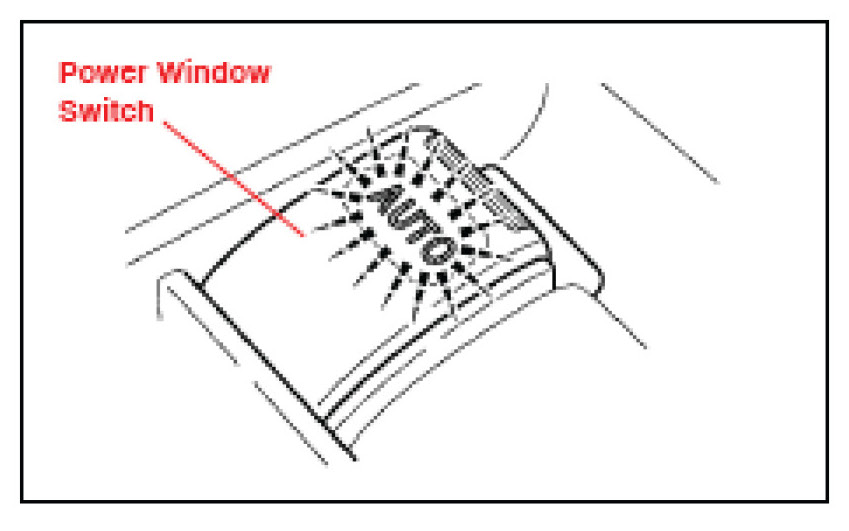

1. Turn the ignition switch to the "ON" position. At this time, the power window switch for the driver's door window should be blinking.
2. Push down and hold the driver's door power window switch to completely open the window.

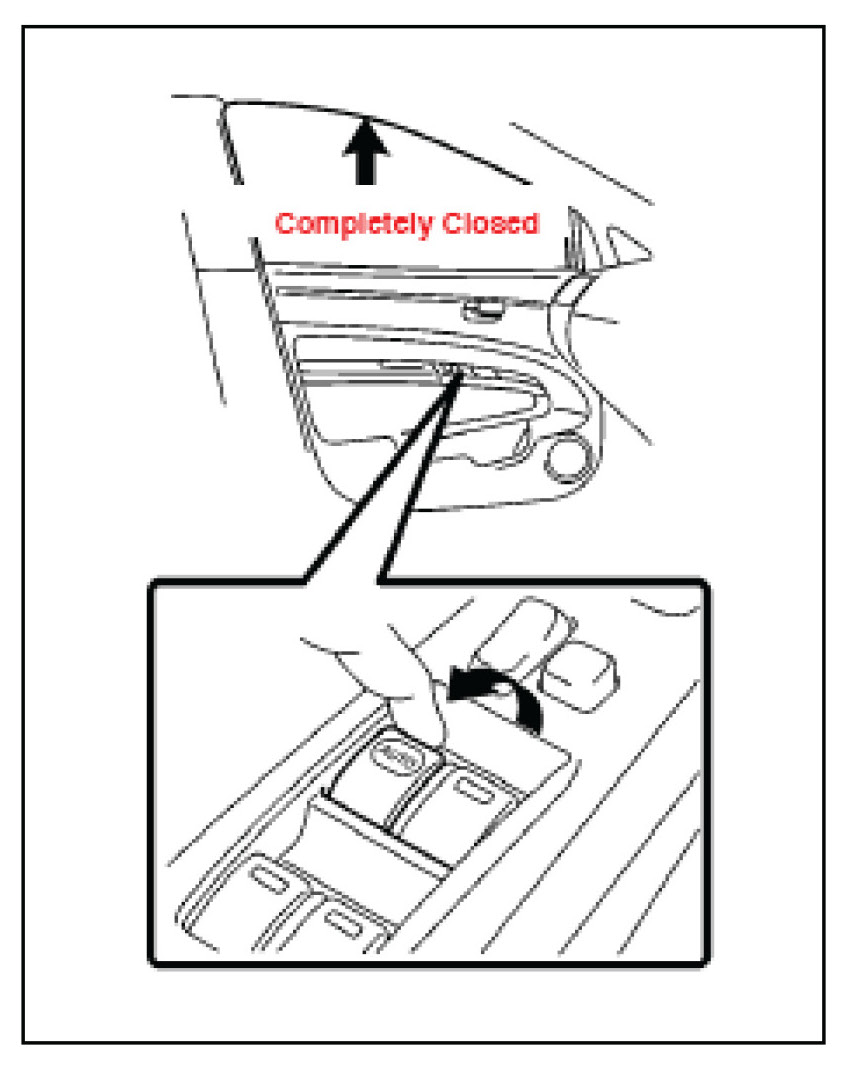

3. Pull up and hold the driver's door power window switch until the window closes. Continue holding the switch for approximately one second until the switch changes from blinking to a constant illumination.
4. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

NOTE:
Jam protection function is enabled through the above initialization procedure.
