Cruise Control Switch Circuit

Cruise Control Switch Circuit

DESCRIPTION

This circuit sends signals to the ECM depending on the cruise control switch condition. The battery supplies positive (+) battery voltage to the cruise control switch. Then terminal CCS of the ECM receives the voltage according to the switch condition.

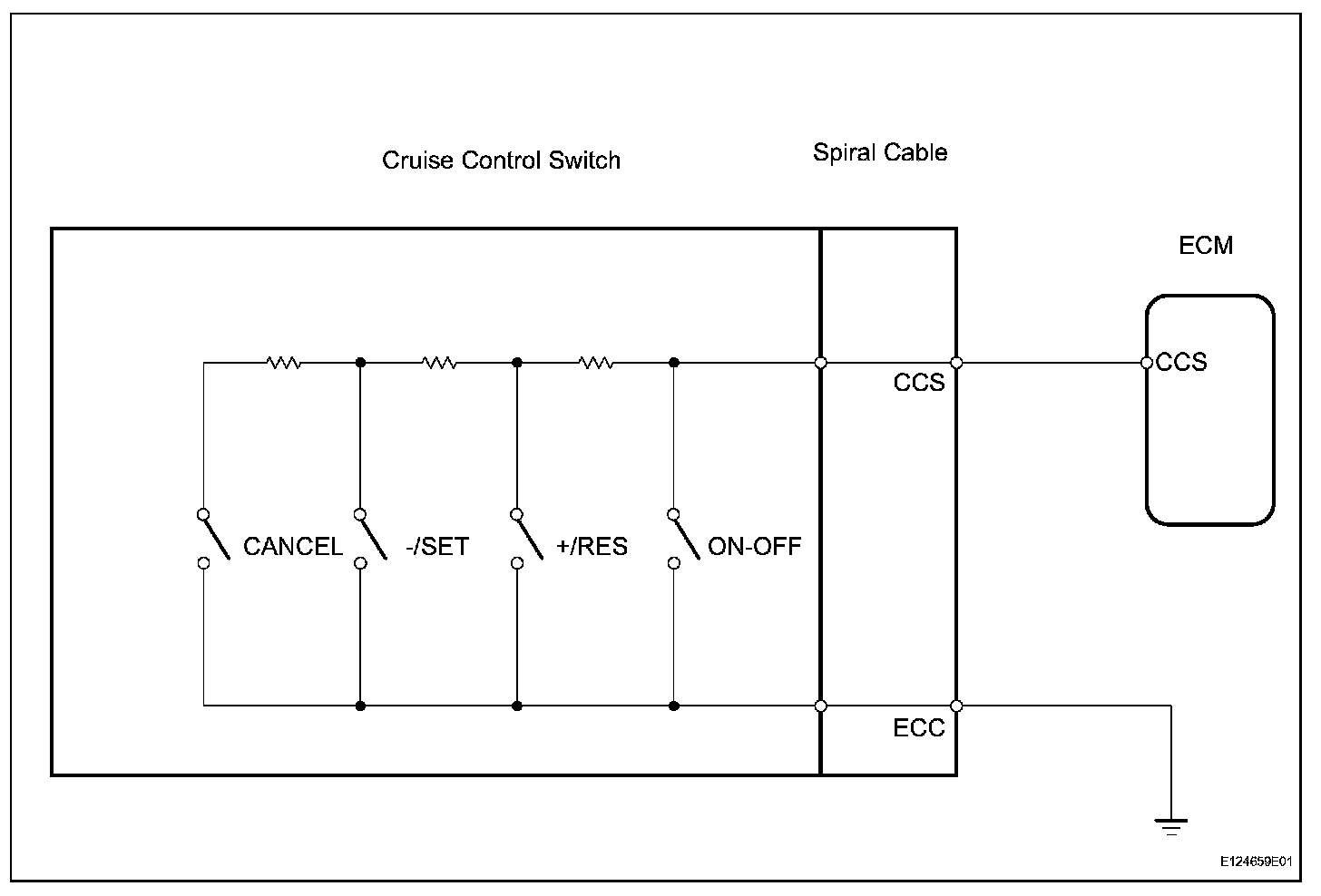

Wiring Diagram:

INSPECTION PROCEDURE

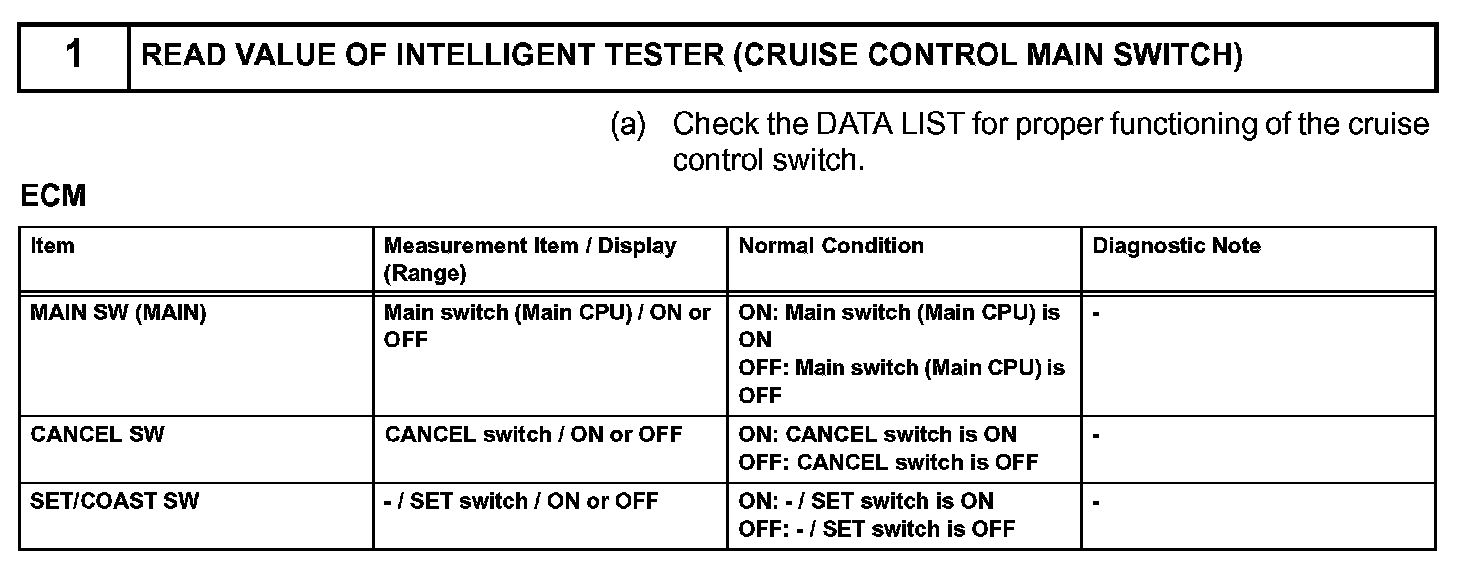

Step 1:

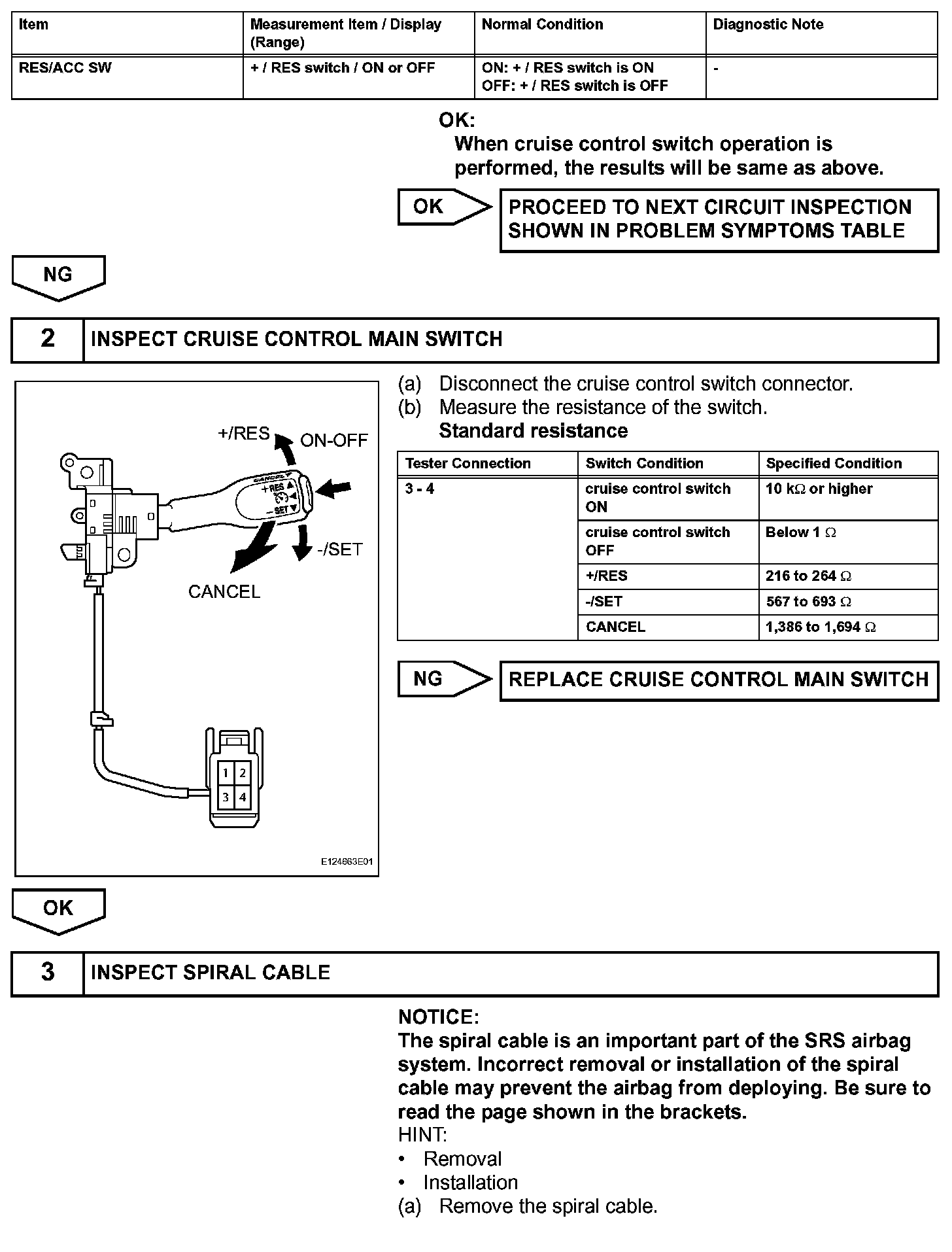

Step 1 (Continued)-3:

Step 3 (Continued):

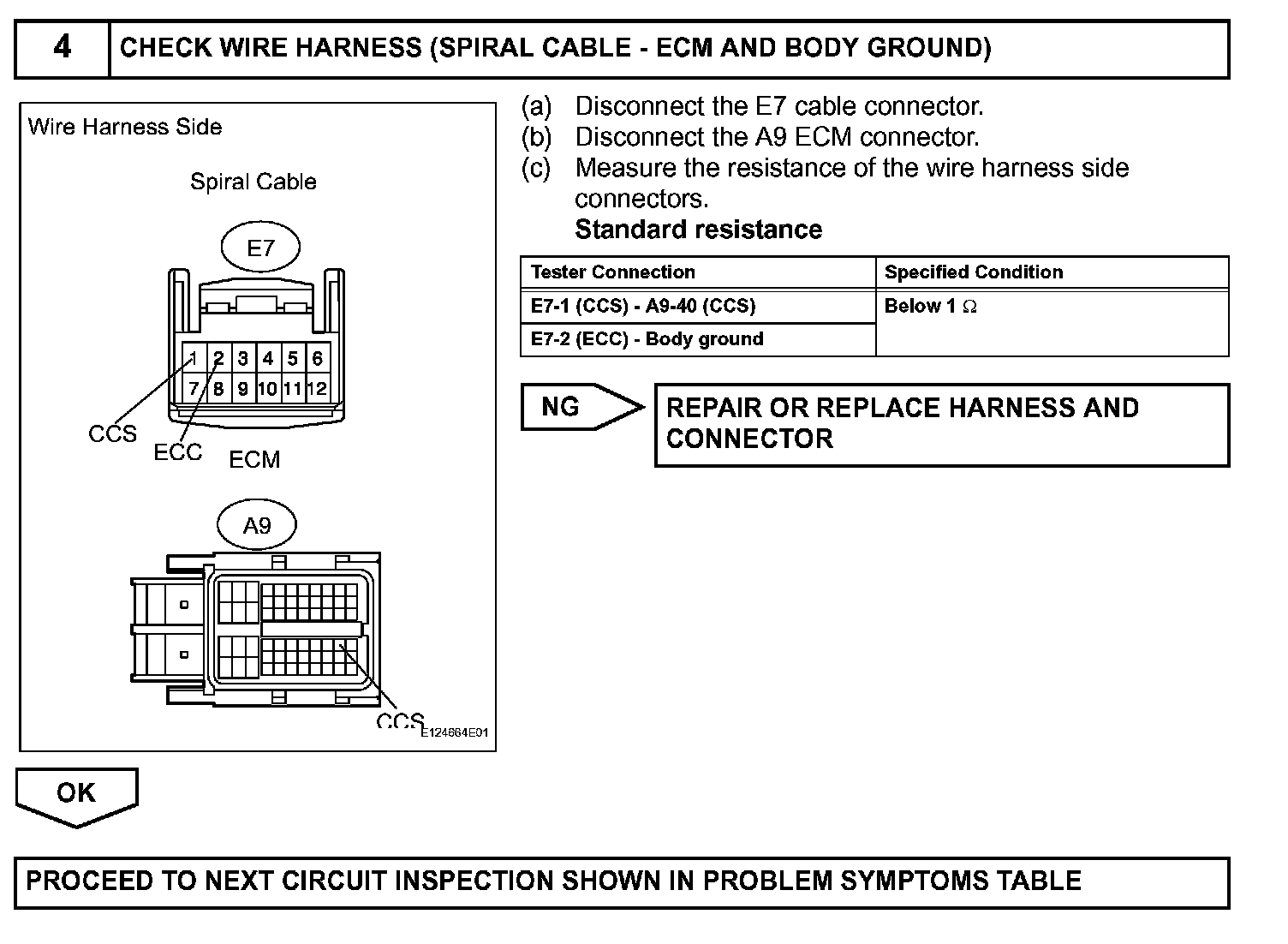

Step 4:
