Home >> Toyota >> 2007 >> RAV4 2WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Yaw Rate Sensor

Yaw Rate Sensor

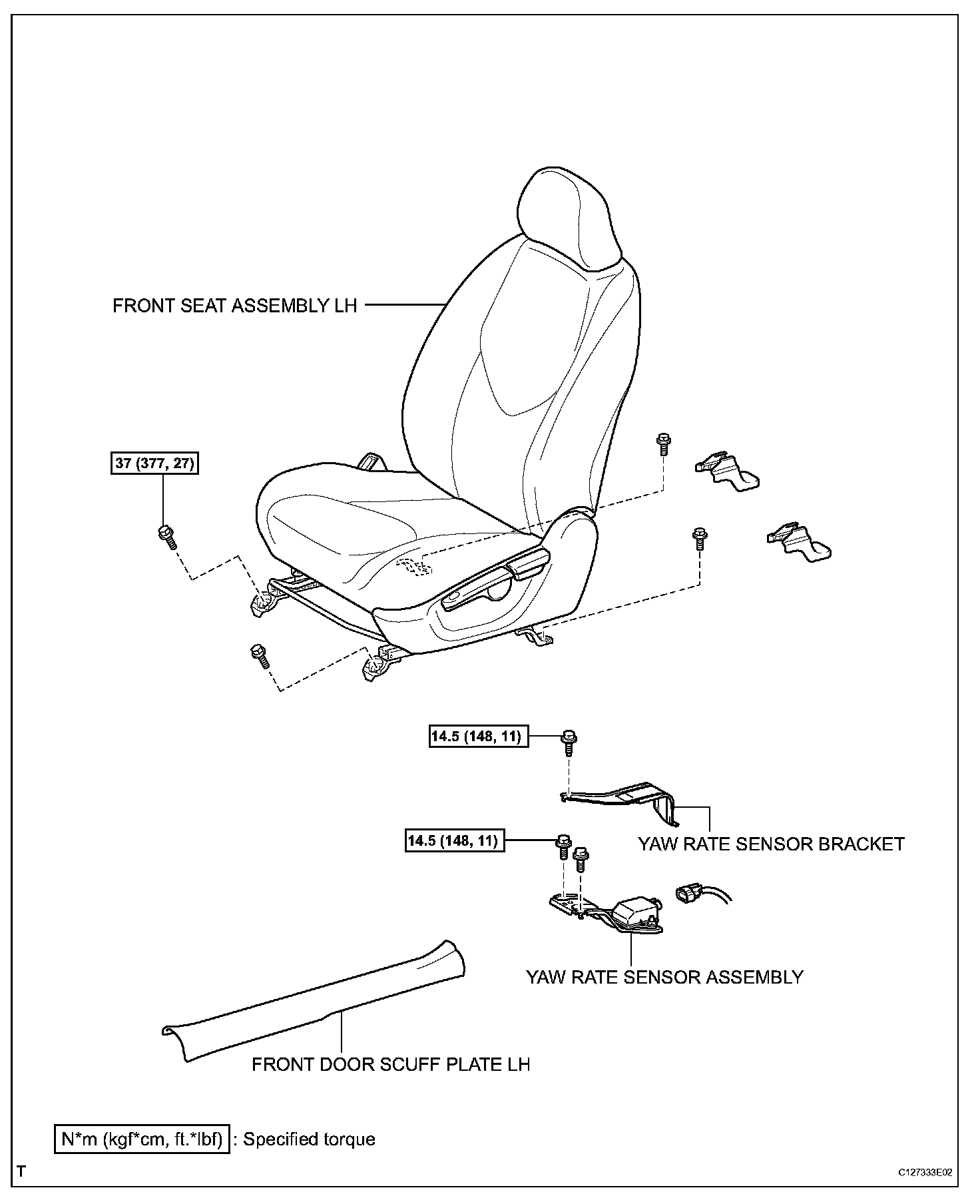

Yaw Rate And Decelration Sensor:
