Cabin Temperature Sensor / Switch: Service and Repair

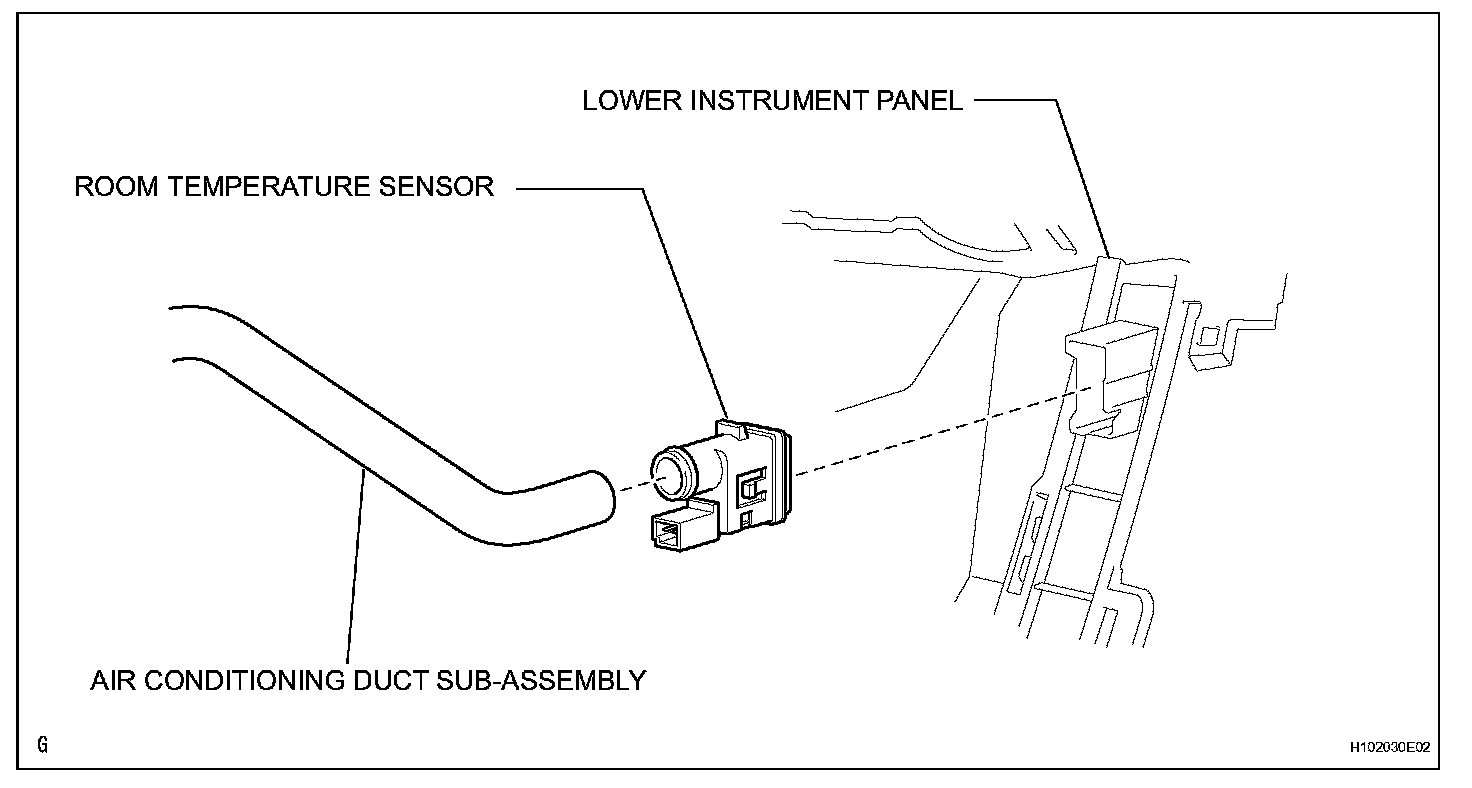

Room Temperature Sensor (for Automatic Air Conditioning System):

Room Temperature Sensor (for Automatic Air Conditioning System)

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL

a. Remove the lower instrument panel.

2. REMOVE ROOM TEMPERATURE SENSOR

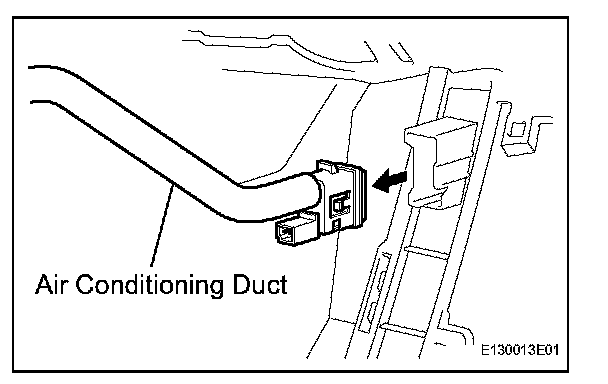

a. Disconnect the duct.
b. Disconnect the connector.
c. Detach the claws and remove the sensor.

INSTALLATION

1. INSTALL ROOM TEMPERATURE SENSOR

a. Attach the claws to install the sensor.
b. Connect the connector.
c. Connect the duct.

2. INSTALL LOWER INSTRUMENT PANEL

a. Install the lower instrument panel.
