Cabin Temperature Sensor / Switch: Testing and Inspection

INSPECTION




1. INSPECT ROOM TEMPERATURE SENSOR

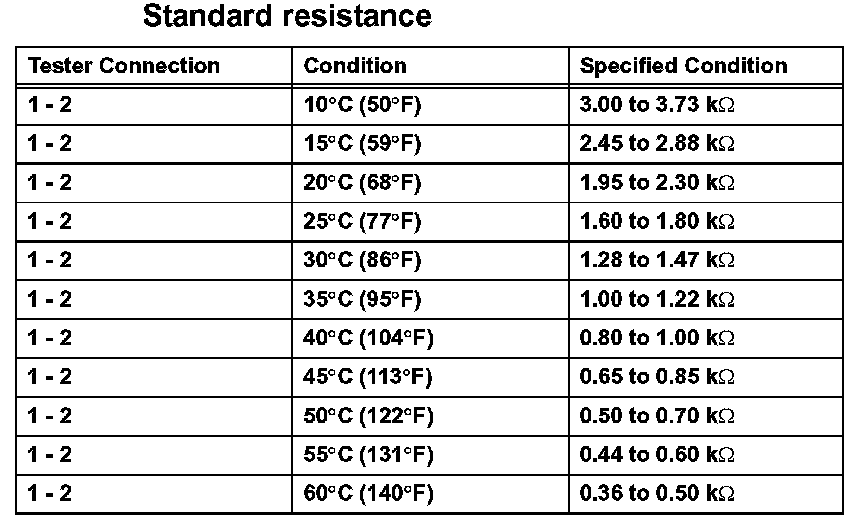

a. Measure the resistance of the sensor.

NOTE:
- Touching the sensor even slightly may change the resistance value. Hold the connector of the sensor.
- When measuring the resistance, the sensor temperature must be the same as the ambient temperature.

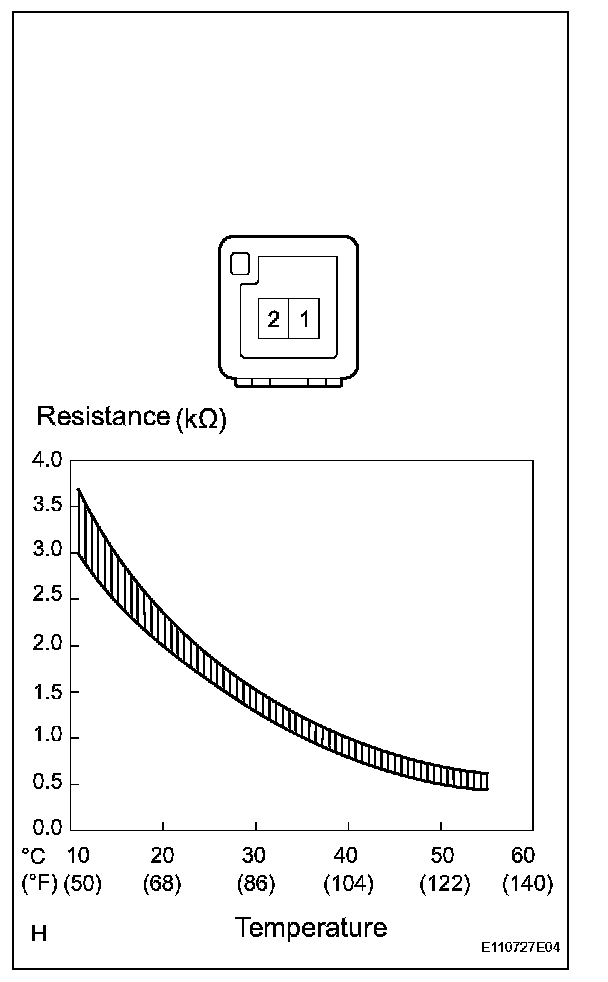

HINT: As the temperature increases, the resistance decreases (see the graph).

If the result is not as specified, replace the room temperature sensor.
