Air Fuel Ratio Sensor

INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

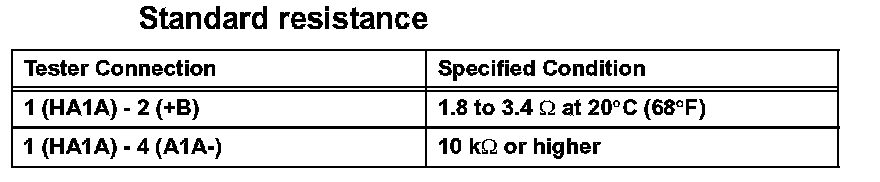

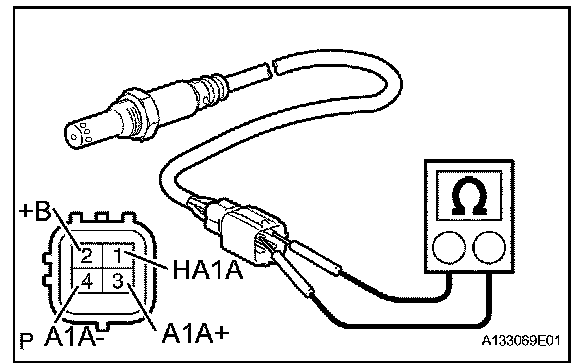

a. Measure the resistance of the sensor.
If the resistance is not as specified, replace the sensor.
