On-Vehicle Inspection

ON-VEHICLE INSPECTION

1. CHECK AIR FUEL RATIO COMPENSATION SYSTEM

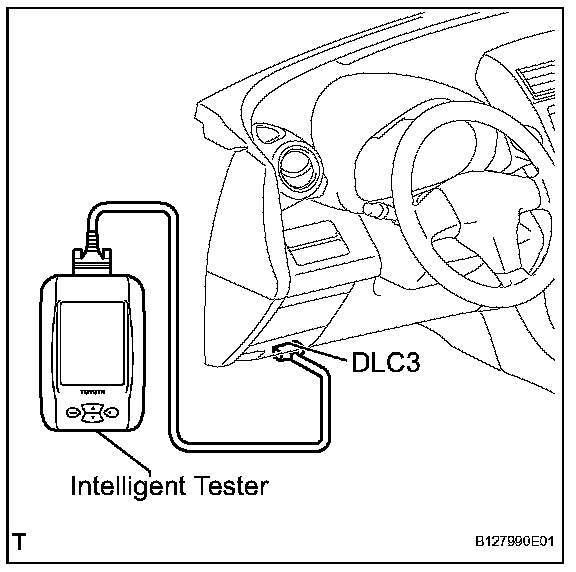

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch ON.
c. Select the following menu items: Data List / A/FS B1 S1 and O2S B1 S2.
d. Warm up the A/F sensor with the engine speed at 2,500 rpm for approximately 2 minutes.

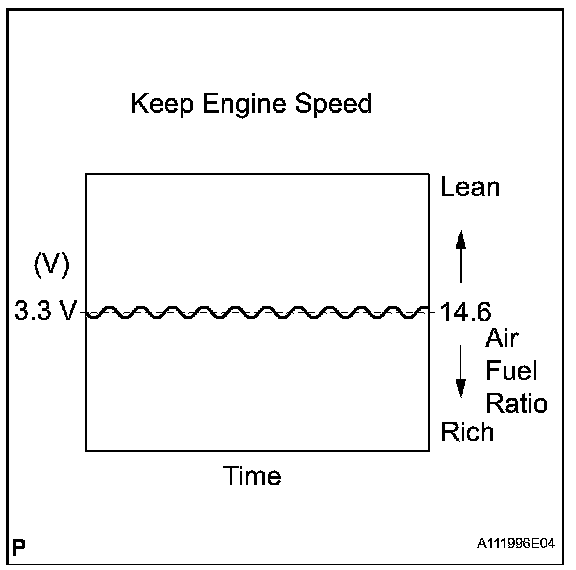

e. Keep the engine speed at 2,500 rpm and confirm that the display of "A/FS B1 S1" is as shown in the illustration.

HINT:
- The illustration may slightly differ from the display on the intelligent tester.
- Only the intelligent tester displays the waveform of the A/F sensor.




f. Confirm that the display of "O2S B1 S2" changes between 0 to 1 V with the engine speed at 2,500 rpm.

OK: The voltage output oscillates more than 8 times in 10 seconds.

NOTE:
- Perform the check immediately after warming the engine up.
- If the voltage variation could not be verified, warm up the A/F sensor again. If it could not be verified even after warming up the sensor again, check for DTCs.
