Transmission Position Sensor/Switch: Service and Repair

PARK / NEUTRAL POSITION SWITCH

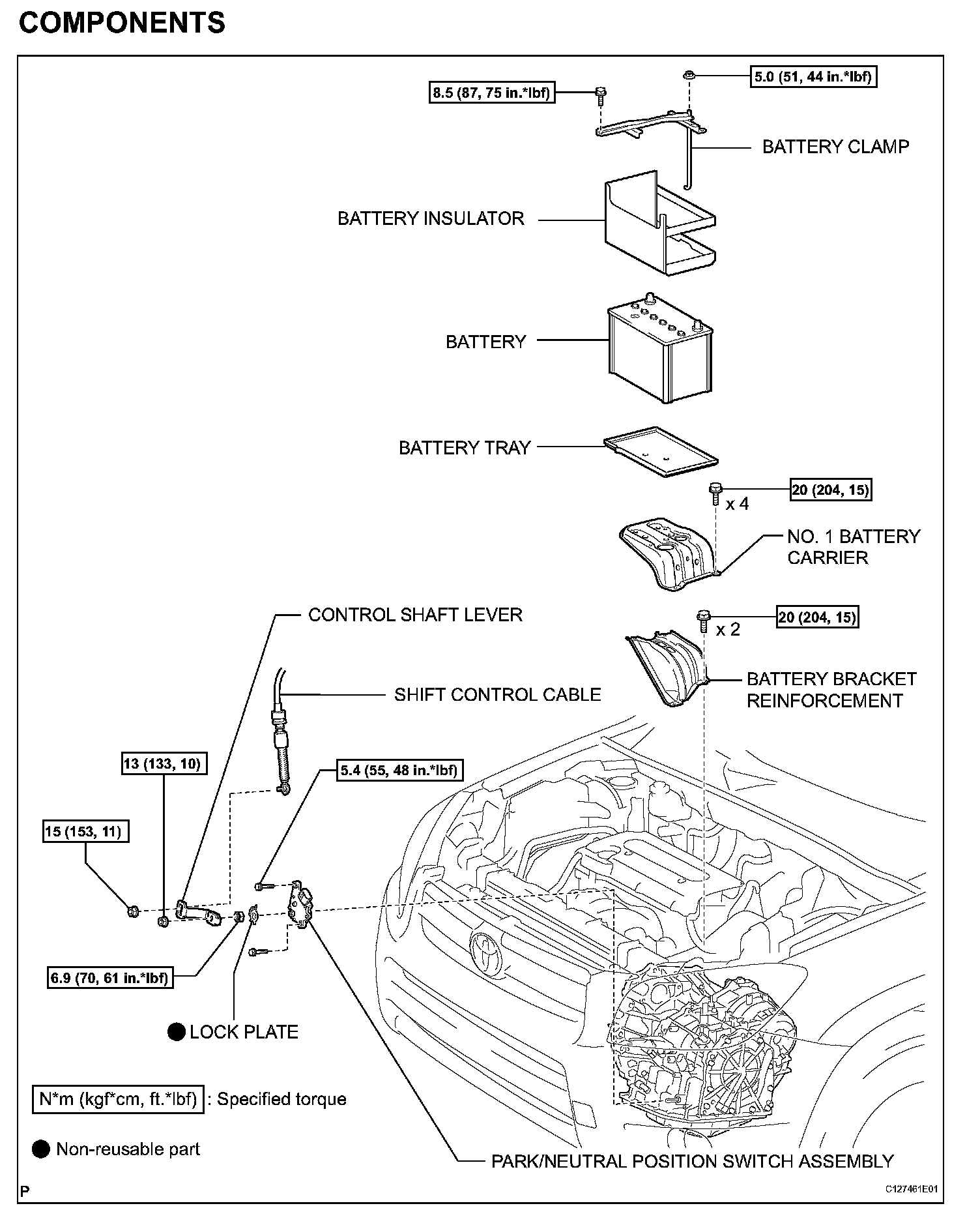

COMPONENTS:

ON-VEHICLE INSPECTION
1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Apply the parking brake and turn the ignition switch on (IG).
(b) Depress the brake pedal and check that the engine starts when the shift lever is on N or P, but does not start in other positions.
(c) Check that the back-up light illuminates and the reverse warning buzzer sounds when the shift lever is on R, but do not function in other positions.

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE BATTERY
(a) Loosen the nut and remove the bolt and battery clamp.
(b) Remove the battery.
(c) Remove battery tray.
(d) Remove the 4 bolts and battery carrier.
(e) Remove the 2 bolts and battery bracket reinforcement.

3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Disconnect the switch connector.

(b) Remove the nut and disconnect the control cable from the control shaft lever.

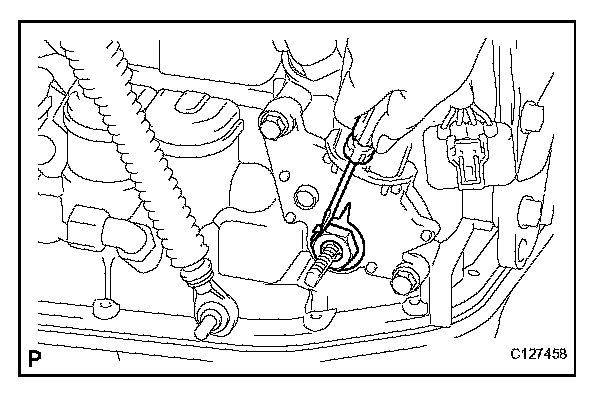

(d) Using a screwdriver, pry off the lock plate.

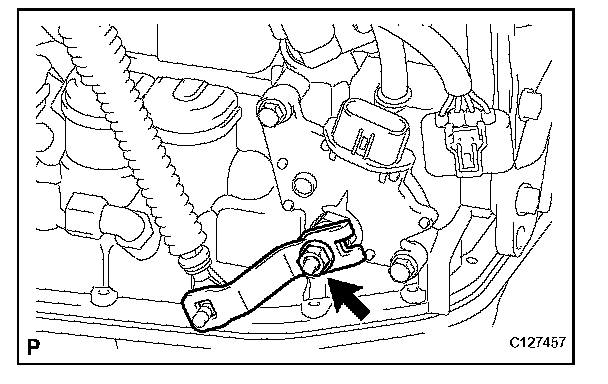

(e) Remove the nut and lock plate.

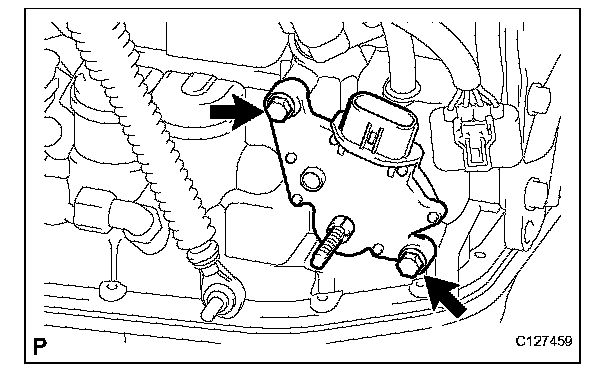

(f) Remove the 2 bolts and pull out the switch.

INSPECTION

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Measure the resistance of the switch when the shift lever is moved to each position.

Standard resistance:

ADJUSTMENT

1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Loosen the 2 bolts of the switch and set the shift lever to the N position.
(b) Align the groove and neutral basic line.
(c) Hold the switch in this position and tighten the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
(d) After adjustment, perform the inspection.
