Ignition Coil: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 ENGINE COVER

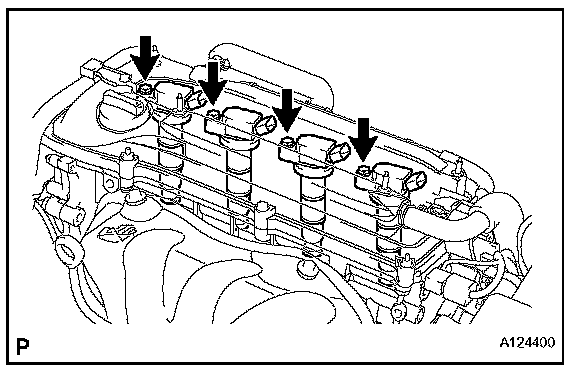

3. REMOVE IGNITION COIL ASSEMBLY
a. Disconnect the 4 ignition coil connectors.




b. Remove the 4 bolts and 4 ignition coils.

INSTALLATION

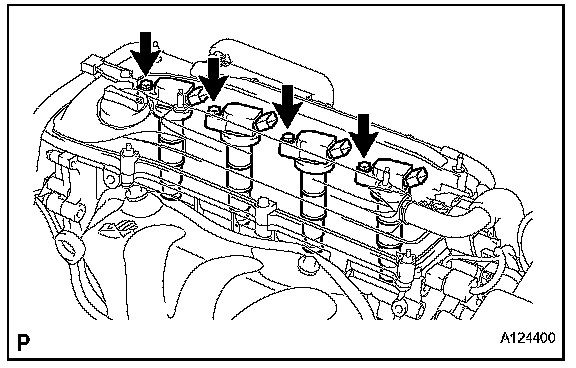

1. INSTALL IGNITION COIL ASSEMBLY




a. Install the 4 ignition coils with the 4 bolts.

Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)

b. Connect the 4 ignition coil connectors.

2. INSTALL NO. 1 ENGINE COVER
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
