Air Bag Control Module: Service and Repair
Center Airbag Sensor Assembly:
Center Airbag Sensor Assembly
REMOVAL
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it, Refer to Restraint Systems Service Precautions.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
3. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
4. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
5. REMOVE SWITCH BASE
6. REMOVE CONSOLE CUP HOLDER BOX
7. REMOVE UPPER REAR CONSOLE PANEL SUBASSEMBLY
8. REMOVE CONSOLE REAR END PANEL
9. REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH
10. REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH
11. REMOVE REAR CONSOLE BOX ASSEMBLY

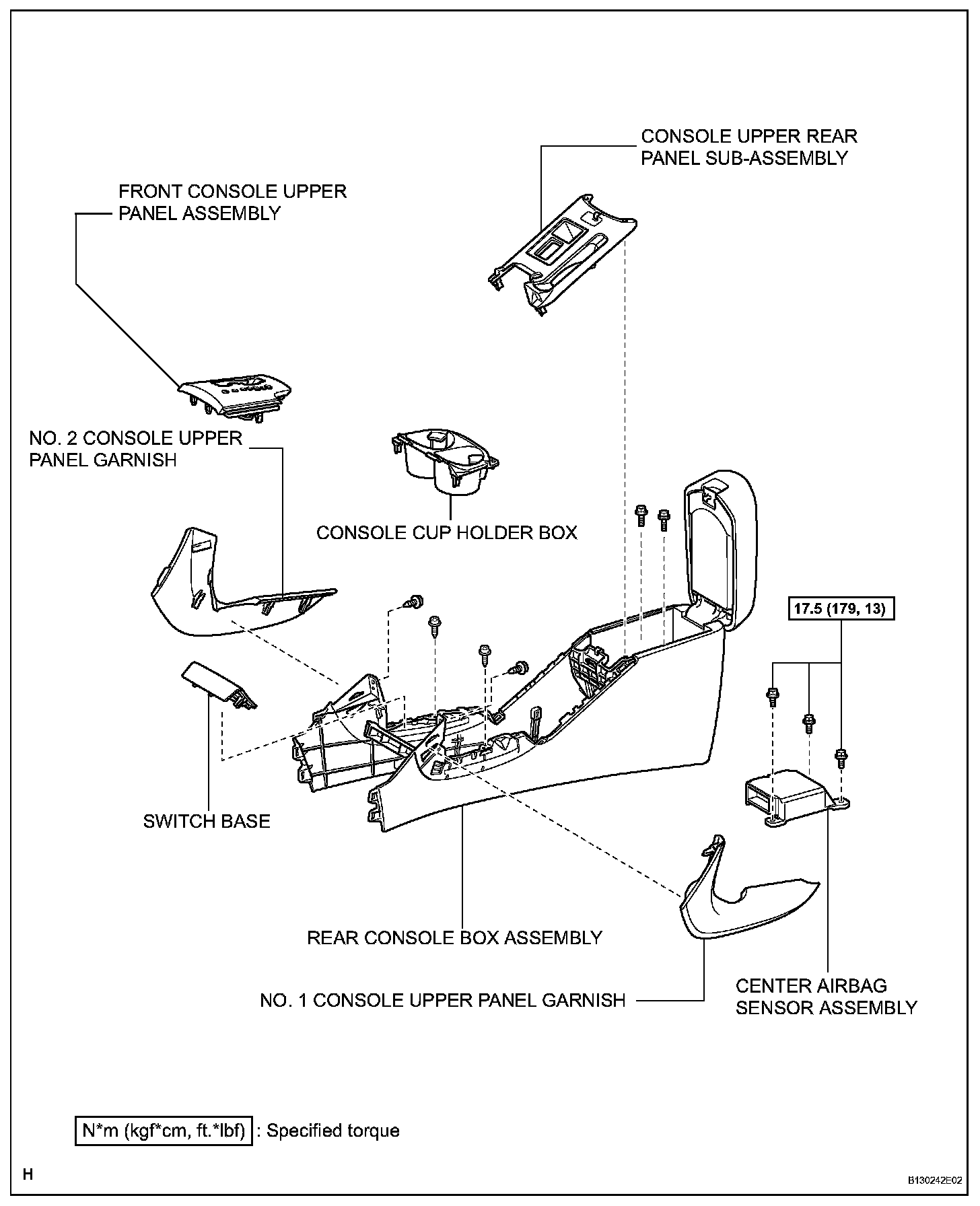

12. REMOVE CENTER AIRBAG SENSOR ASSEMBLY
a. Disconnect the airbag sensor connectors.

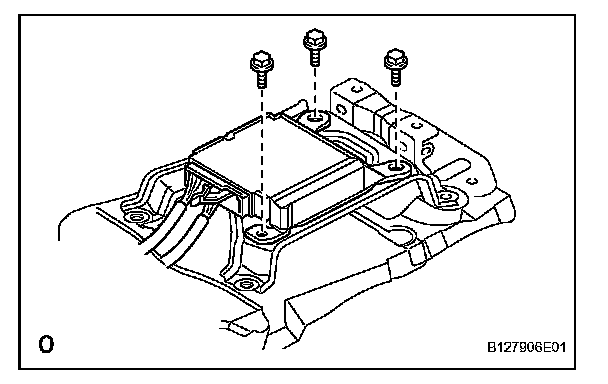

b. Remove the 3 bolts and airbag sensor.
INSTALLATION
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it, Refer to Restraint Systems Service Precautions.
1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY

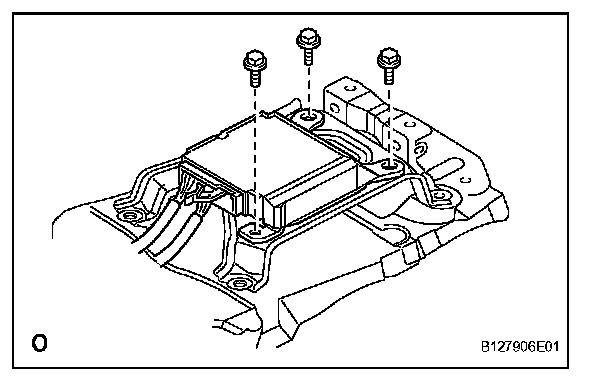

a. Install the airbag sensor with the 3 bolts.
Torque: 17.5 N.m (179 kgf.cm, 13 ft.lbf)
NOTE:
- If the airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
b. Connect the airbag sensor connectors.
2. INSTALL REAR CONSOLE BOX ASSEMBLY
3. INSTALL NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH
4. INSTALL NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH
5. INSTALL CONSOLE REAR END PANEL
6. INSTALL UPPER REAR CONSOLE PANEL SUBASSEMBLY
7. INSTALL CONSOLE CUP HOLDER BOX
8. INSTALL SWITCH BASE
9. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
10. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
11. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
13. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
