Oil Pan, Engine
Oil PanOil drain plug x Oil pan 40 Nm (408 kgf-cm, 30 ft. lbs.)

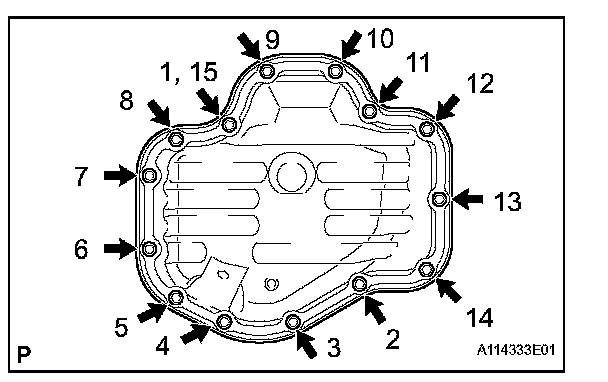

Uniformly tighten the 12 bolts and 2 nuts in the sequence shown in the illustration.
Torque 9.0 Nm (92 kgf-cm, 80 inch lbs.)
Oil drain plug x Oil pan 40 Nm (408 kgf-cm, 30 ft. lbs.)
Uniformly tighten the 12 bolts and 2 nuts in the sequence shown in the illustration.
Torque 9.0 Nm (92 kgf-cm, 80 inch lbs.)
