Repair and Diagnosis: Testing and Inspection
CUSTOMIZE PARAMETERSNOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.
1. AIR CONDITIONING SYSTEM

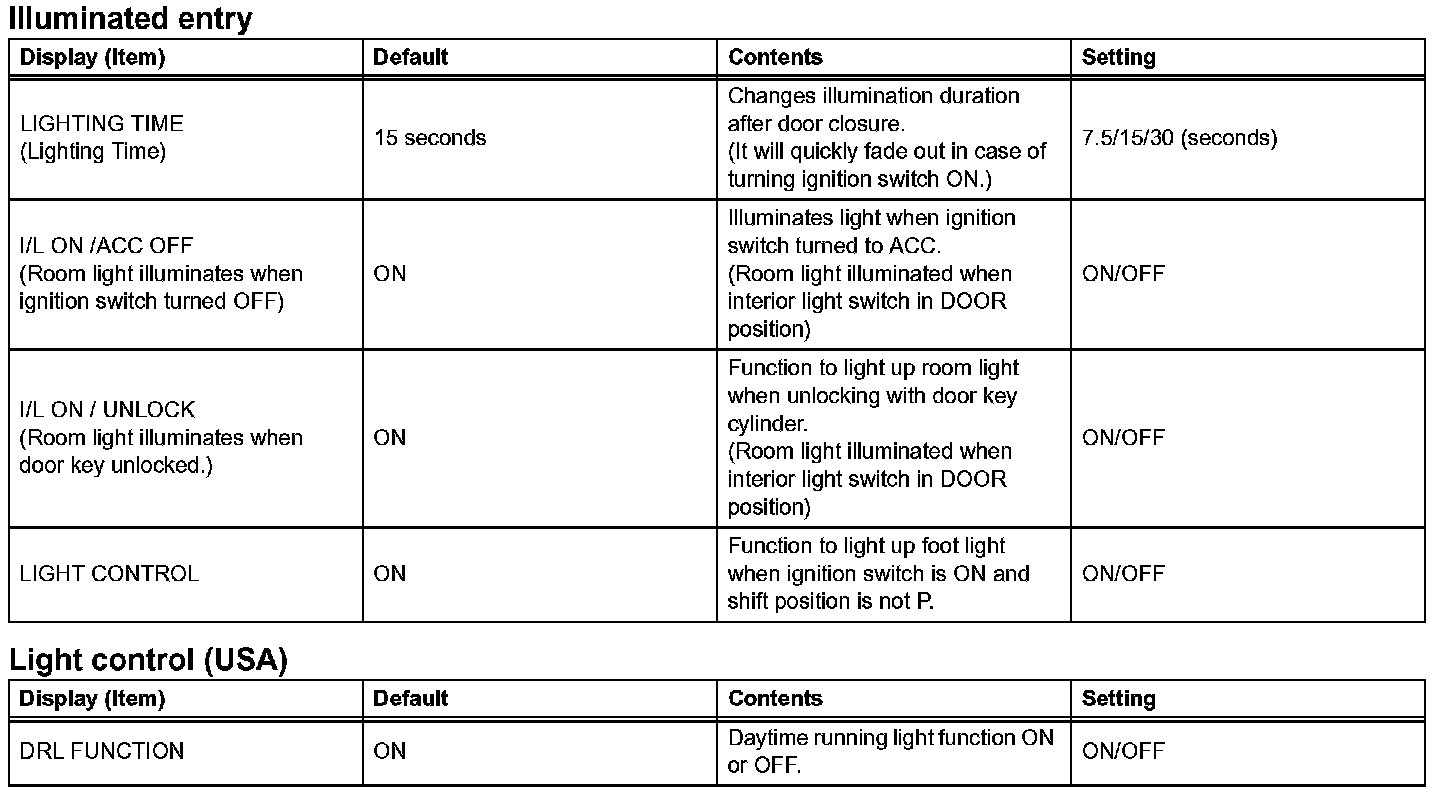

2. LIGHTING SYSTEM

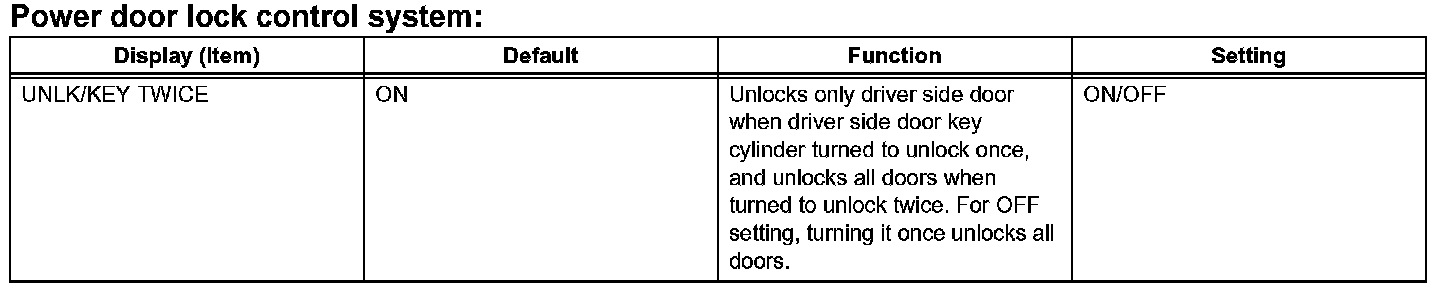

3. POWER DOOR LOCK CONTROL SYSTEM
4. WIRELESS DOOR LOCK CONTROL SYSTEM

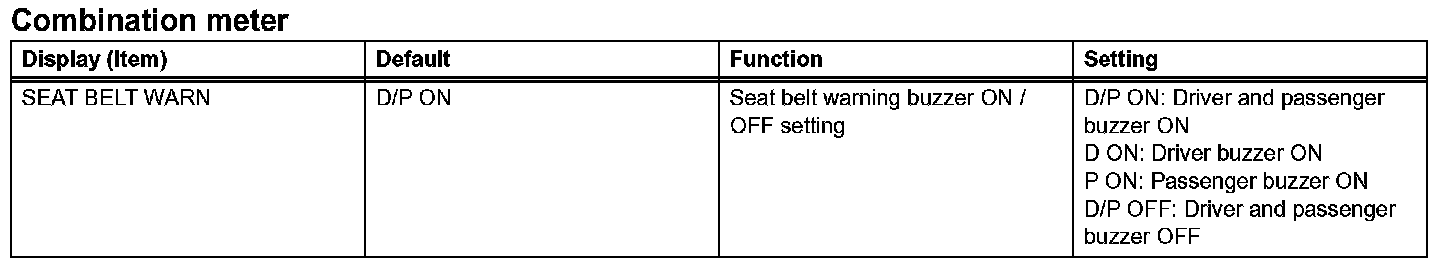

5. METER / GAUGE SYSTEM
