Front Passenger Side Power Window Switch
Front Passenger Side Power Window Switch
INSPECTION
1.

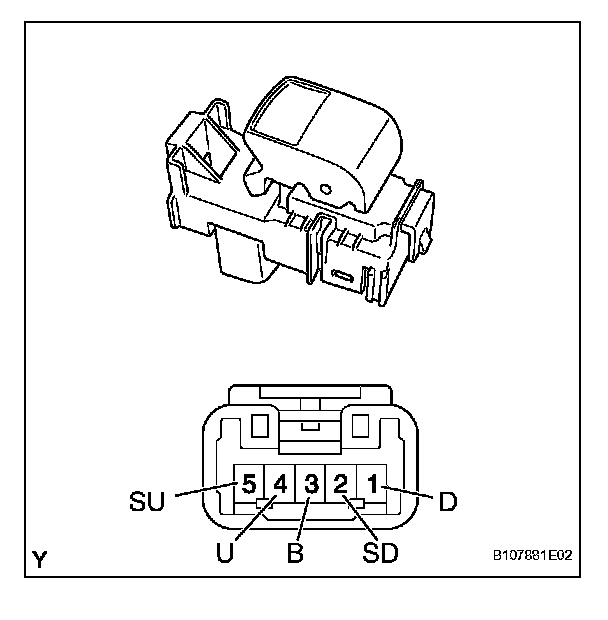

INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
a.

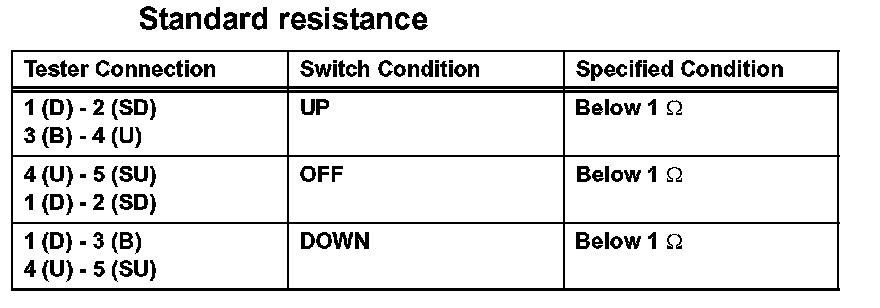

Measure the resistance of the switch when the switch is operated.
If the result is not as specified, replace the regulator switch assembly.
