Power Window Master Switch

INSPECTION

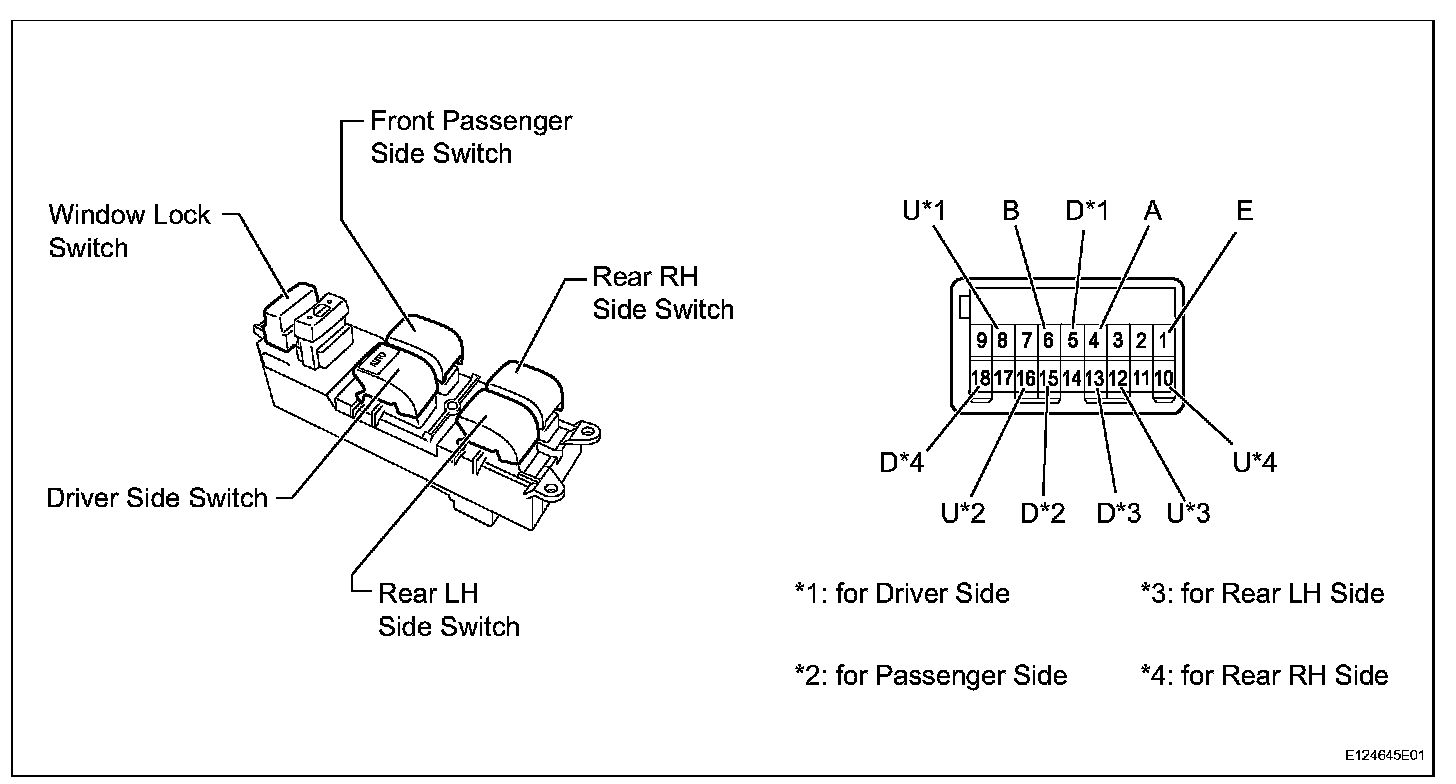

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

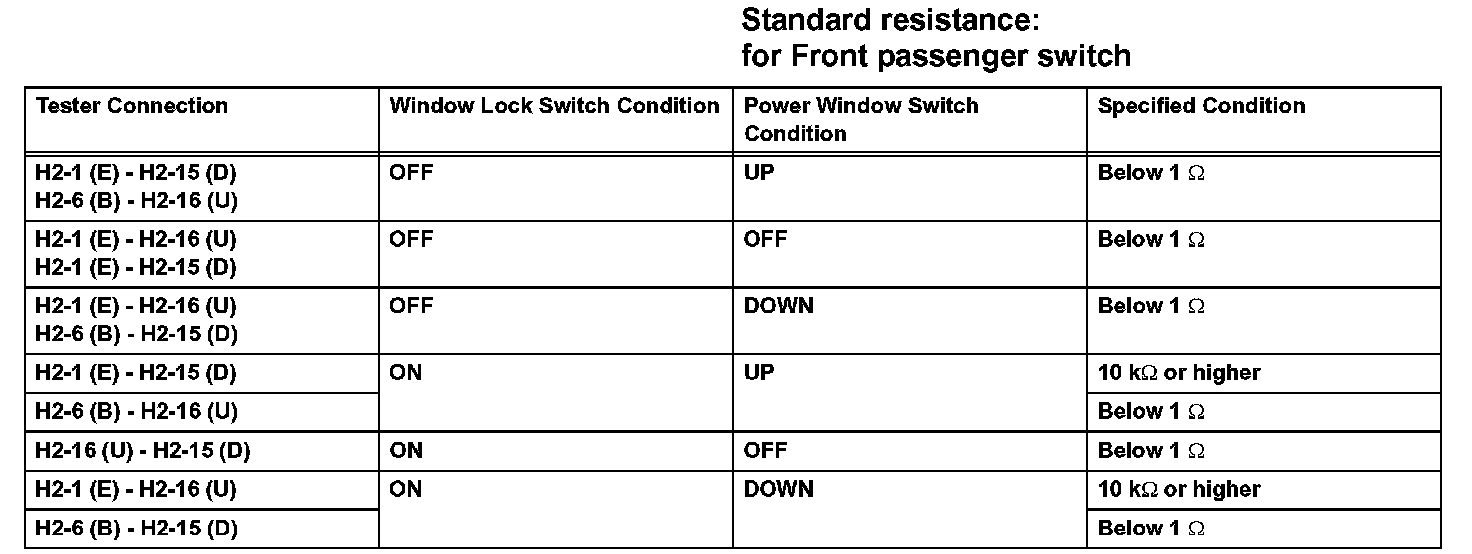

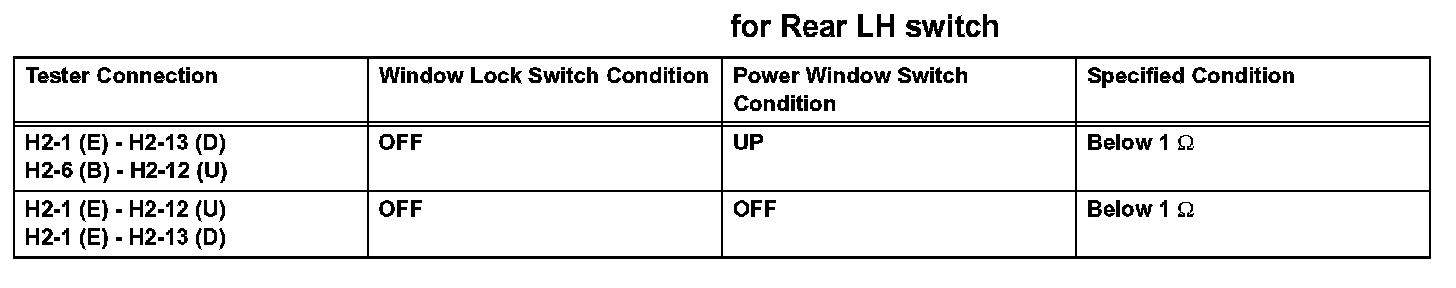

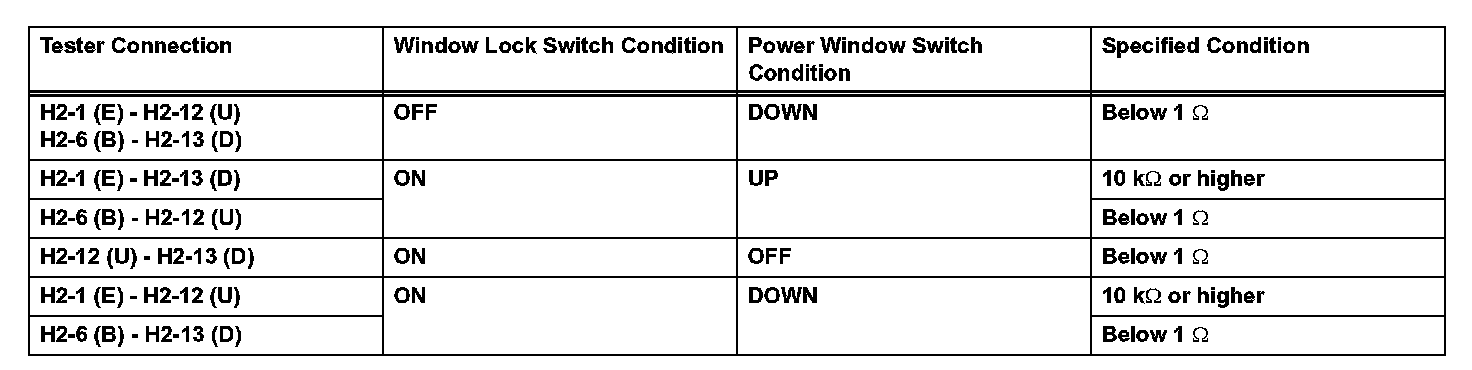

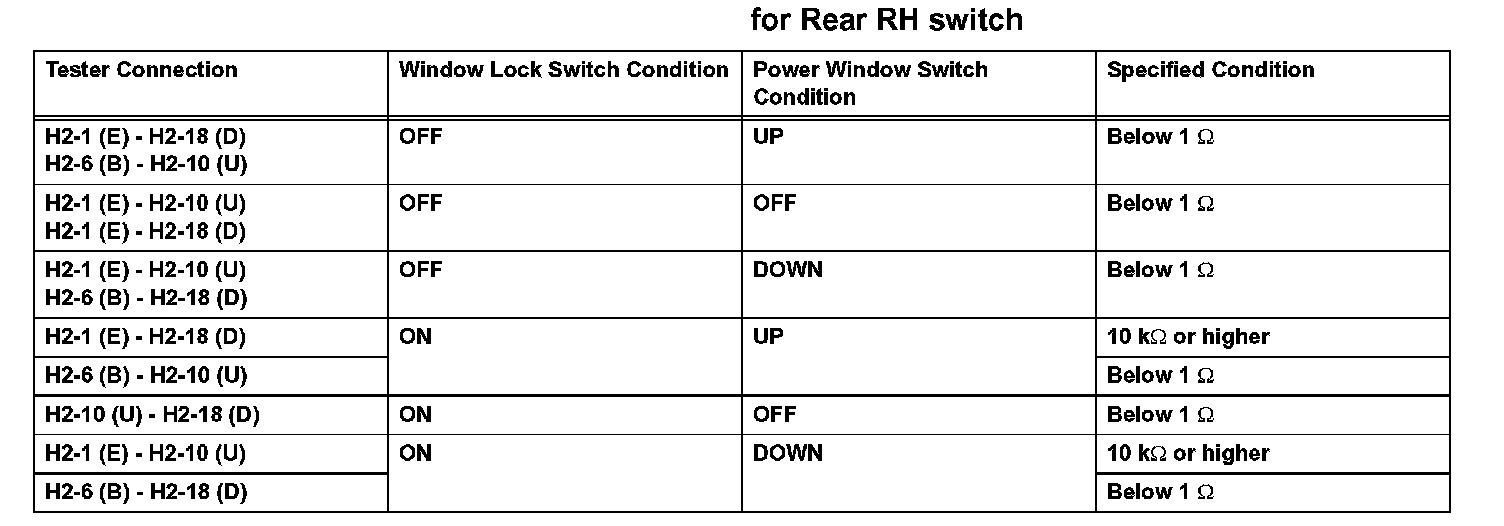

a. Measure the resistance of the power switch.

If the result is not as specified, replace the switch assembly.

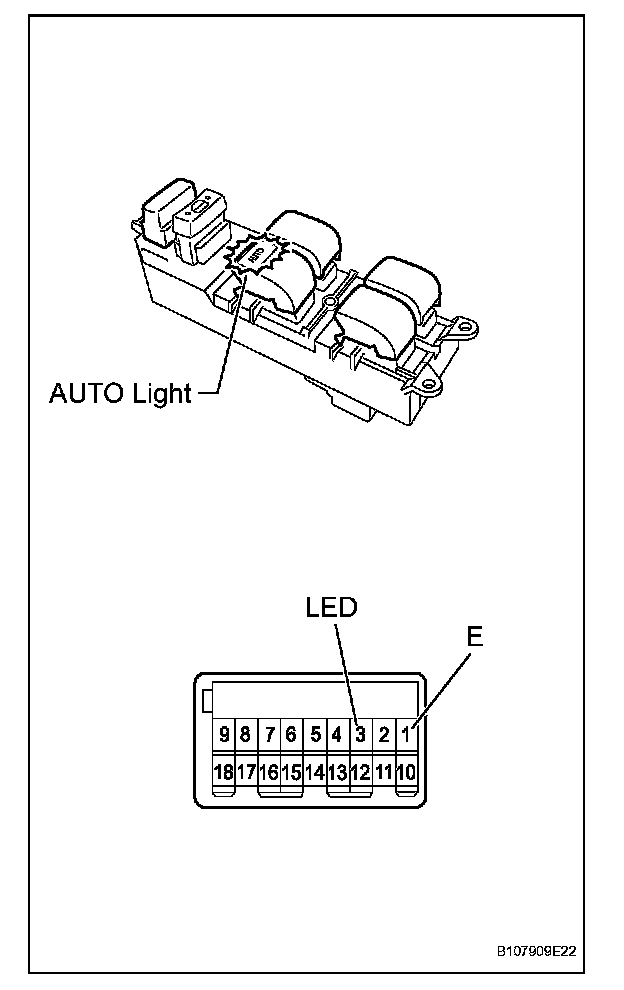

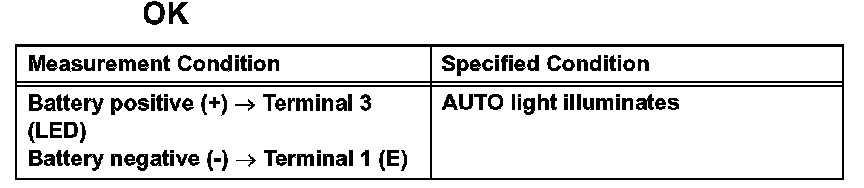

b. Apply battery voltage to the master switch and check that the AUTO light illuminates.

If the result is not as specified, replace the switch assembly.
