Stereo Component Speaker

Stereo Component Speaker:

Stereo Component Speaker

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE BACK DOOR CENTER GARNISH
3. REMOVE BACK DOOR SIDE GARNISH LH
4. REMOVE BACK DOOR SIDE GARNISH RH
5. REMOVE BACK DOOR TRIM BOARD
6. REMOVE REAR STEREO COMPONENT SPEAKER ASSEMBLY




a. Disconnect the connector.
b. Using a drill bit with a diameter of less than 4 mm (0.16 in.), drill out the 3 rivet heads and remove the speaker.

NOTE:
- Do not drill the rivet at an angle as this will cause damage to the drill and drill hole. Line up the drill and rivet, and carefully drill out the rivet head.
- Be careful as the cut rivet will be very hot.

c. Continue drilling and push out the remaining rivet fragments.
d. Using a vacuum cleaner, remove the rivet fragments and shavings from the inside of the door.

INSTALLATION

1. INSTALL REAR STEREO COMPONENT SPEAKER ASSEMBLY













a. Using an air riveter or hand riveter, install the speaker with 4 new rivets.

NOTE:

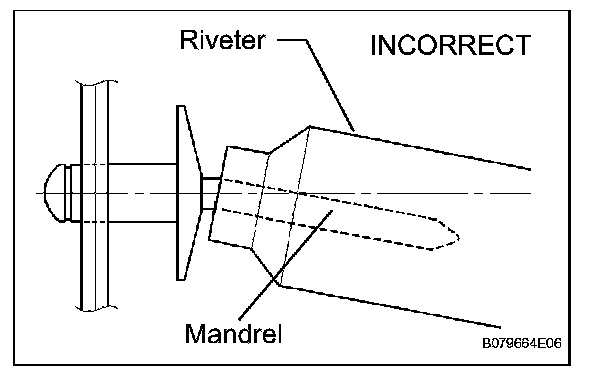

- Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
- Confirm that the rivets are seated properly against the speaker. Do not tilt the riveter when installing the rivet to the speaker. Do not leave any space between the rivet head and speaker.
- Do not leave any space between the speaker and door. Firmly hold together the 2 items while installing the rivet.

b. Connect the connector.

2. INSTALL BACK DOOR TRIM BOARD
3. INSTALL BACK DOOR SIDE GARNISH RH
4. INSTALL BACK DOOR SIDE GARNISH LH
5. INSTALL BACK DOOR CENTER GARNISH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
