Only Driver Lock/Unlock Functions Do Not Operate

Only Driver Door LOCK / UNLOCK Functions do not Operate

DESCRIPTION
The main body ECU receives lock / unlock switch signals and activates the door lock motor accordingly.

Wiring Diagram:

Step 1-2:

Step 2(Continued)-4:

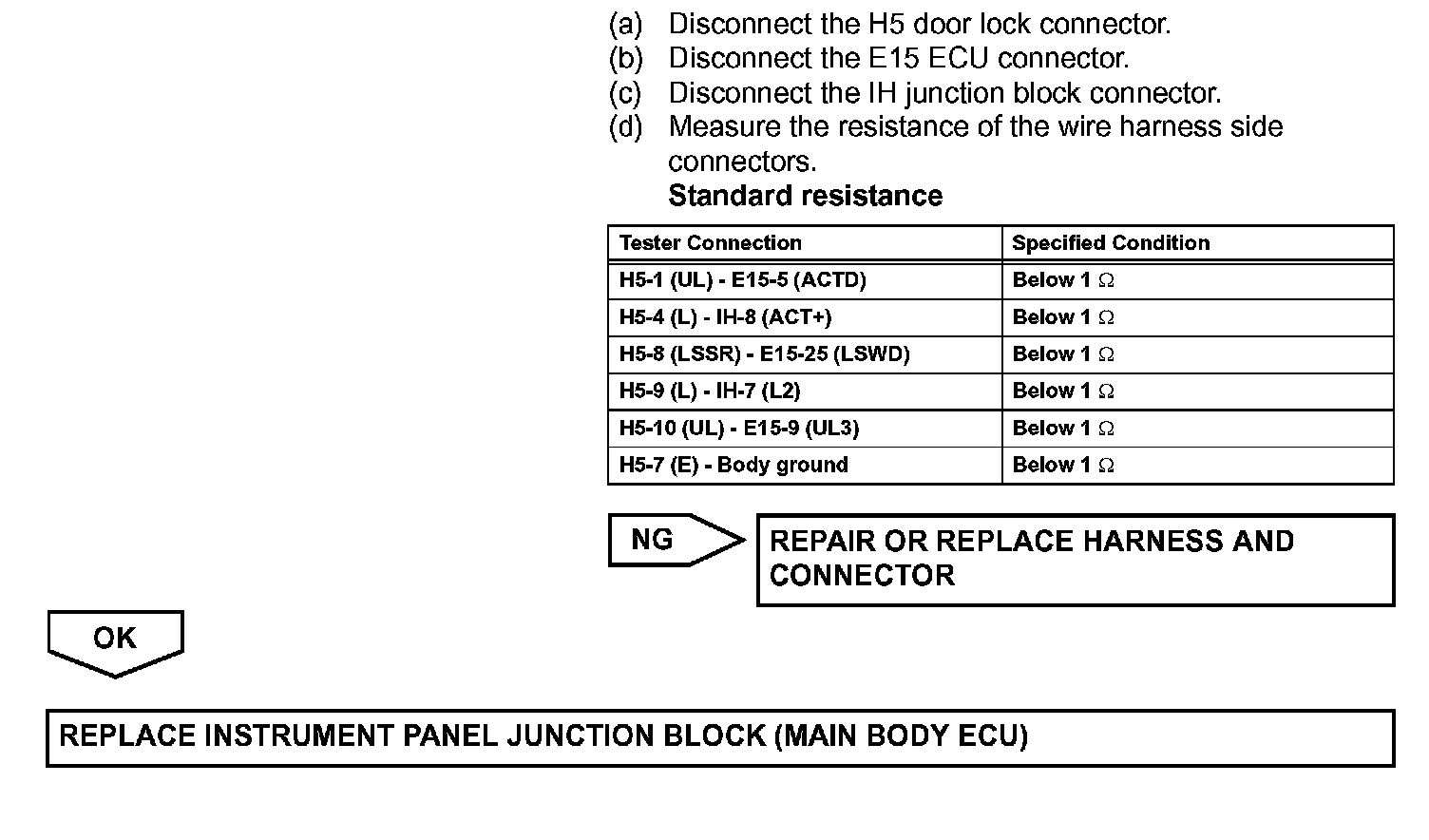

Step 4(Continued):

INSPECTION PROCEDURE
