Brake Warning Light Remains ON
Brake Warning Light Remains ONDESCRIPTION
If any of the following conditions are detected, the brake warning light remains on:
1. The ECU connectors are disconnected from the skid control ECU.
2. The brake fluid level is insufficient.
3. The parking brake is applied.
4. The EBD is defective.

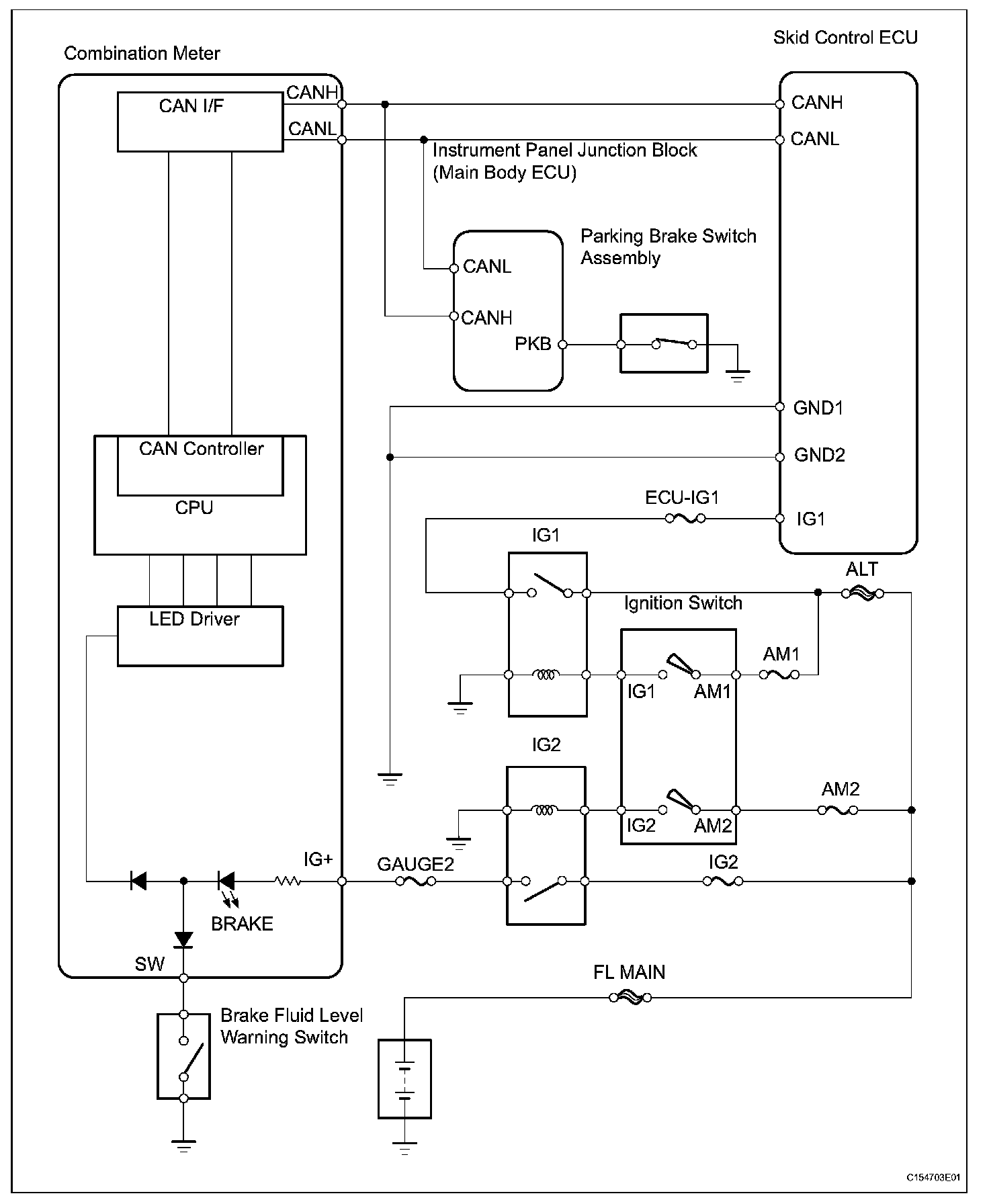

Wiring Diagram:
Step 1-4:
Step 4(continued)-6:
Step 7-8:
Step 9-10:
Step 11:
INSPECTION PROCEDURE
