Rear
INSPECTION1. CHECK BRAKE CYLINDER AND PISTON
(a) Check the cylinder bore and piston for rust or scoring.
If necessary, replace the cylinder and piston.
2. CHECK PAD LINING THICKNESS
(a) Using a ruler, measure the pad lining thickness.
Standard thickness: 10.5 mm (0.413 inch)
Minimum thickness: 1.0 mm (0.039 inch)
If the pad lining thickness is equal to or less than the minimum, replace the pad.
3. CHECK REAR DISC BRAKE PAD SUPPORT PLATE
(a) Check the 2 plates as follows. If necessary, replace the plates.
(1) Use brake cleaner to clean the pad support plate's pad and cylinder mounting contact surface. Inspect for deformation, cracks, rust and foreign matter that is difficult to remove.
(2) Use brake cleaner to clean the cylinder mounting's pad support plate contact surface. After installing the pad support plate to the cylinder mounting, inspect for looseness and deformation.
(3) After installing the pad, inspect if the pad falls off easily (due to the spring force of the pad support plate).
4. CHECK DISC THICKNESS

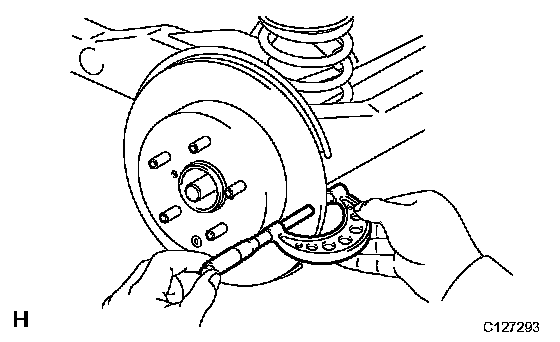

(a) Using a micrometer, measure the disc thickness.
Standard thickness: 12.0 mm (0.472 inch)
Minimum thickness: 10.5 mm (0.413 inch)
If the disc thickness is less than the minimum, replace the disc.
5. CHECK DISC RUNOUT
(a) Check the bearing backlash and axle hub deviation.
(b) Tighten the disc with the 3 hub nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
(c) Using a dial indicator, measure the disc runout 10 mm (0.39 inch) from the outer edge of the disc.
Maximum disc runout: 0.15 mm (0.0059 inch)
If the runout is greater than the maximum, change the installation positions of the disc and axle so that the runout will become minimal.
If the runout is greater than the maximum even when the installation positions are changed, grind the disc.
If the disc thickness is less than the minimum, replace the disc.
(d) Remove the 3 hub nuts.
