Diagnosis System
DIAGNOSIS SYSTEM1. DESCRIPTION
The ECM controls the function of cruise control on this vehicle. Data of the cruise control or DTC can be read from the DLC3 of the vehicle. When trouble occurs with cruise control, check that the CRUISE main indicator does not come on but DTC inspection is performed. Therefore, when there seems to be a problem with the cruise control, use the intelligent tester (with CAN VIM) or SST to check and troubleshoot it.
2. CHECK DLC3
a. The ECM uses the ISO 15765-4 for communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.
If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.
HINT: Connect the cable of the intelligent tester (with CAN VIM) to the DLC3, turn the ignition switch ON and attempt to use the tester. If the display indicates that a communication error has occurred, there is a problem either with the vehicle or with the tester.
- If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the tester is connected to another vehicle, the problem may be in the tester itself. Consult the Service Department listed in the tester's instruction manual.
3. CHECK INDICATOR
a. Turn the ignition switch ON.

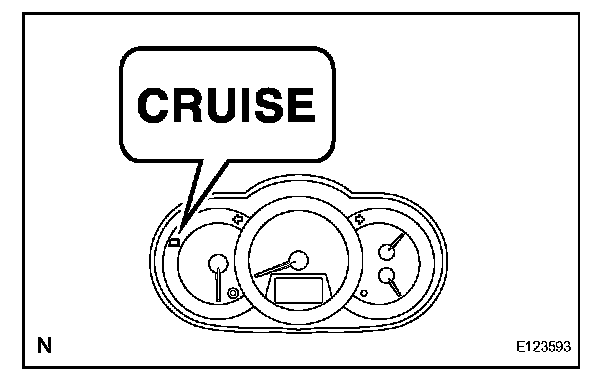

b. Check that the CRUISE main indicator light illuminates when the cruise control main switch is turned ON, and that the indicator light goes off when the main switch is turned OFF.
HINT:
- If the indicator check result is not normal, proceed to troubleshooting for the Instrument Panel, Gauges and Warning Indicators.
- If a malfunction occurs in the speed sensor or stop light switch, etc. during cruise control driving, the ECM activates the AUTO CANCEL of the cruise control and the CRUISE main indicator light blinks to inform the driver of a malfunction. At the same time, the malfunction is stored in memory as a diagnostic trouble code.
