Inspection

INSPECTION





1. INSPECT INTAKE MANIFOLD
(a) Using a precision straightedge and feeler gauge, measure the warpage of the contact surface of the cylinder head and intake air surge tank.

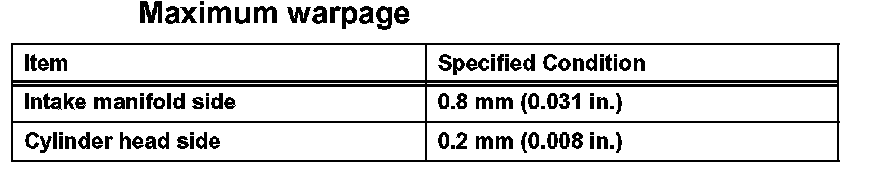

Maximum warpage:

If the warpage is greater than the maximum, replace the manifold.





2. INSPECT EXHAUST MANIFOLD
(a) Using a precision straightedge and feeler gauge, measure the surface contacting the cylinder head for warpage.
Maximum warpage: 0.70 mm (0.0276 inch)
If the warpage is greater than the maximum, replace the manifold.
