Fuel Receiver Gauge Malfunction
Fuel Receiver Gauge MalfunctionDESCRIPTION
The combination meter assembly controls the fuel receiver gauge in accordance with the resistance of the fuel sender gauge that varies depending on the amount of fuel remaining in the fuel tank.
Wiring Diagram:
INSPECTION PROCEDURE
Step 1:

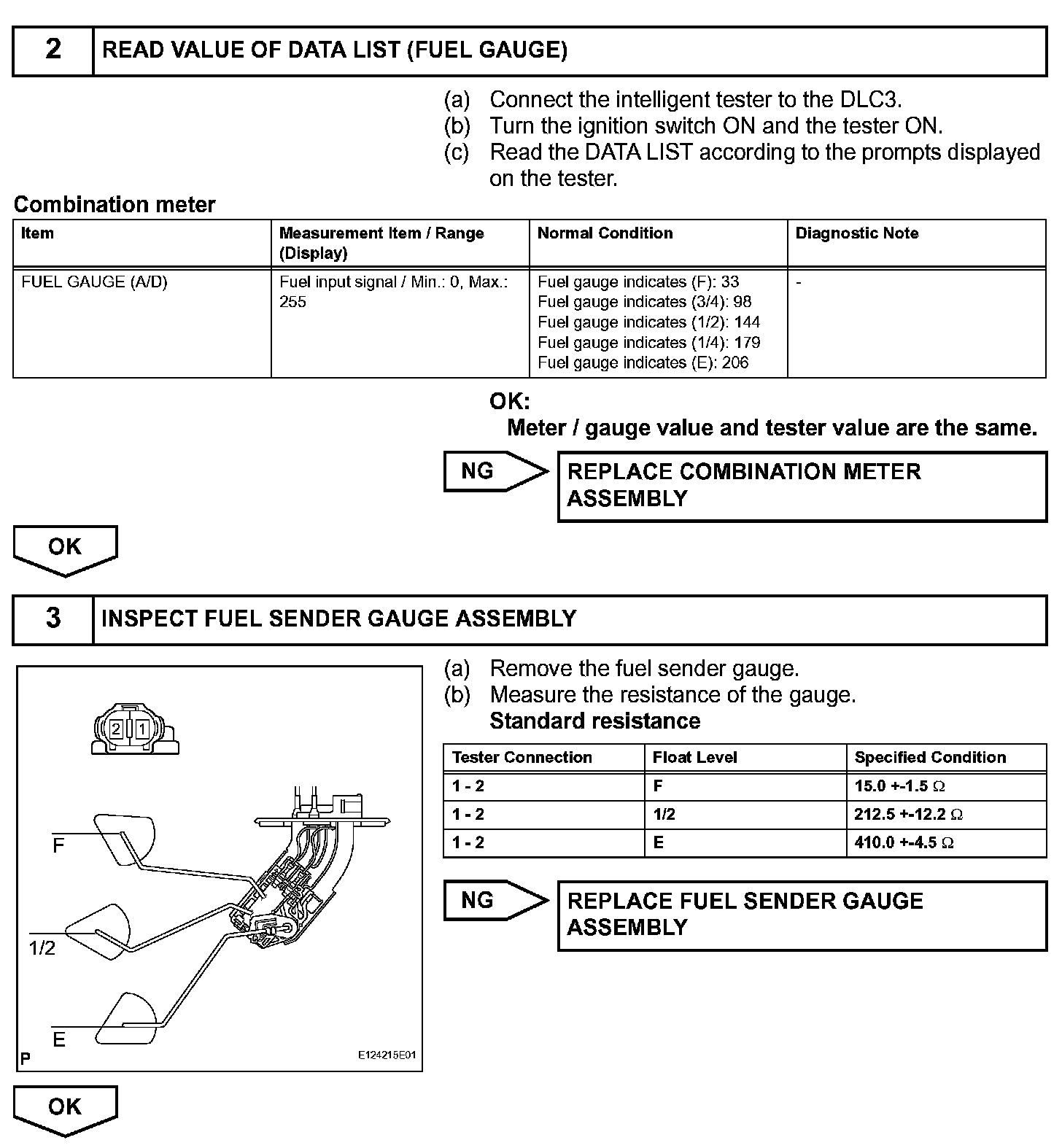

Step 2-3:
Step 4:
