Air Fuel Ratio Sensor

INSPECTION

INSPECT AIR FUEL RATIO SENSOR (for Sensor 1)

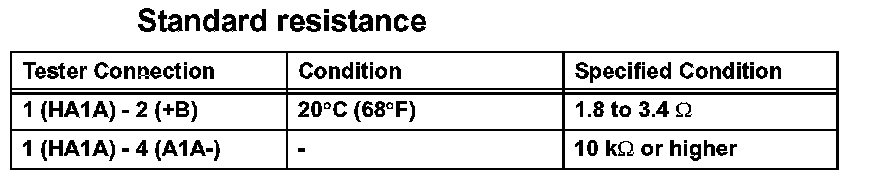

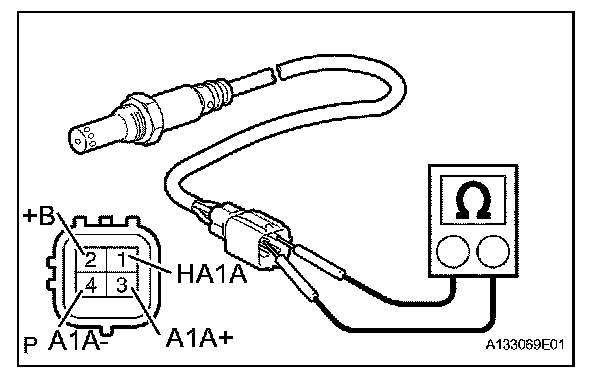

Measure the resistance of the sensor.

If the resistance is not as specified, replace the sensor.
