Heated Oxygen Sensor

INSPECTION

INSPECT HEATED OXYGEN SENSOR (for Sensor 2)

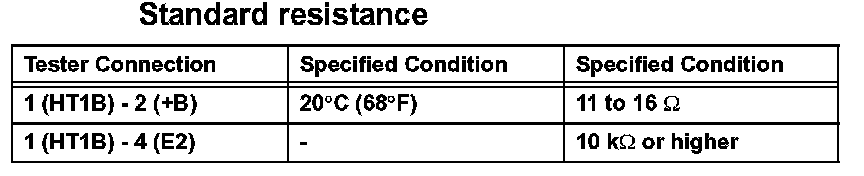

Measure the resistance of the sensor.

If the resistance is not as specified, replace the sensor.
