Remote Up/Down Function does not Operate

Remote Up/Down Function does not Operate

DESCRIPTION
With the ignition switch ON, the power window regulator master switch transmits remote switch signals to the regulator switches of the passenger door power window and rear door power windows. Then, each regulator switch drives its respective power window regulator motor.

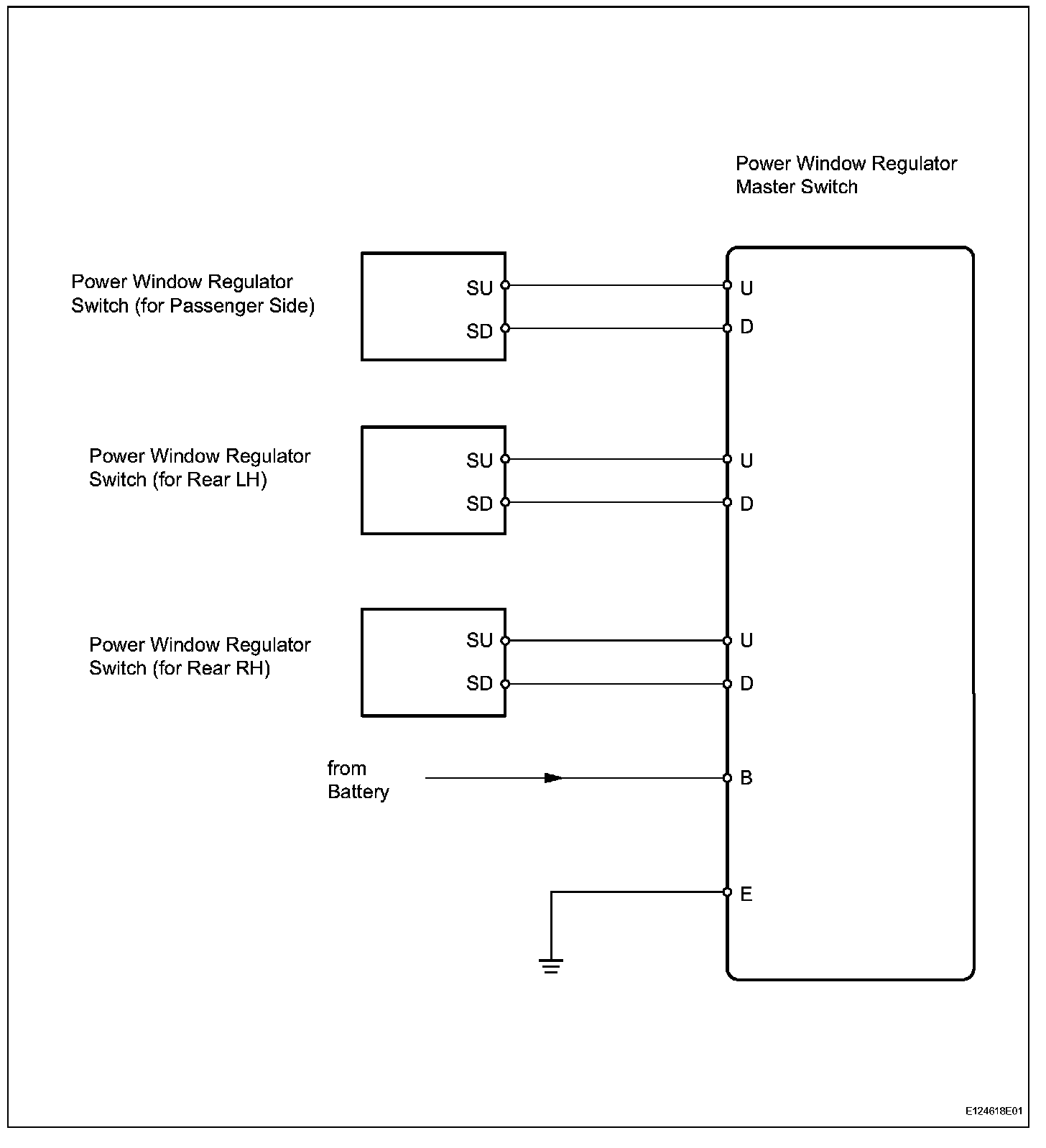

Wiring Diagram:






Step 1-2:




INSPECTION PROCEDURE
