Pinout Values and Diagnostic Parameters

TERMINALS OF ECM
1. CHECK ECM





(a) Measure the voltage of the ECM connector.

HINT:
Each ECM terminal's standard voltage is shown in the table.

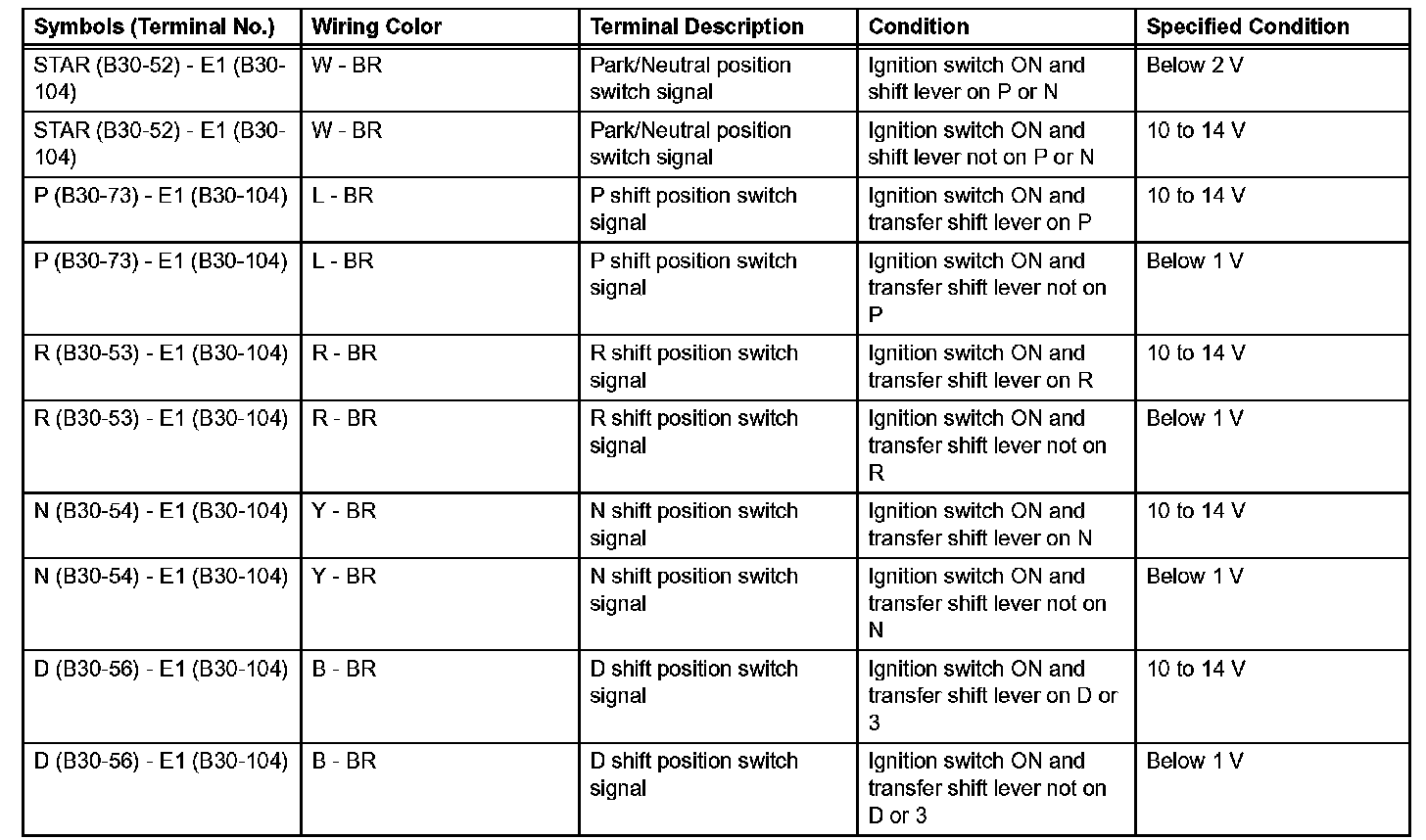

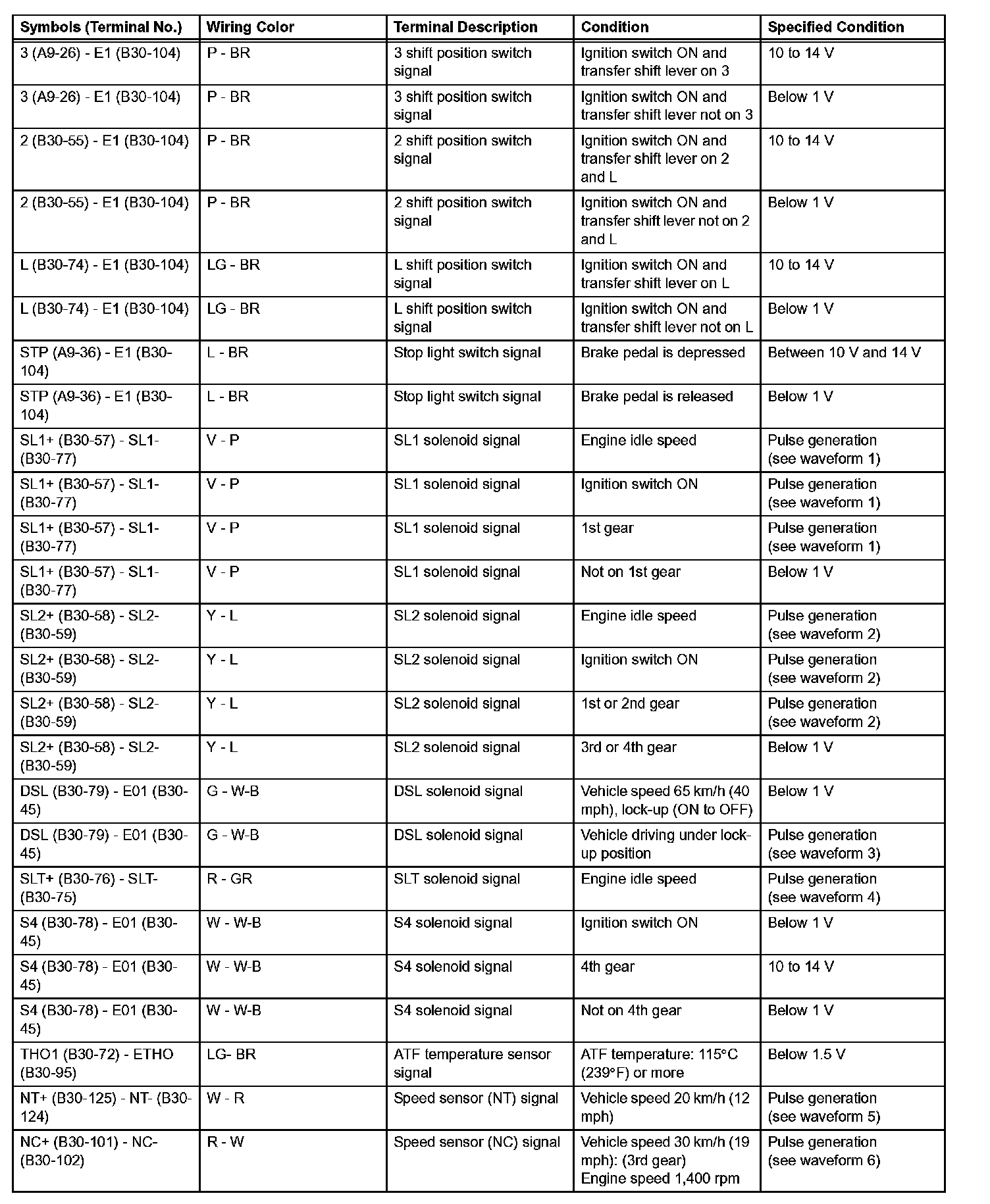

In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition".

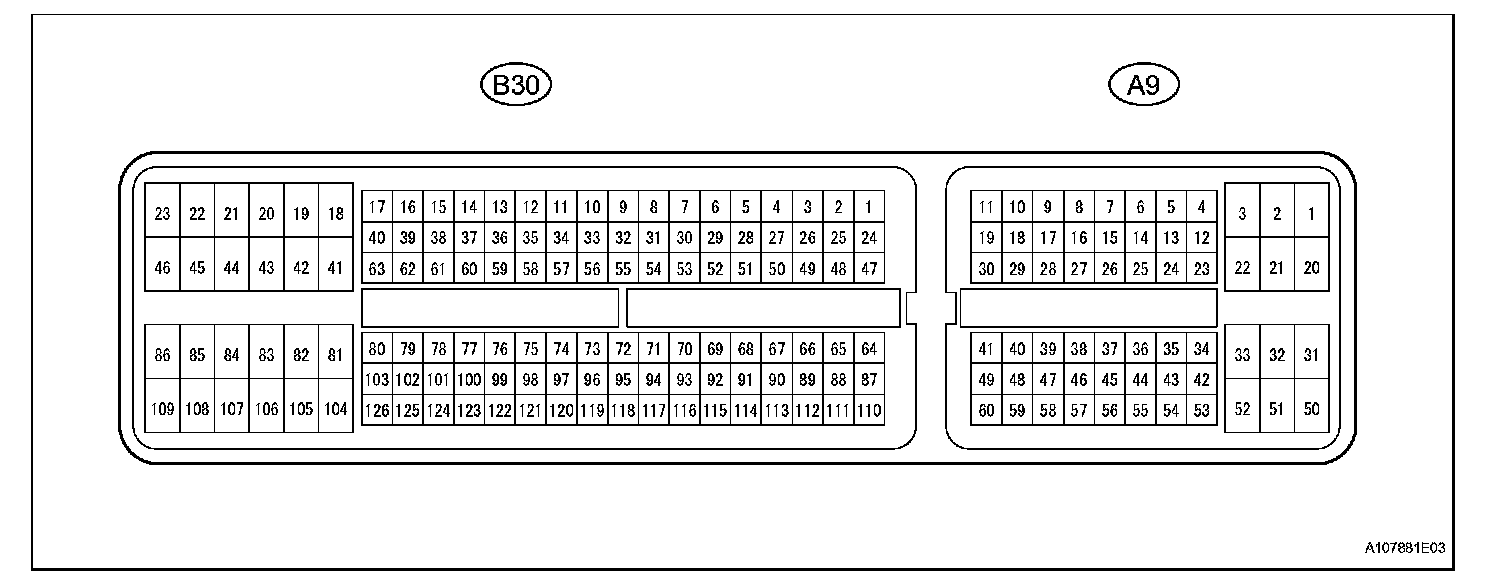

Use the illustration above as a reference for the ECM terminals.

Part 1:

Part 2:

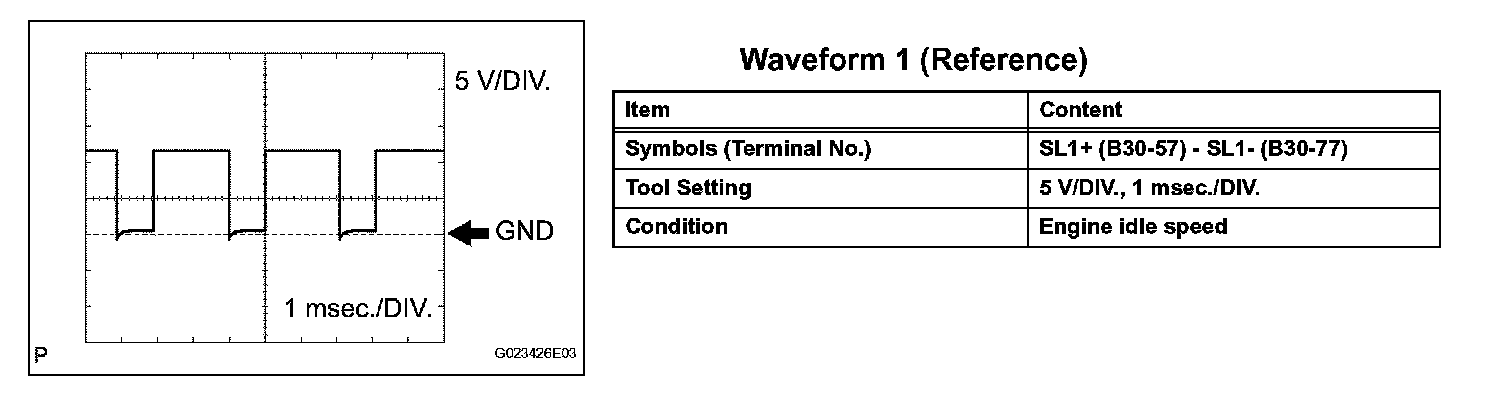

Waveform 1 (Reference):

(b) Using an oscilloscope, check the waveform 1.

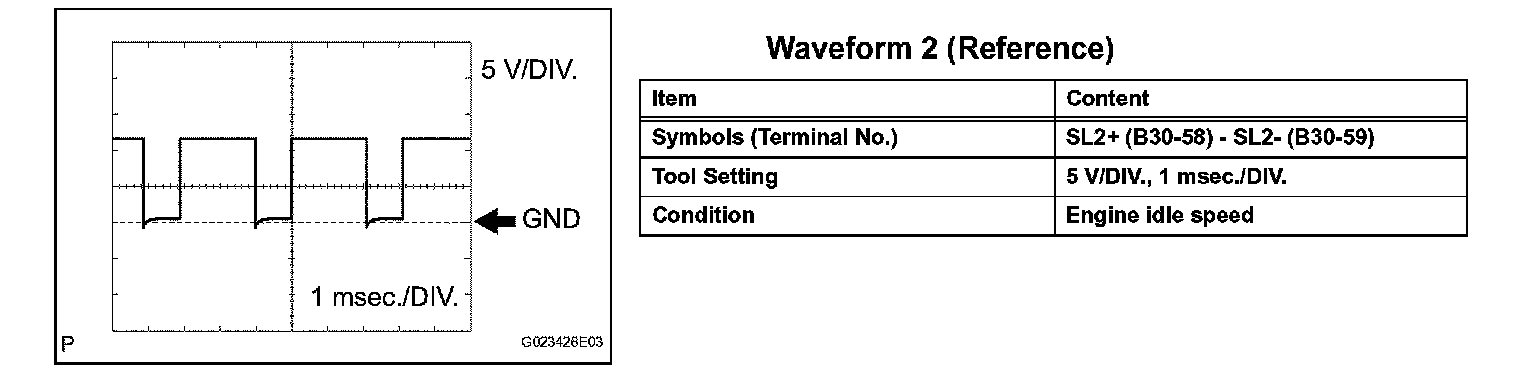

Waveform 2 (Reference):

(c) Using an oscilloscope, check the waveform 2.

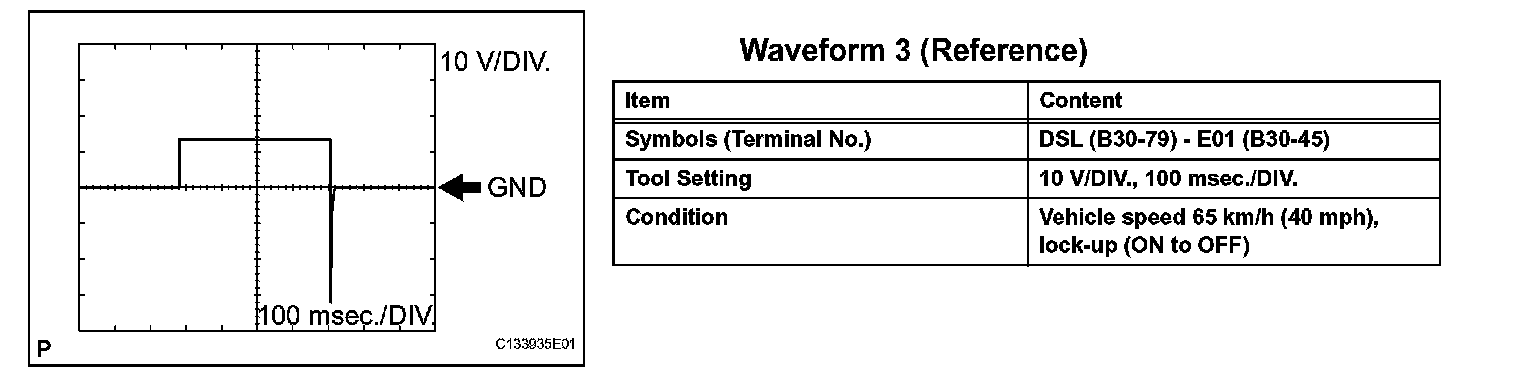

Waveform 3 (Reference):

(d) Using an oscilloscope, check the waveform 3.

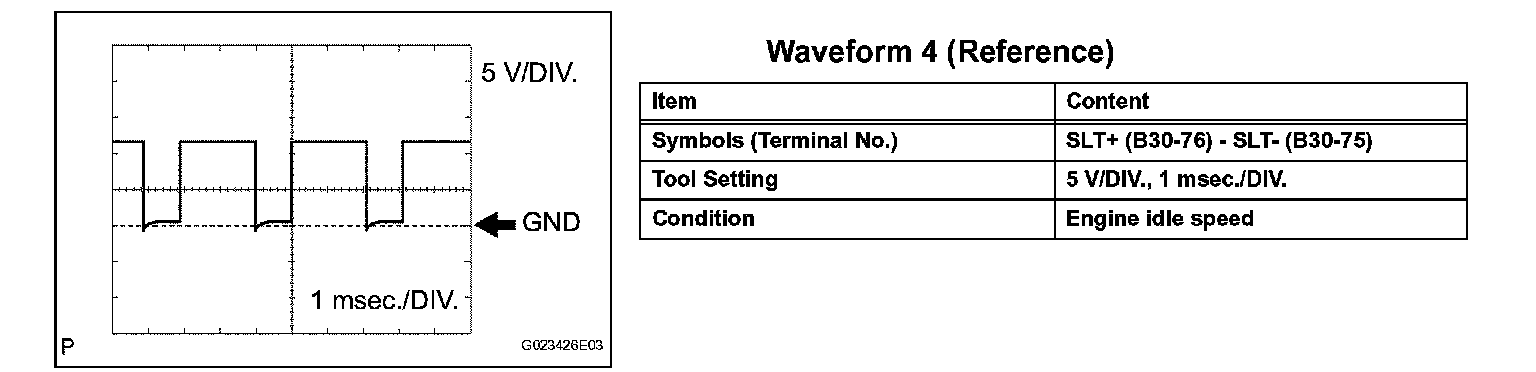

Waveform 4 (Reference):

(e) Using an oscilloscope, check the waveform 4.

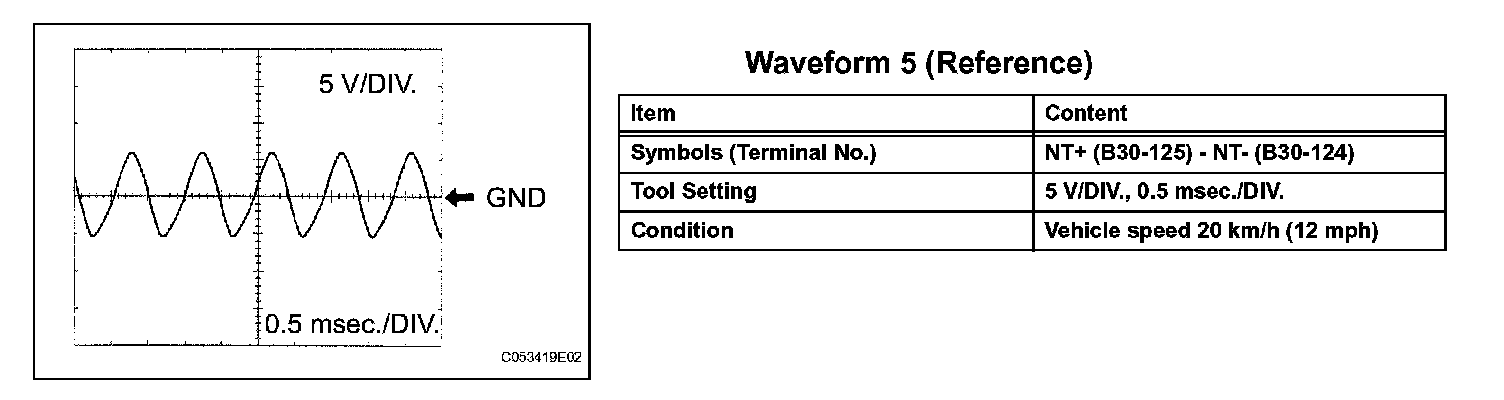

Waveform 5 (Reference):

(f) Using an oscilloscope, check the waveform 5.

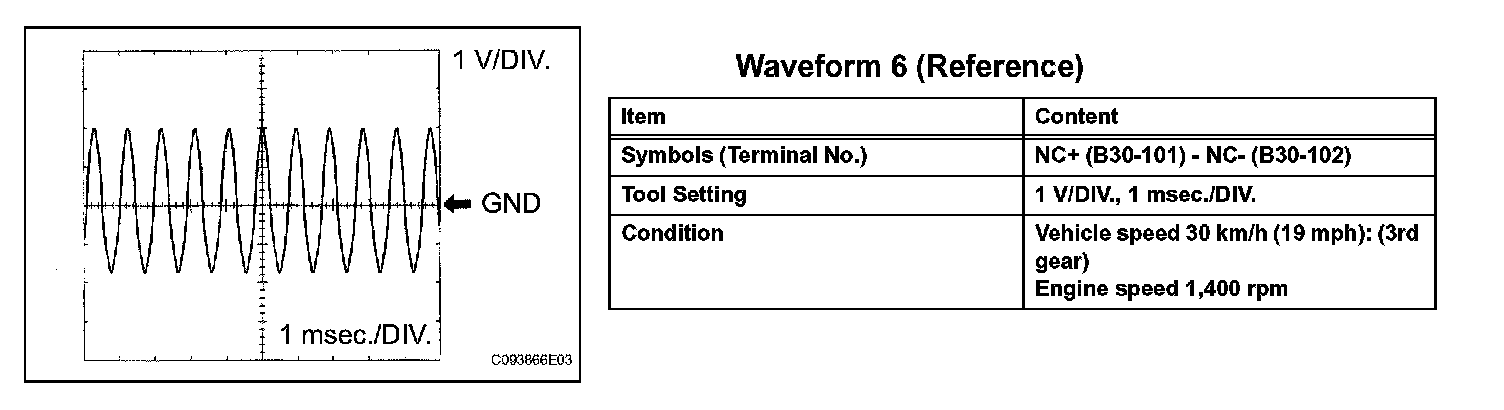

Waveform 6 (Reference):

(g) Using an oscilloscope, check the waveform 6.
