Air Conditioning Control Assembly (for Automatic Air Conditioning System):

Air Conditioning Control Assembly (for Automatic Air Conditioning System)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER
3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER
4. REMOVE RADIO RECEIVER
5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

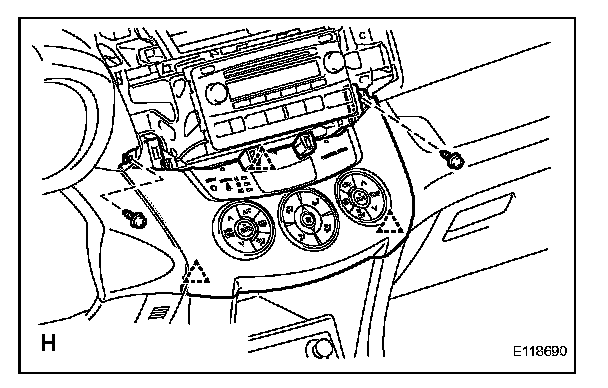

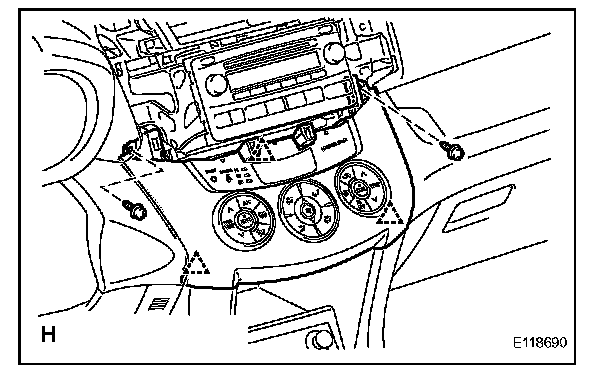

a. Remove the 2 screws.
b. Using a screwdriver, detach the 3 clips.

HINT: Tape the screwdriver tip before use.

c. Connect the connectors and remove the air conditioning control.

INSTALLATION

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY




a. Connect the connectors.
b. Attach the 3 clips to install the air conditioning control.
c. Install the 2 screws. 2. INSTALL RADIO RECEIVER

3. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER
4. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. CHECK SRS WARNING LIGHT

a. Check the SRS warning light.
