Ignition Coil: Service and Repair

REMOVAL

1. REMOVE THE V-BANK COVER
2. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
3. REMOVE IGNITION COIL.

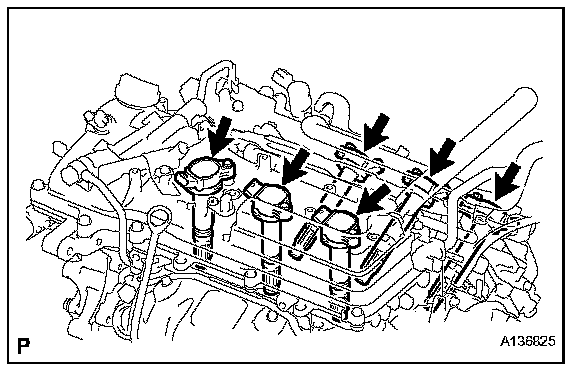

a. Disconnect the 6 ignition coil connectors.
b. Remove the 6 bolts and 6 ignition coils.

INSTALLATION

1. INSTALL IGNITION COIL




a. Install the 6 ignition coils with the 6 bolts.

Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)

b. Connect the 6 ignition coil connectors.

2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
3. INSTALL THE V-BANK COVER
