Intake Manifold

Intake Manifold

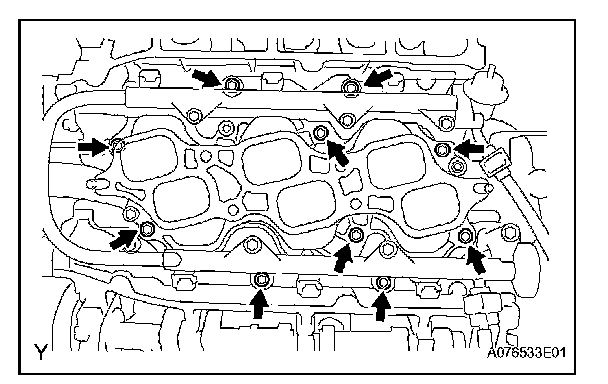

Install and uniformly tighten the 6 bolts and 4 nuts in several passes.
Torque 21 Nm (214 kgf-cm, 15 ft. lbs.)
Intake air surge tank assembly x Intake manifold 18 Nm (184 kgf-cm, 13 ft. lbs.)
Intake air surge tank assembly x Intake manifold 18 Nm (184 kgf-cm, 13 ft. lbs.)
Throttle body x Intake air surge tank assembly 10 Nm (102 kgf-cm, 7 ft. lbs.)
Intake manifold x Cylinder head sub-assembly 21 Nm (214 kgf-cm, 15 ft. lbs.)
Intake air surge tank x Intake manifold
5 mm hexagon wrench 18 Nm (184 kgf-cm, 13 ft. lbs.)
for Bolt 21 Nm (214 kgf-cm, 15 ft. lbs.)
for Nut 16 Nm (163 kgf-cm, 12 ft. lbs.)
