System Specifications
Crankshaft PulleyTorque 250 Nm (2,549 kgf-cm, 184 ft. lbs.)
Timing Chain Tensioner
NO. 1 CHAIN TENSIONER ASSEMBLY

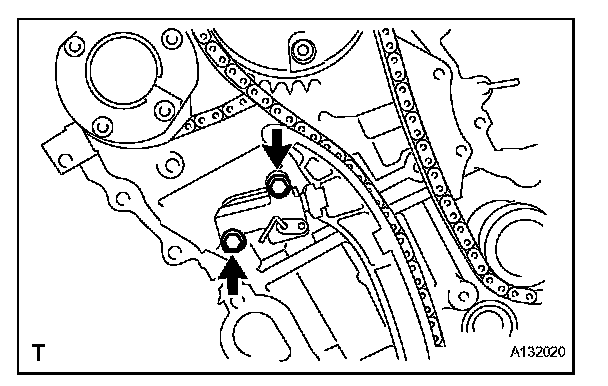

Install the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft. lbs.)
Timing Cover
No.1 front engine mounting bracket LH x Timing chain cover 54 Nm (551 kgf-cm, 40 ft. lbs.)
No.2 idler pulley x Timing chain cover 43 Nm (438 kgf-cm, 32 ft. lbs.)
No.2 timing gear cover x Timing chain cover 6.0 Nm (61 kgf-cm, 53 inch lbs.)
V-ribbed belt tensioner x Timing chain cover 43 Nm (438 kgf-cm, 32 ft. lbs.)
No. 2 engine mounting stay RH x Timing chain cover 21 Nm (214 kgf-cm, 15 ft. lbs.)
Front No. 1 engine mounting bracket x Timing chain cover 54 Nm (551 kgf-cm, 40 ft. lbs.)
Timing chain cover x Cylinder block
Area 1, 2 bolt 21 Nm (214 kgf-cm, 15 ft. lbs.)
Area 3 bolt, nut 21 Nm (214 kgf-cm, 15 ft. lbs.)
Area 4 bolt A 43 Nm (438 kgf-cm, 32 ft. lbs.)
Area 4 except bolt A 21 Nm (214 kgf-cm, 15 ft. lbs.)
