Data List

DATA LIST

HINT: According to the DATA LIST displayed by the intelligent tester, you can read the values of the switches, sensors, actuators and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the methods to shorten labor time.

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch ON.

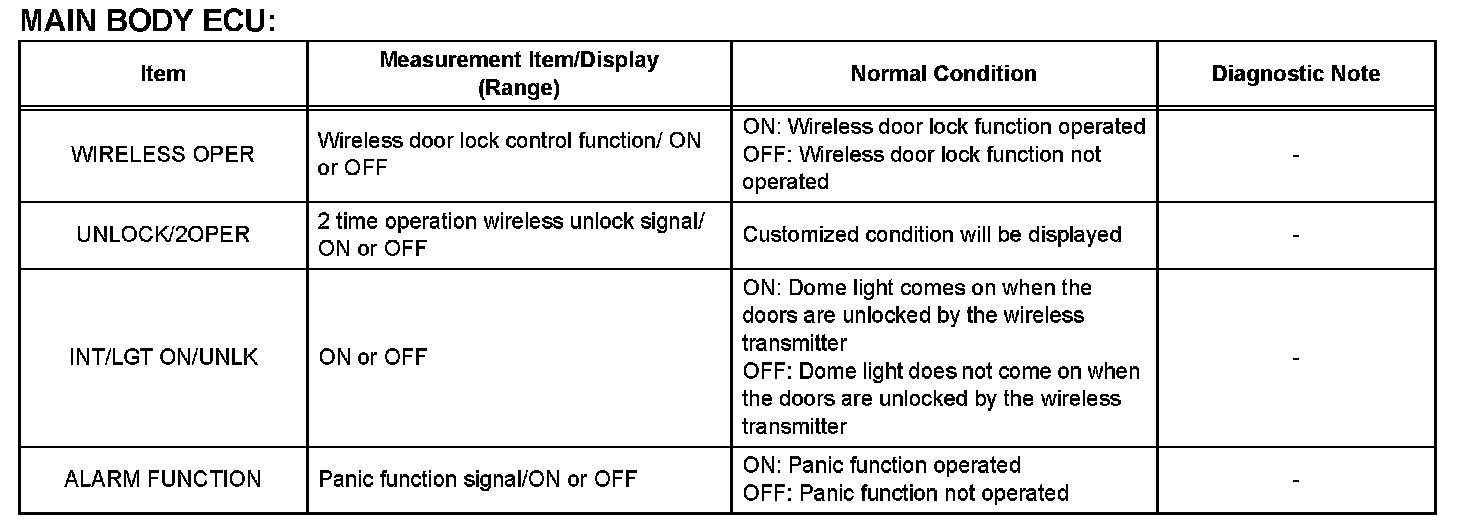

c. According to the display on the tester, read the "DATA LIST".
