Electronic Brake Control Module

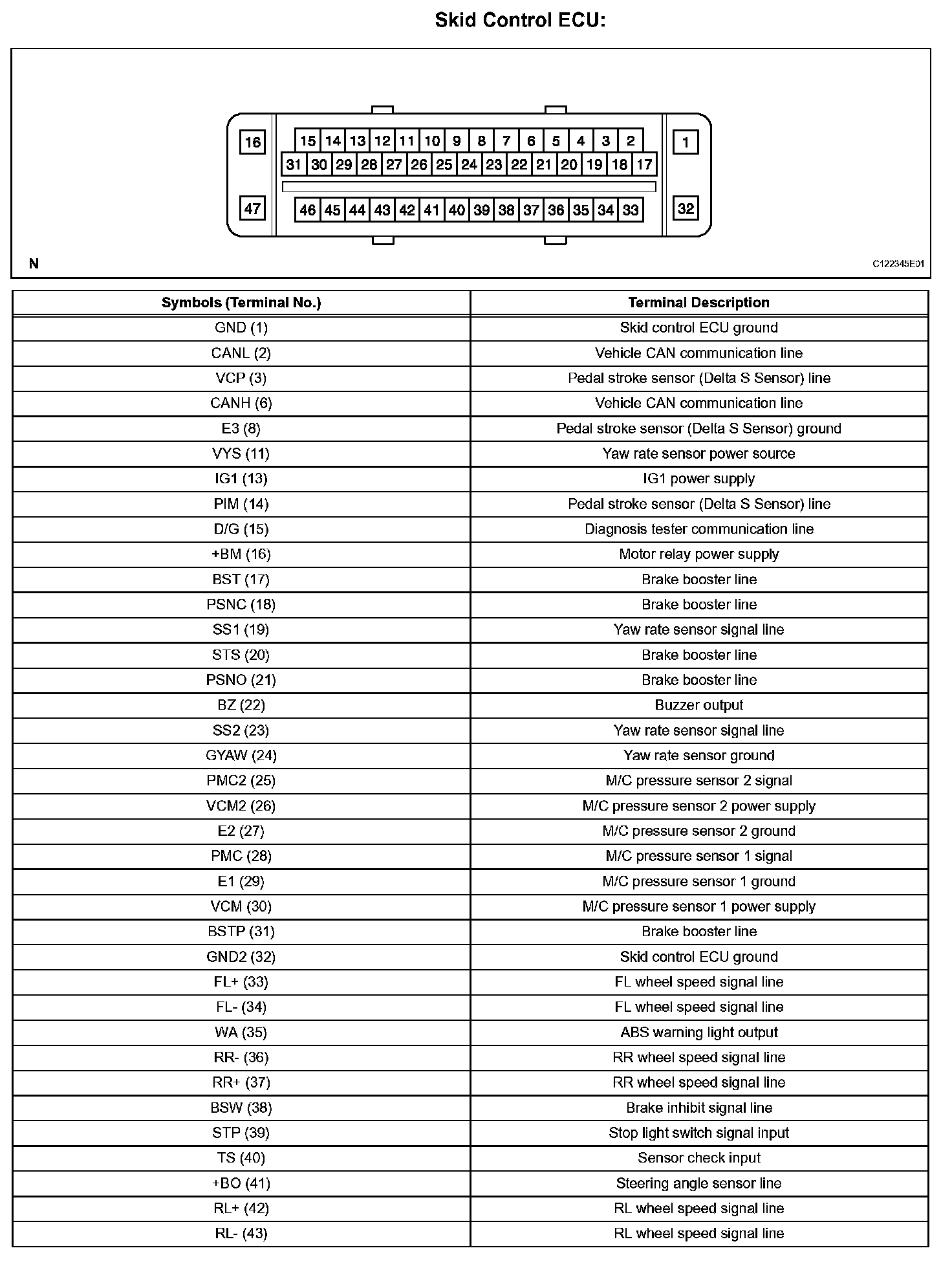

Terminals Of Control Module/Pinouts - Skid Control ECU (Part 1):

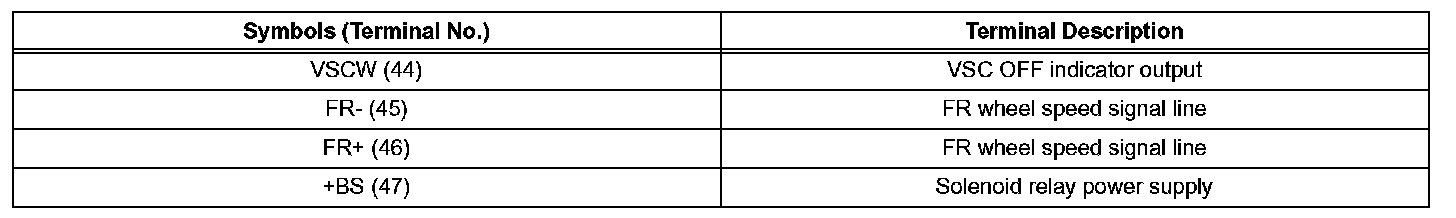

Terminals Of Control Module/Pinouts - Skid Control ECU (Part 2):

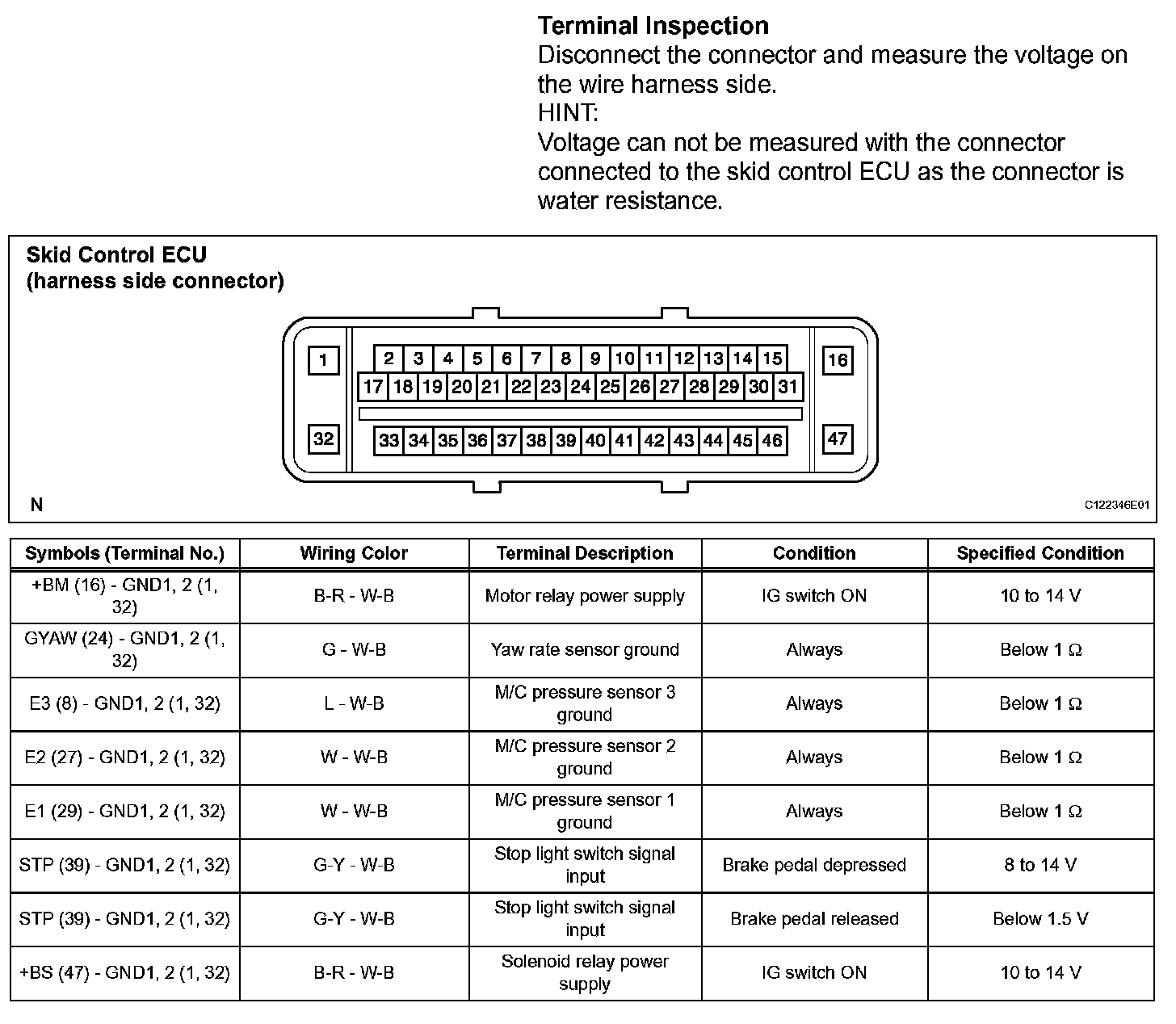

Terminals Of Control Module/Pinouts - Terminal Inspection:

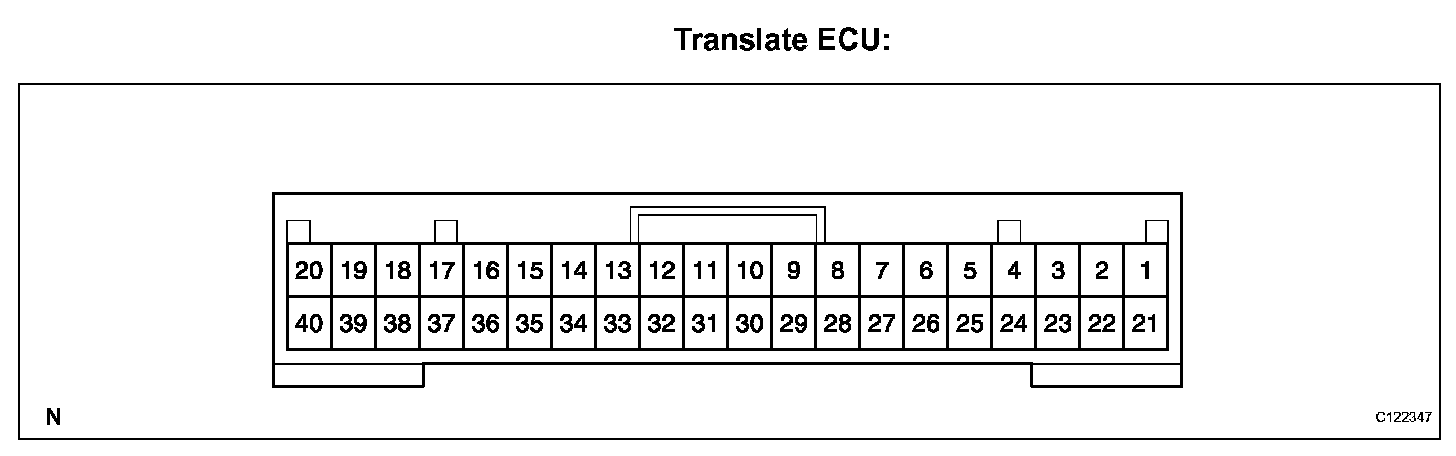

Terminals Of Control Module/Pinouts - Translate ECU (Part 1):

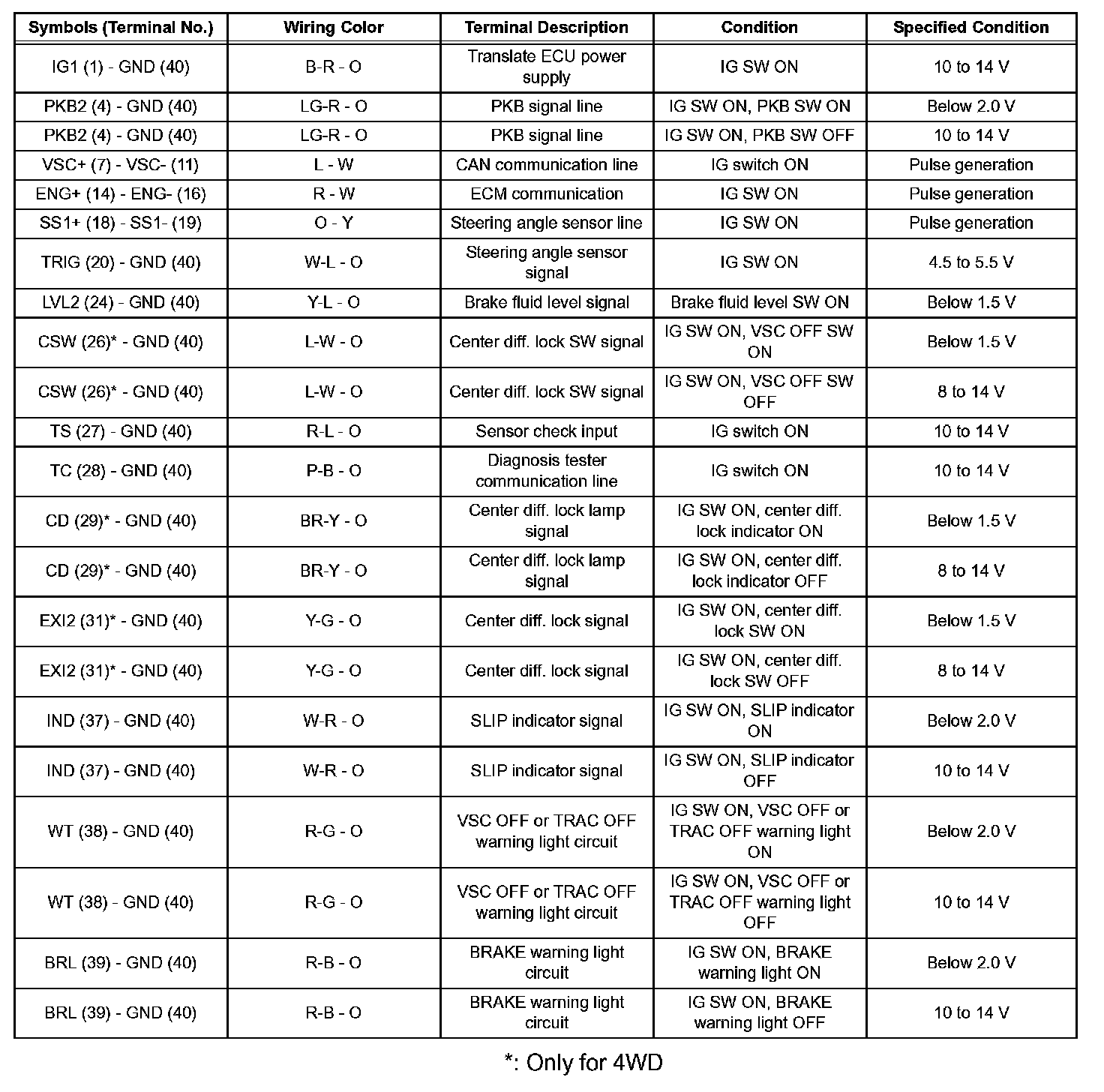

Terminals Of Control Module/Pinouts - Translate ECU (Part 2):
