Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Air Injection

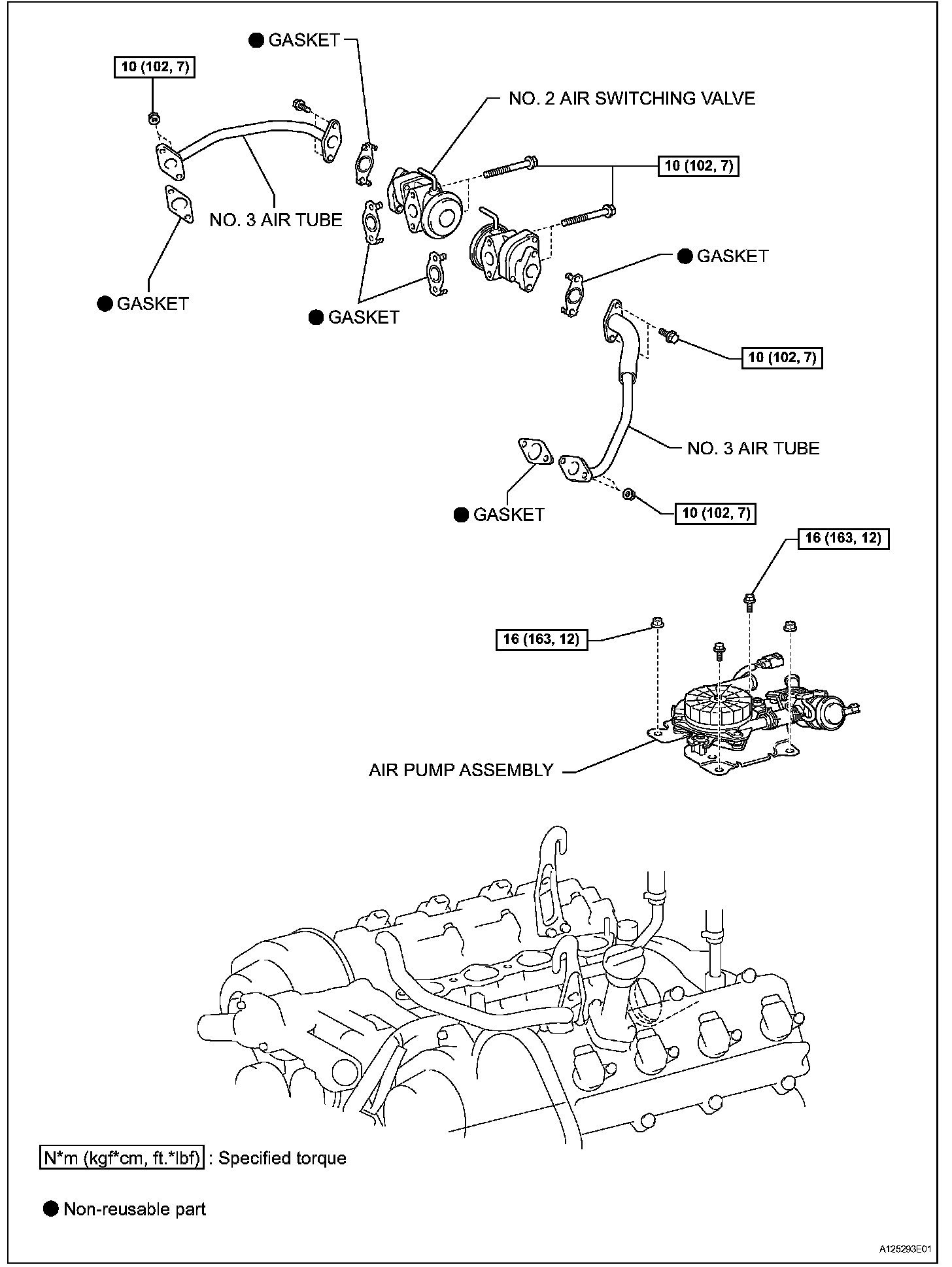

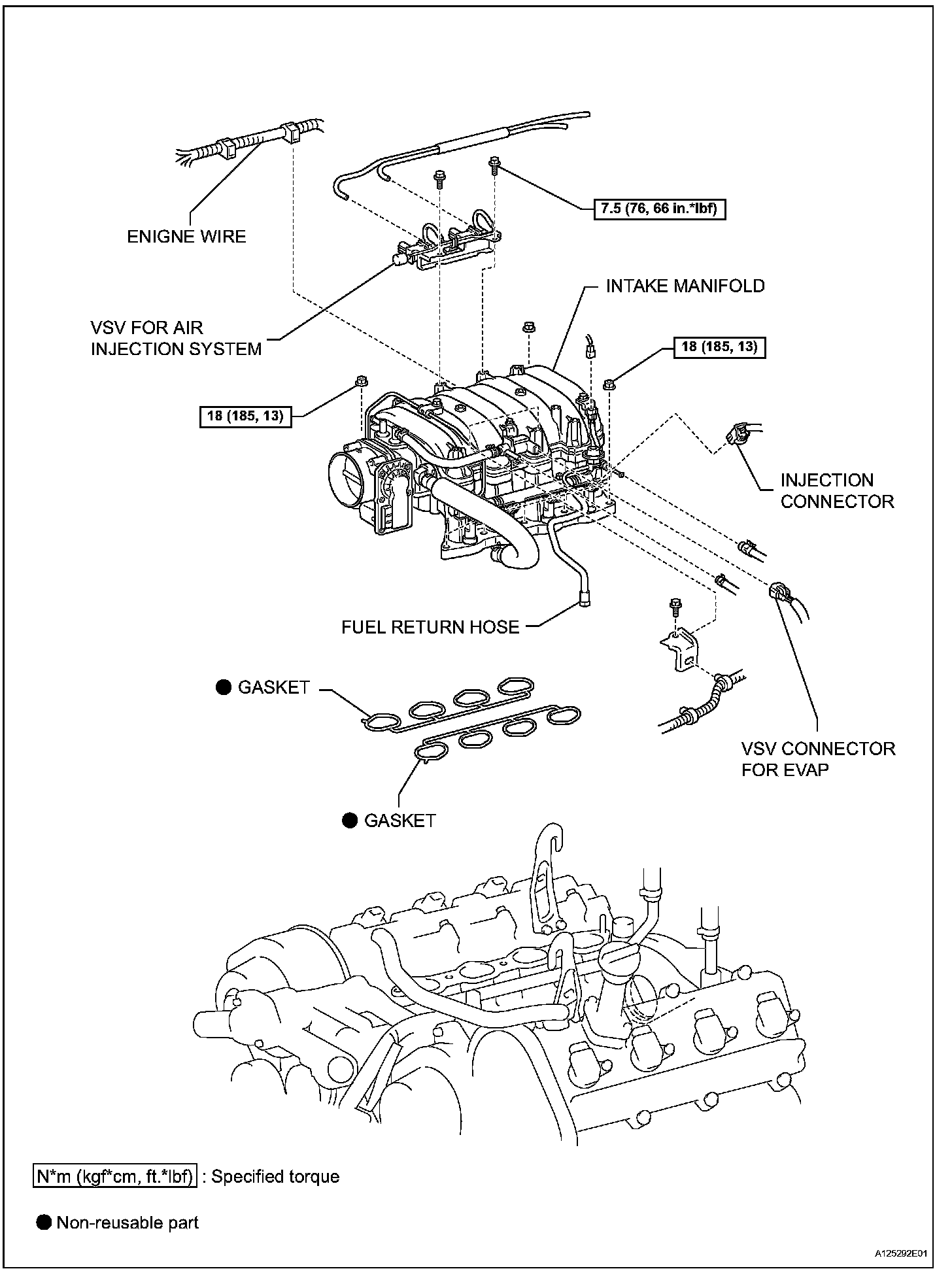

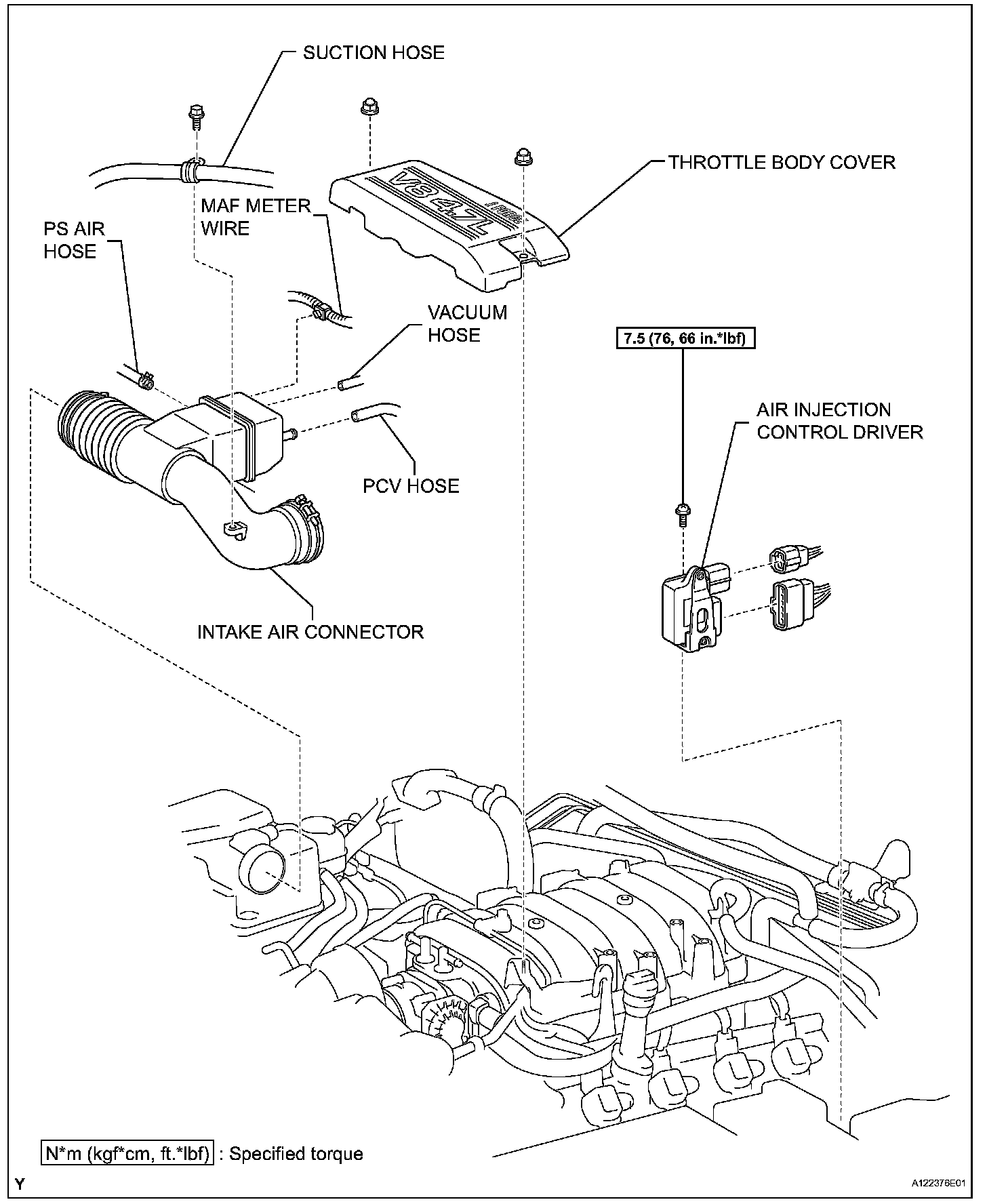

Air Injection

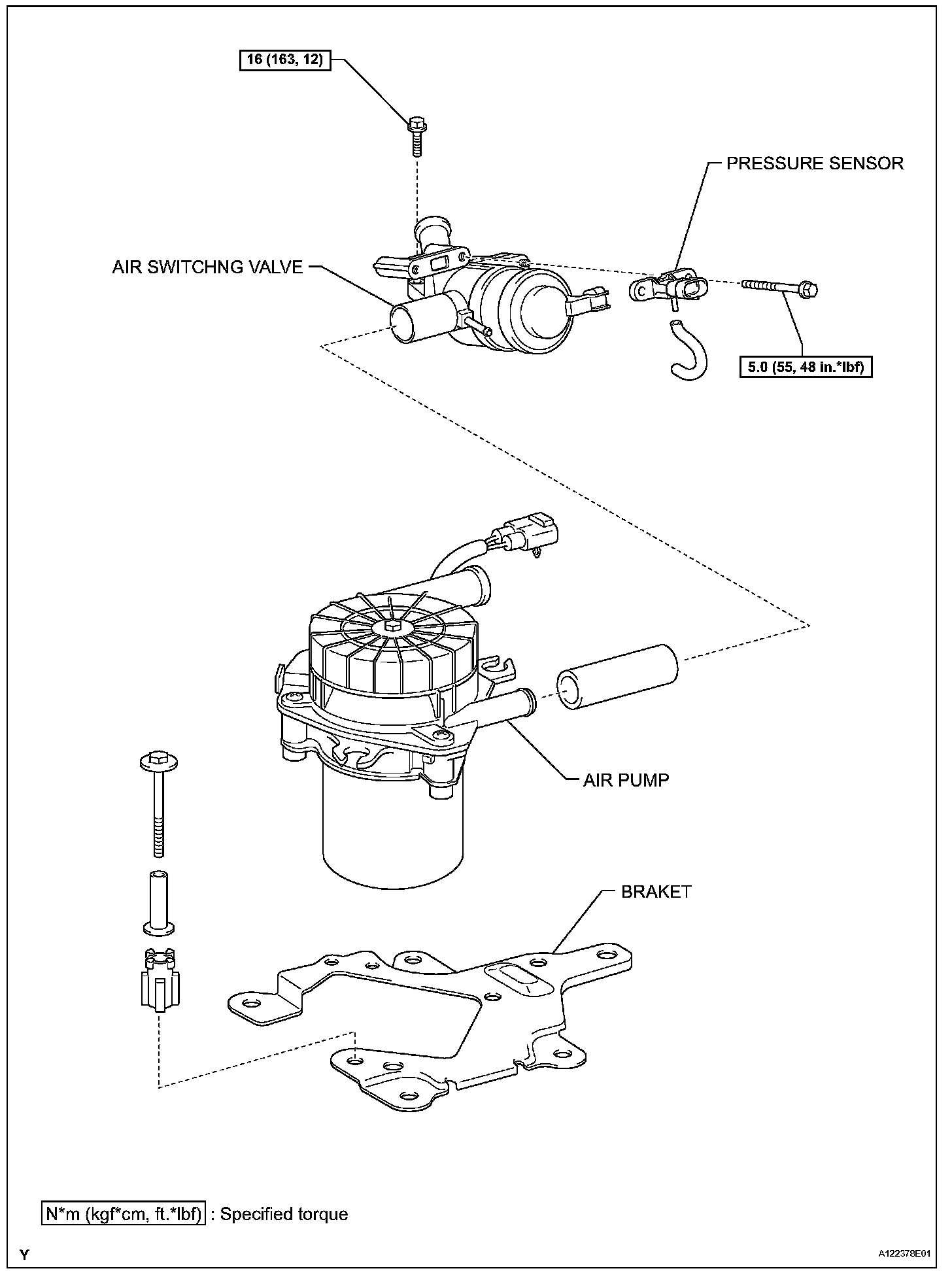

Air Pump:
Air Pump:
Air Pump:
Air Pump:
