Solar Sensor: Service and Repair
REMOVAL1. REMOVE SOLAR SENSOR

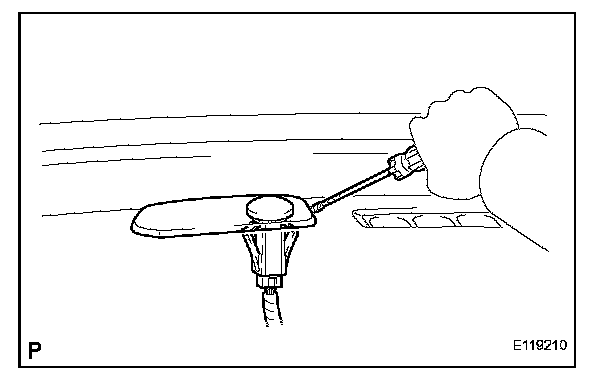

a. Using a screwdriver, pull out the sensor, then disconnect the connector.
HINT: Tape the screwdriver tip before use.
INSTALLATION
Installation is in the reverse order of removal.
1. REMOVE SOLAR SENSOR
a. Using a screwdriver, pull out the sensor, then disconnect the connector.
HINT: Tape the screwdriver tip before use.
INSTALLATION
Installation is in the reverse order of removal.
